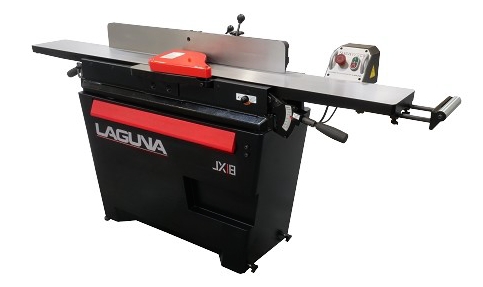

Laguna Model JX\8 ShearTec Jointer 3 Phase

• Laguna Model JX\8 ShearTec Jointer 3 Phase
• All-new for 2021, the Laguna JX\8 ShearTec II is loaded with highly desirable features to make jointing safer and more enjoyable.
• Machine Specifications
• Motor: 220v 3HP 1phase 60hz/12 Amp.
• CSA: Yes
• Bed Size: 8 x 72"
• Infeed Table Pull-out Extension: 8"
• Rabbeting Capacity: 1/2"

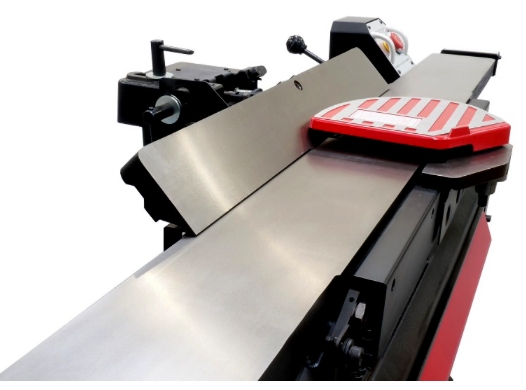

• Fence Size: 38"x 4-3/4" Cast Iron
• Fence Tilt: ±45/90°
• Max. Depth of Cut: 1/8"
• Table height from floor: 31"
• Safety bar shut-off: Yes
• Bracket to mount Light: No
• 110v outlet for light: No
• Bracket to mount Feeder: No
• Dust Port Diameter: 4"
• Cutterhead Insert #: 54 x 4-sided Carbide, 6 Row
• Cutterhead RPM: 5500
• Cutterhead Diameter: 3-1/8"
• Bed Adjustment: Parallelogram
• Built-in infeed extend plastic roller 8"
• Magnetic Switch: Yes (B/W)
• Plug NEMA 6-20P
