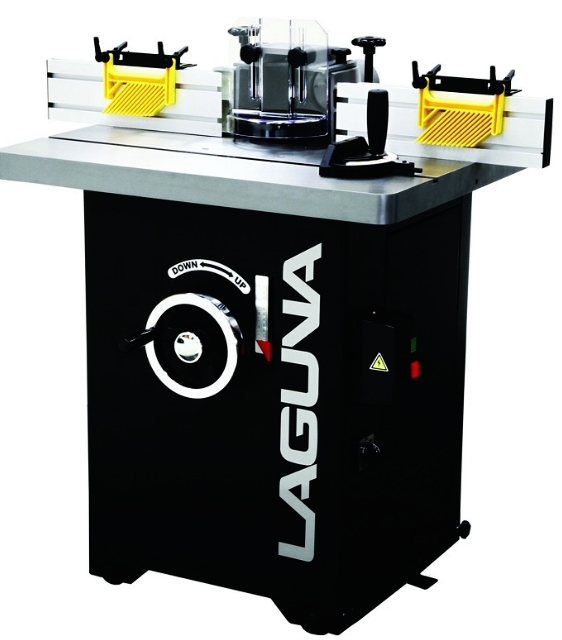

Laguna Model Compact Shaper

• Laguna Model Compact Shaper
• The new Compact Shaper from Laguna is already regarded as best in class. Impressive precision fence and wide-range RPM make it a versatile investment for any pro. The fit and finish on this world class machine is incredible.You will be hard pressed to find a better value than the Compact Shaper: 4 speeds, generous sized table, wheels built right in. Easy spindle lock makes tool changes a snap. One of the most impressive features is the speed change. A simple pull of a handle compresses the distance from the spindle to the pulley, changing speeds along the way. Another outstanding detail is the flat poly-groove belt which transfers more power with less vibration; something you won t find in this price range anywhere else.
• Machine Specifications
• Motor: 3HP, 1 Phase, 220 Volt 60 Hz
• Table Size:32: X 26 1/2"
• Spindle Travel: 4"
• Spindle Sizes: 3/4" & 1 1/4" (Incl.)
• Router Collets: 1/4" & 1/2" (Incl.)
• Capacity under Nut: 4 (1 1/4" Spindle)
• Spindle Speeds: 4000, 6000, 8000, 10000 RPM
• Forward/Reverse: Yes
• Table Opening Diameter: 6 1/4"
• Table Insert Opening Diameter: 2 1/2" , 4 5/16"
• Rotation: Forward/Reverse
• Table T-Slot: Yes
• Fence Size: 4 13/16" x 16"
• Drive Belt: Flat Poly-Groove
• Table Height From Floor: 34"
• Dust Port Diameter: 4"
• Micro Adjustment on Fence: Yes
• Wheel System: Built In
