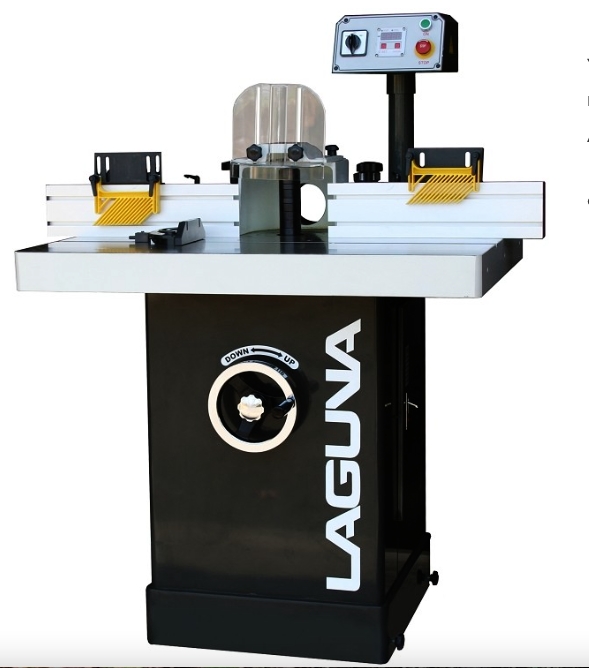

Laguna Model Pro Shaper 5HP

• Laguna Model Pro Shaper 5HP
• The brand new Laguna Pro Shaper combines a precision shaper with features normally found only in much higher priced machines. For starters, the table measures an impressive 31 x 39 and is predrilled to accept most power feeders.The fence has a precision micro-adjustment that is aligned by a solid steel bar. Each full revolution of the turn handle gives an exact 1/16 adjustment to the fence.Inside you will find a heavy-duty motor available in either 5HP 220 volt single phase or 7.5 HP 220 volt three phase.Each offers 3 speeds with a unique quick change poly-groove belt system rather than the traditional V-belt. Digital readout is standard for the spindle height. The Pro Shaper is also equipped with a reversing switch and all controls are mounted with an easy access panel. The fit and finish on this machine is top notch and even includes a wheel kit built right into the base. The Laguna Pro Shaper is designed to give you years of trouble free performance without breaking the bank.
• Machine Specifications
• Motor: 5HP 1 phase 220V 60 HZ
• Table size: 39-5/16 X 31-7/16 X 3-1/2
• Spindle travel: 4
• Spindle Sizes: 3/4 and 1-1/4
• Capacity Under Nut: 6 (for 1-1/4 ) & 4 (for 3/4 )
• Router Collets: 1/4 and 1/2
• Spindle speeds: 5000 / 7000 / 10000 rpm
• Table Opening Diameter: 7-5/16
• Digital Readout: Standard
• Direction: Forward/Reversing Switch
• Fence: Micro Adjustment
