Laguna Model Fusion F1 Tablesaw
Machine Available
Stock #90210N

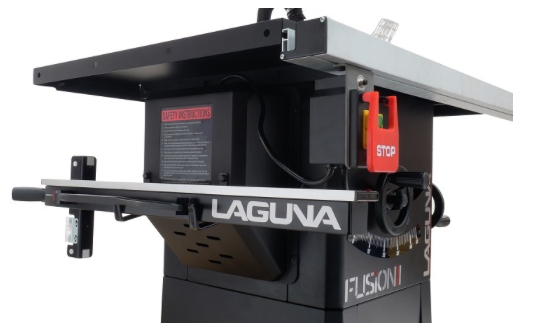

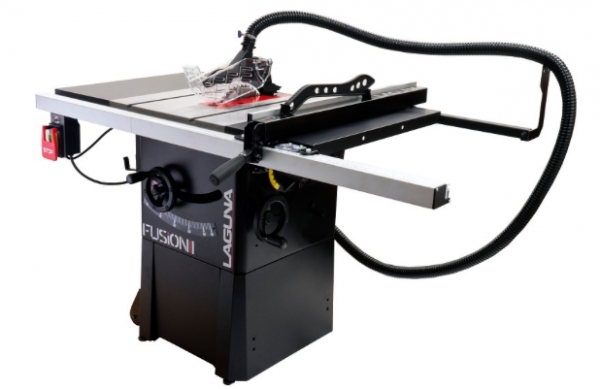

New- Laguna Model Fusion F1 Tablesaw
- FINALLY! An affordable fusion tablesaw. We have packed all the features that our users have come to love in an affordable, sleek, and very precise package. The new Laguna Fusion line was developed for demanding woodworkers. Designed around quality components with an emphasis on superior dust collection enhanced by utilizing over/under collection & sealed bottoms. Permanently lubricated bearings & Acme screws are part of the internal DNA. Maybe the biggest surprise, this is a high quality hybrid saw under $1000!
- Machine Specifications
- Power Requirements:110V-1PH-60HZ*
- Amperage (FLA): 12 AMP
- Motor Power: 1.5 HP
- Motor Speed: 3450 RPM
- Starter Switch: Magnetic
- Plug Included: 5-15
- Circuit Breaker Req.: 110V - 20 AMP
- Receptacle Req.: 5-15
- Rip Capacity: 30"
- Blade Size: 10"
- Vertical Cut Height: 3 1/8”
- 45° Cut Height: 2 1/8"

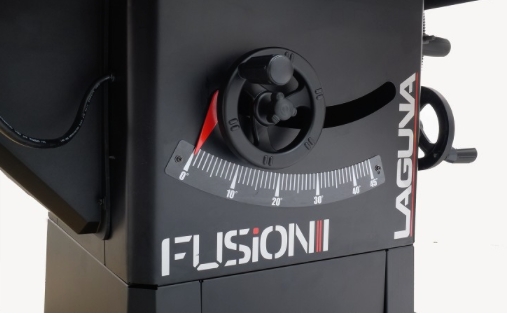

- Tilt: 0-45° Left
- Min. Kerf: 3mm ~1/8" (actual: 0.1875")
- Max. Kerf (Dado Blade): 13/16"
- Arbor Speed: 4000 RPM
- Arbor Diameter: 5/8"
- Mitre Slot: 3/4" to 1" T
- Throat Plate: Zero Clearance Square Die- Cast, w/ adjustment
- Fence: Single Rail Cam Action
