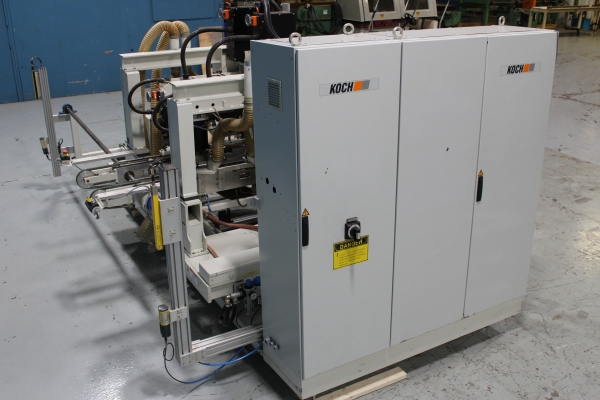

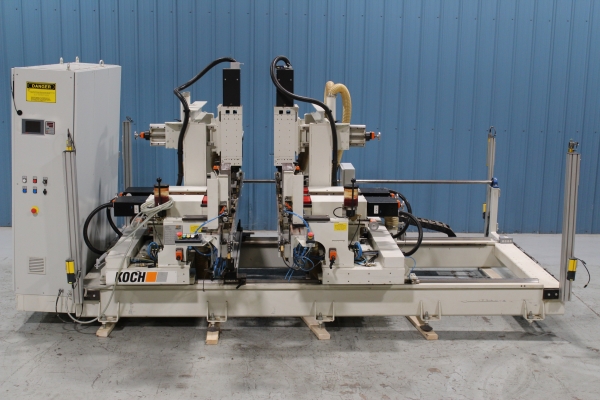

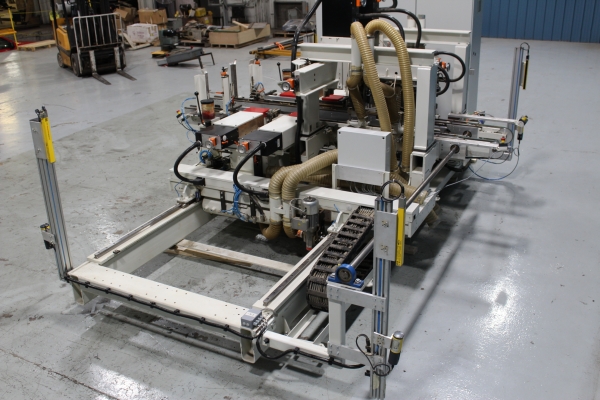

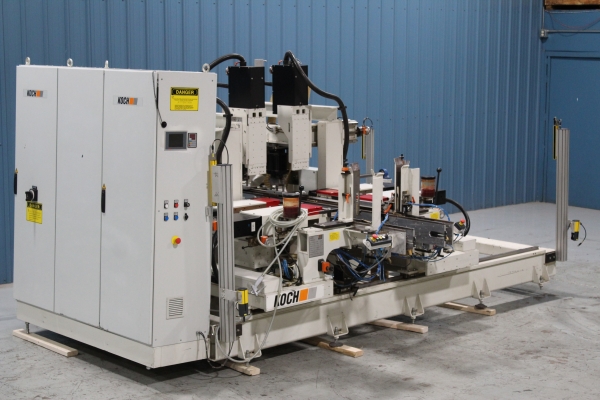

Koch Model BD-A Double Cycle Double-End Automatic Drilling Machine
Machine Available
Stock #2239

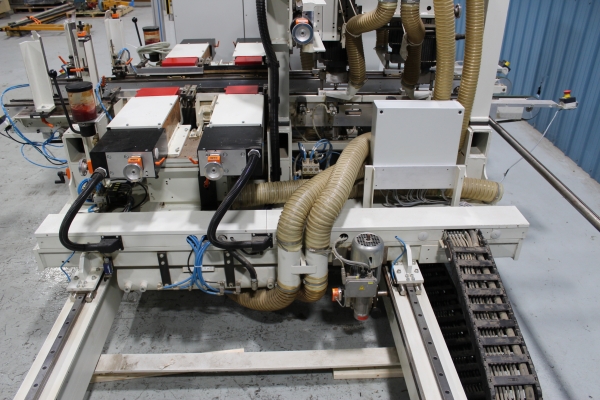

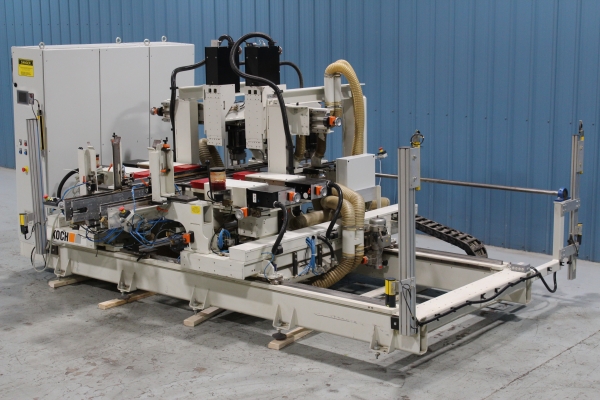

Used- Koch Model BD-A Double Cycle Double-End Automatic Drilling Machine
- Workpiece Length: 250 - 1500mm
- Workpiece Width: 38 - 250mm
- Workpiece Thickness: 16 - 30mm

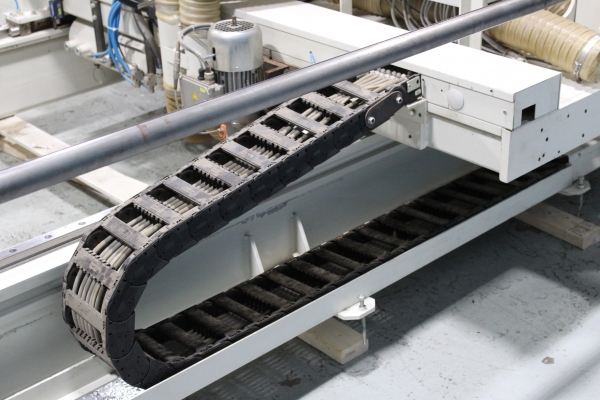

- Right Side Traverses

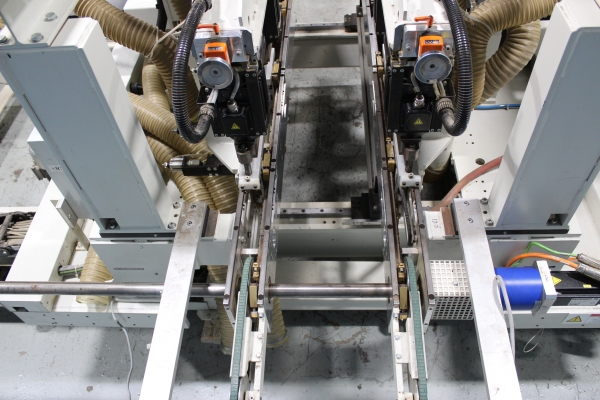

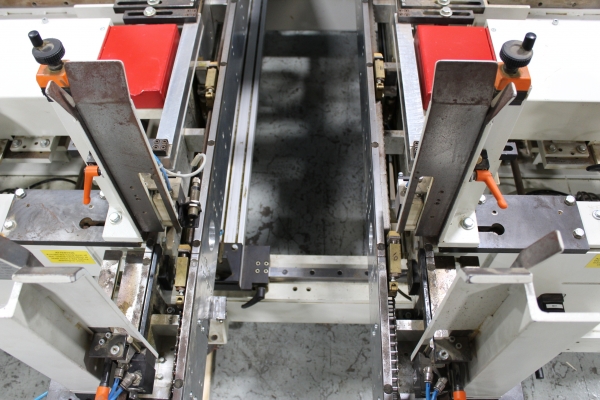

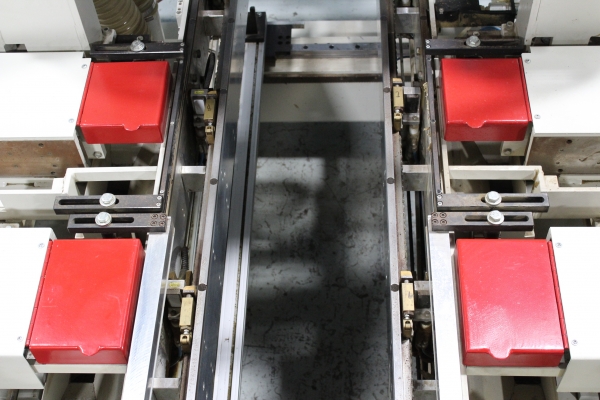

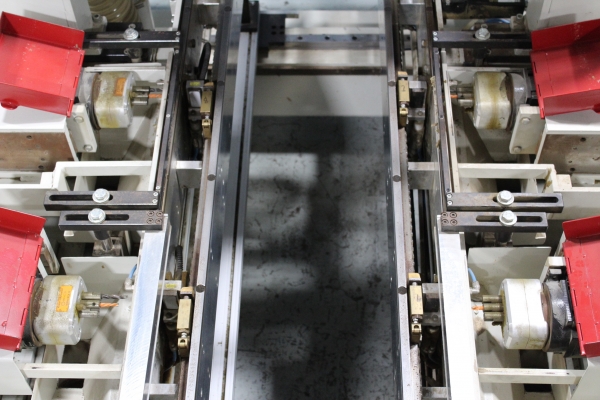

- The workpieces are transported through the working stations by means of a cam transport system
- Stock is machined in a clamped position
- Hopper Feed
- Machines up to 48 Workpieces/Minute

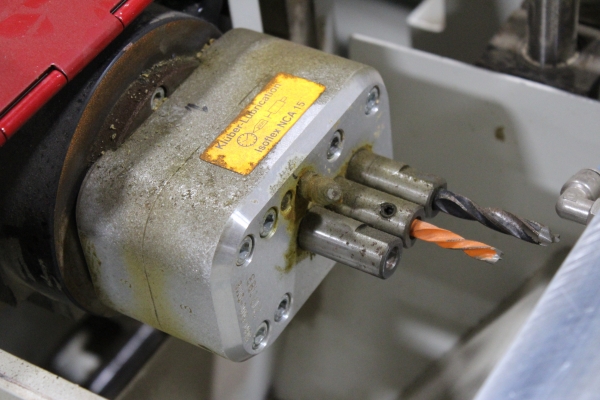

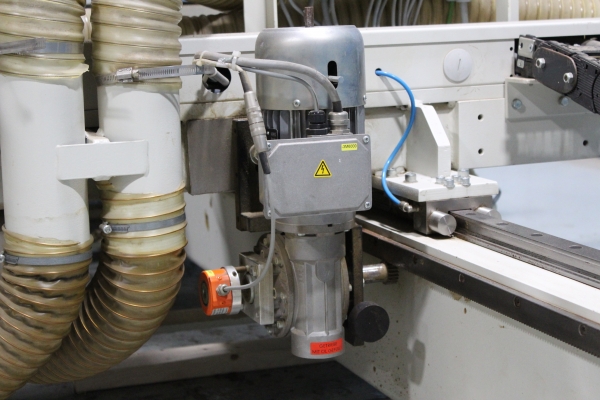

- Station #1: Four Horizontal Drilling Stations Two on Each Side), 3 HP, 3400 RPM, Each with Three Drilling Spindles Spaced at 16mm on-Centers

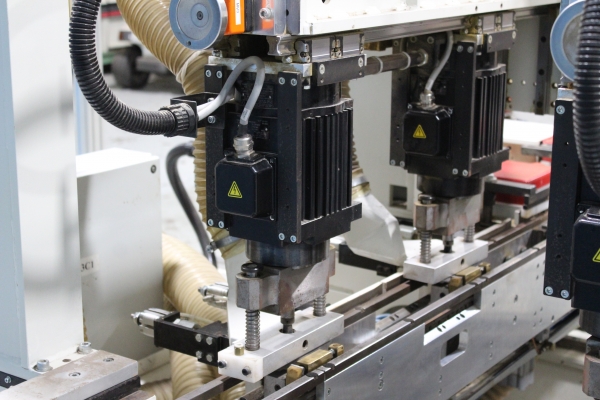

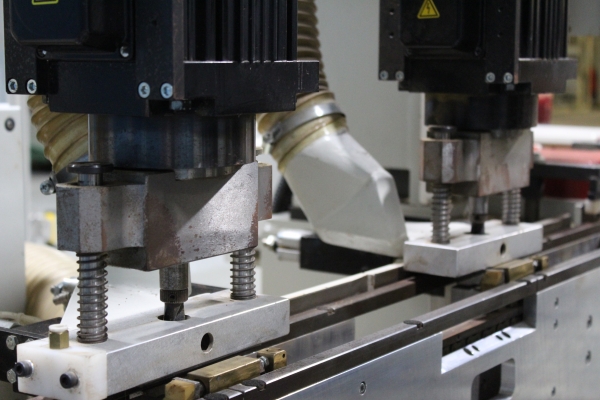

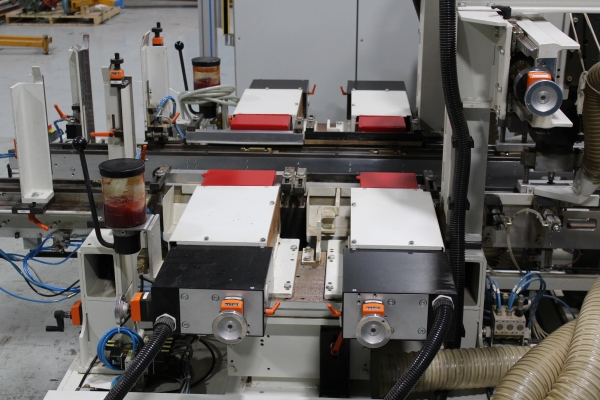

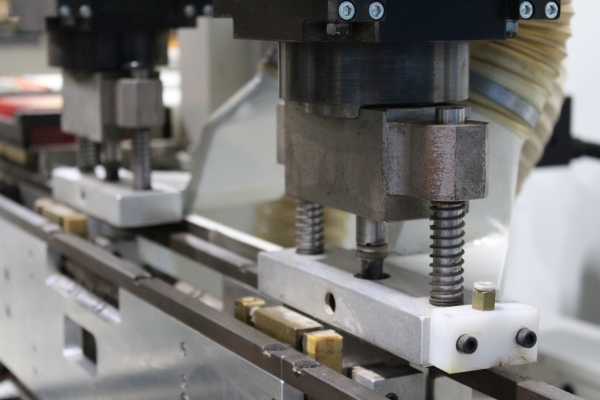

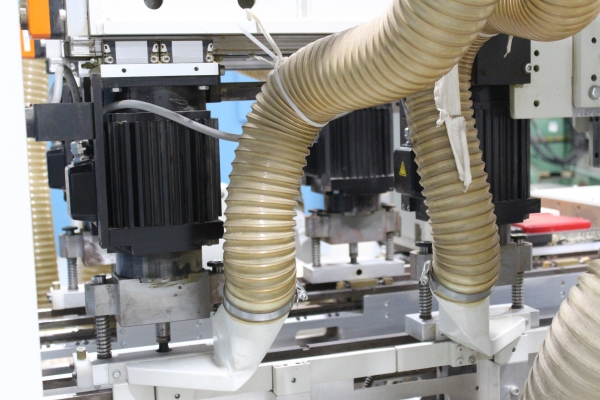

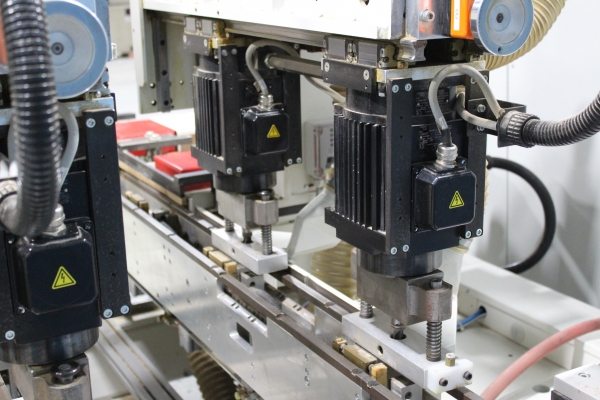

- Station #2: Four Vertical Drilling Stations (Two on Each Side), 3 HP, Quick-Change Chucks
- Vertical Drills are Adjustable in the X & Y Directions via Hand-Cranks w/ Mechanical Counters

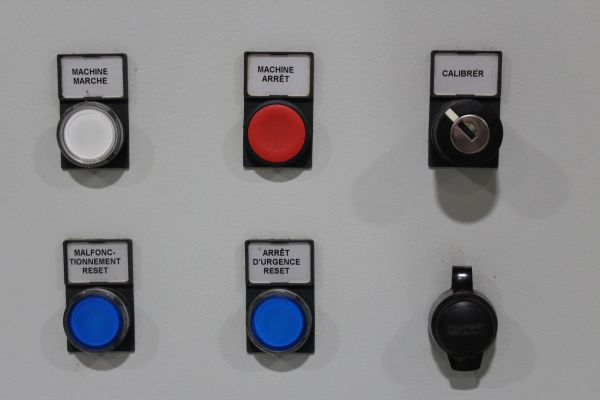

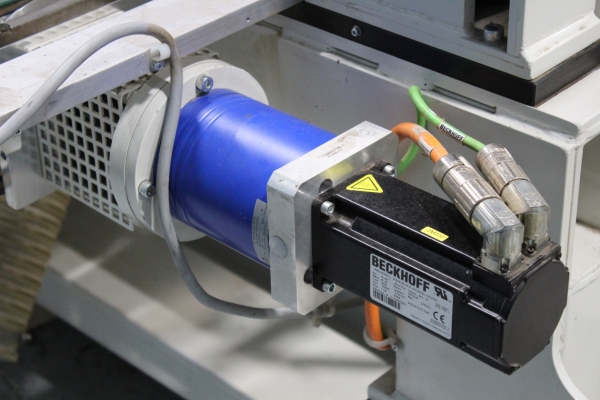

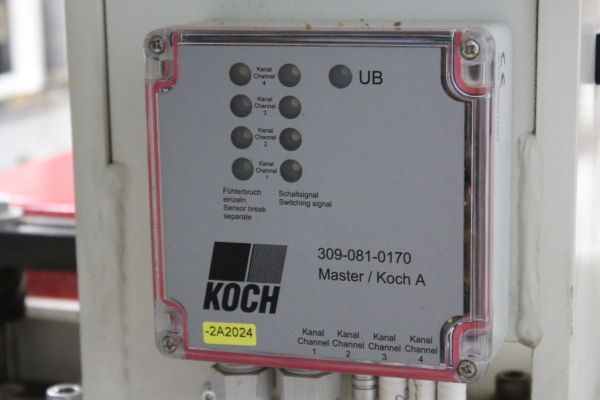

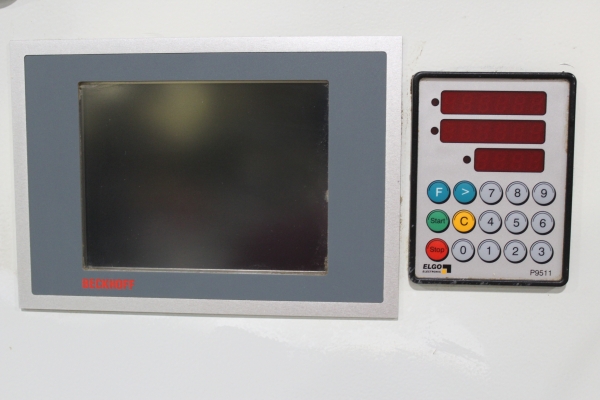

- Beckhoff Control
- 480v, 3ph
- Year: 2017
