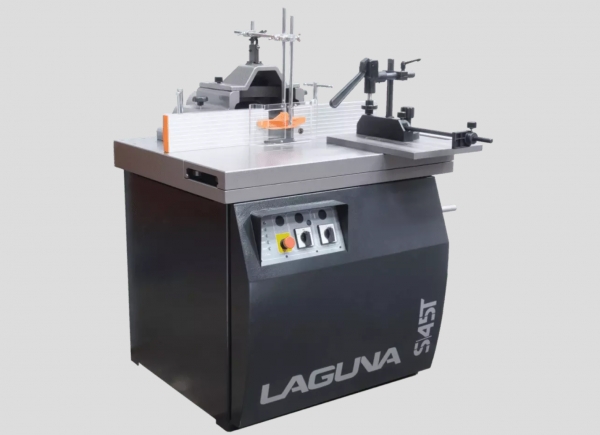

Laguna S|45T Industrial Shaper

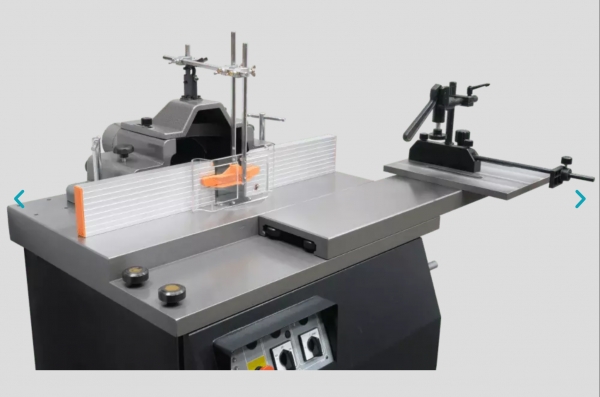

• Laguna Model S 45T Industrial Shaper
• The Laguna S45T Industrial Shaper was designed to be a heavy duty industrial workhorse for commercial applications. Weighing in at over 1000 lbs. it provides an exceptional value for any pro shop.
• The combination of dynamic electronically balanced spindle with robust solid castings makes the S45T run extremely smooth with absolute minimum vibration.
• Motor: 5HP 1 Phase or 7.5HP 3 Phase
• Spindle Tilt: 45° Backwards, 10° Forward

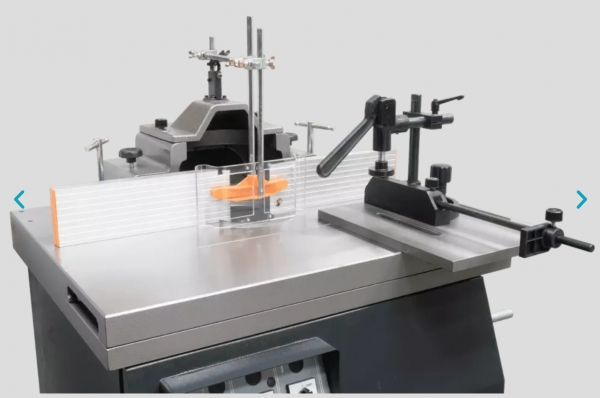

• Sliding Table: 10-1/4" x 39"
• Main Table Incl. S/T: 39-1/2" x 31-5/8"

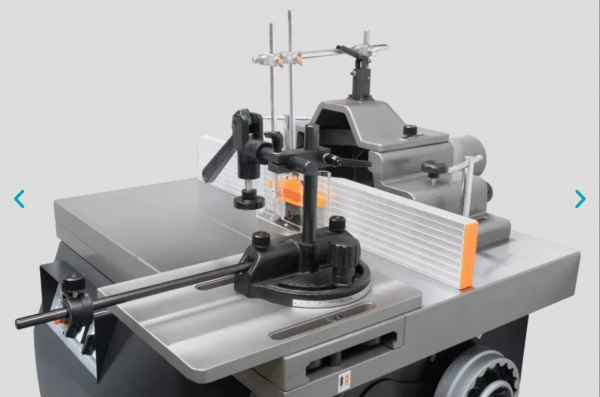

• Tenoning Table:13-3/4" x 18-1/2"
• Hold Down Clamp: Included
• Tenoning Table Adjustment: 7" Slide To Spindle
• Sliding Table Stroke: 19" Right of Spindle
• Sliding Table Stroke: 19" Left of Spindle
• Sliding Table Far Right: 30" Spindle To Miter Gauge
• Table Height: 35 3/8"
• Capacity Under Nut: 5"/125mm
• Spindle Stroke: 7"/180mm

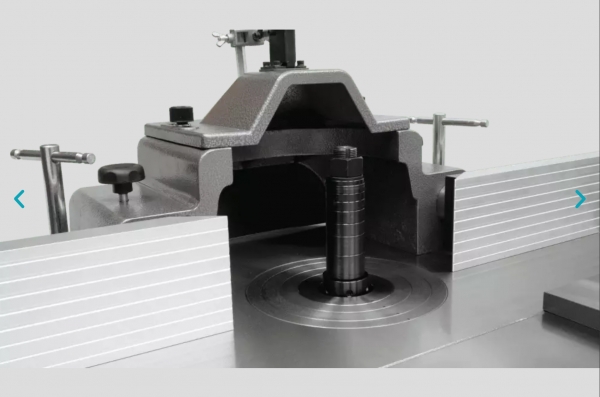

• Spindle: 1 1/4" Interchangeable
• Max Tooling Diameter: 8 1/4"/210mm Under Table
• Max Tooling Diameter: 13"/335mm Above Table
• Rotation: Forward/Reverse

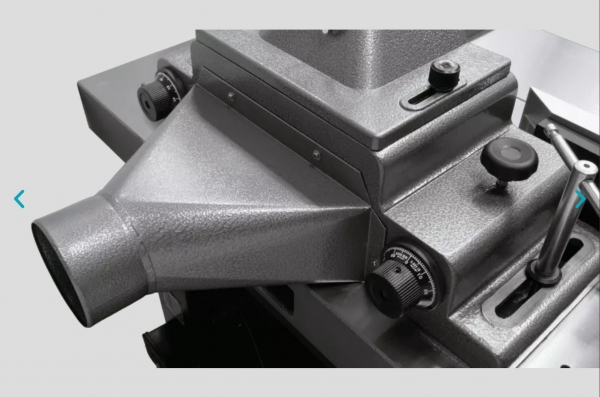

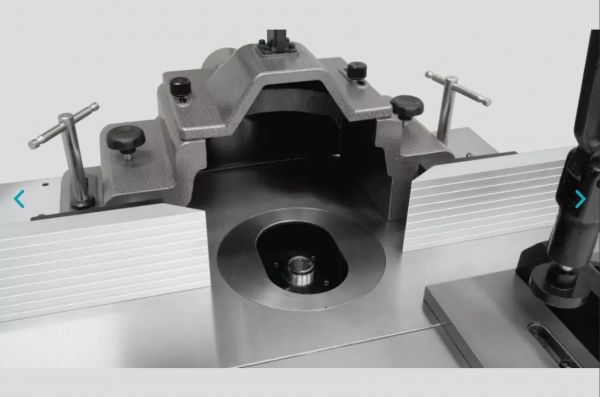

• Fence: Micro Adjust, Cast Body
• Speeds: 3000/4000/6000/8000/10000 RPM

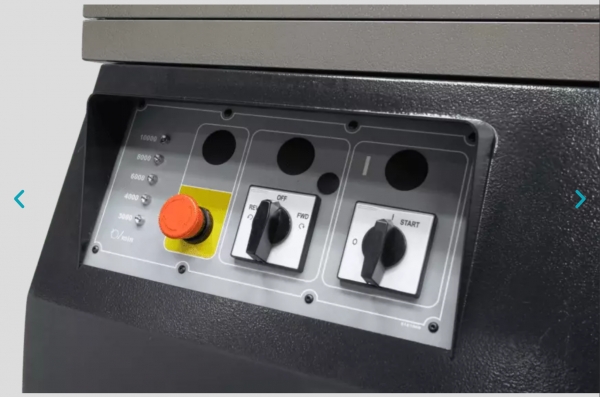

• Readout: LED Lights For Speeds

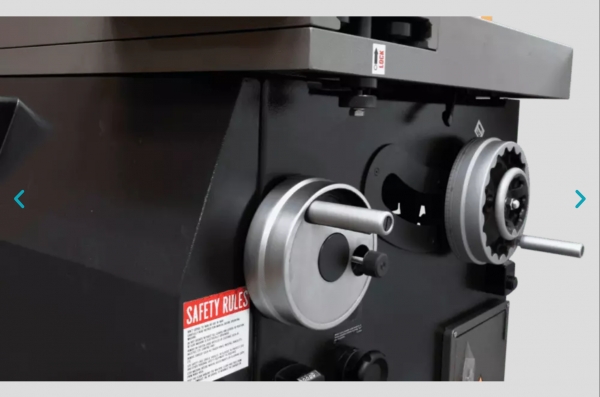

• Readout: Mechanical Tilt & Spindle Height
• Feeder: Pre-drilled Left Back Corner
• Router Collet: Accepts, Not Included
• CAS Components
• Weight (Net/Ship): 1056/1350 lbs
• Shipping Dimensions (L x W x H): 49" x 45" x 50"
