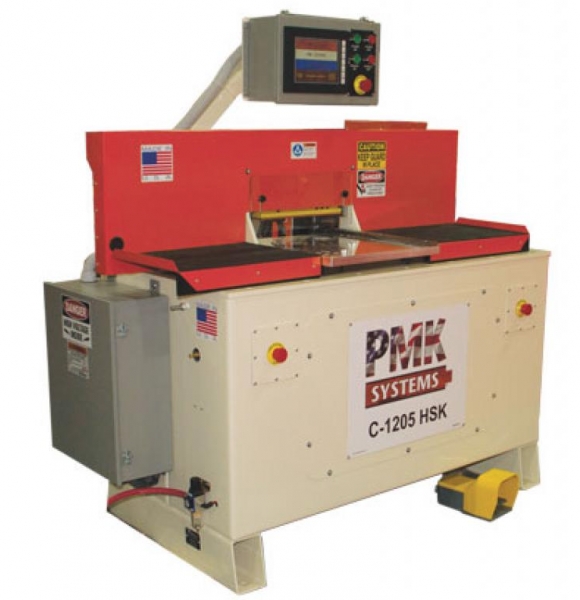

PMK Systems Model C-1205 HSK-Servo End Matcher/Coping Machine
Machine Available
Stock #101232N
New- PMK Systems Model C-1205 HSK-Servo End Matcher/Coping Machine
- 2 (two) 7.5 hip motors - 460 volts
- Direct drive spindles
- Up to 32 programmable settings for proper configuration of the tooling and back fence
- Servo drives on both spindles for proper location of tooling (Maximum 3-inch movement up & down of spindles)
- Servo drive on back fence 2-inch movement in and out
- Chip-free coping or end-matching
- THK style rails for the guidance of carriage stroke and hold-down clamp
- Side pressure clamp insures proper alignment with the fence
- Cycle time adjustable from 4 to 10 seconds
- Two Digital Scales for fine adjustment of spindles during setup
- Cutter diameter Minimum 3.5” OD Maximum 6” OD
- Maximum SIZE part 3/4” thick depending on profile & density of wood 13 ½” wide
- Minimum part length 4”
- Maximum cut up to ¾” depending on profile & density of the wood
- Minimum part width determined by the O.D. of the cutter and if the part is profiled or not
- Part length unlimited
- 4 (four) HSK 63F SPINDLES/TOOL HOLDERS Tool holder / Milling arbor 1.25”
- Spindle length 55mm, 2.165”
- Dust Hood With 5” port 1000 CFM required
- C-1205-foot print Width 68” / Depth 32” / Height 64”
- Air Pressure CFM 10 100 PSI, air line 5/8” dia for more volume
