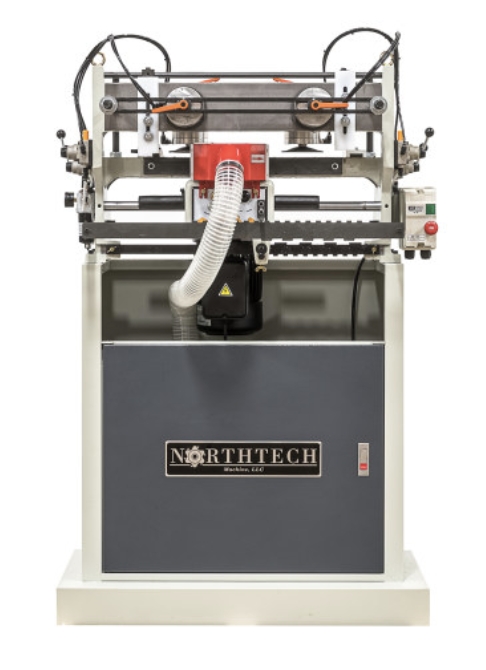

Northtech Model NT-DTM16M Manual Dovetailer

• Northtech Model NT-DTM16M Manual Dovetailer
• Spindle motor: 1HP 1PH 120V/240V 60HZ
• Min. workpiece size: 2.4" x 7.9"
• Max. workpiece size: 16.5" x 59"
• Min/Max dovetail height: 0.2" ~ 7.1"
• Min/Max front thickness: 0.28" ~ 2.36"
• Min/Max side thickness: 0.28" ~ 3.6"
• Number of spindles: 1
• Spindle speed: 18,500RPM
• Dovetail spacing: 1", 1.5", 2", 2.5"
• Table height from floor: 46.5"
• Pneumatic clamps to securely hold workpiece, individually operated
• Heavy steel base with cabinet door
• Tenon and mortise adjustment depth based on material thickness
• Comes with one four-sided template for different pitched dovetails (1", 1.5", 2", 2.5")
• UL/CE certified electrical components
• Air pressure required: 6 bar
• Dust port (1) 4" requiring 436CFM @ point of extraction and (1) 2-1/2" requiring 245CFM @ point of extraction
• Machine/Packing weight: 441lbs / 550lbs
• Machine dimensions (LxWxH): 43" x 30" x 66"
• (1) Tool box
• Warranty is one year parts
• All machines are tested stateside prior to shipment providing trouble free start up.
