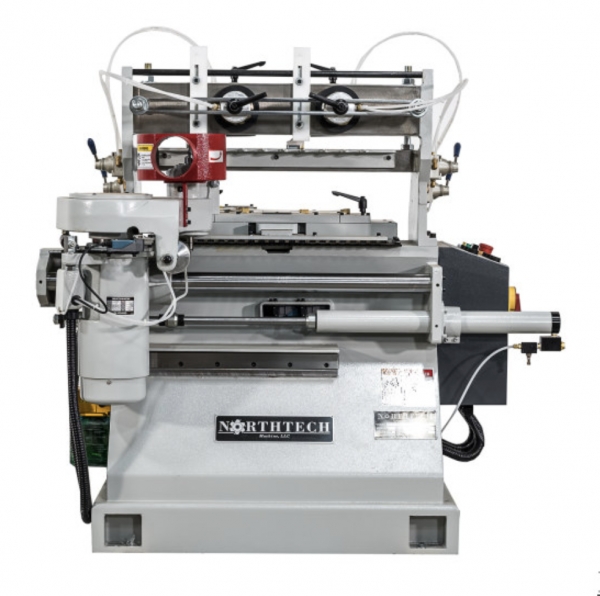

Northtech Model NT-DTM480 Semi Automatic Dovetailer

• Northtech Model NT-DTM480 Semi Automatic Dovetailer
• 21,500RPM 2HP single spindle dovetailer
• 3 cycle speed selection for fine tuning of any product
• (4) individually operated pneumatic clamps
• Quick return button allows for the immediate return of the head without limit switch on rear on machine for varying width parts
• Dual work stations for 2X production of matched sets
• Massive 1,000lb construction ensures maximum durability and vibration free cutting performance.
• Thickness of material: 7 ~ 60mm (5/16" - 2.25")
• Height of tenon: 6 ~ 18mm (1/4" - 11/16")
• Depth of mortise: 10 ~ 25mm (3/8" - 1")
• Cutter spindle vertical adjustment: 30mm (1-1/8")
• Maximum workpiece size: (L) 1500mm x (W) 480mm (59" x 19")
• Workpiece clamping cylinders: 4pcs
• Spindle speed: 21,500 RPM
• Spindle motor: 2HP
• Dust hood outlet: 100mm (4")
• Machine dimensions: (L x W x H) 53" x 34" x 48"
• Packing dimensions: (L x W x H) 60" x 40" x 57"
• Net weight: 1,012lbs
• Gross weight: 1,276lbs
