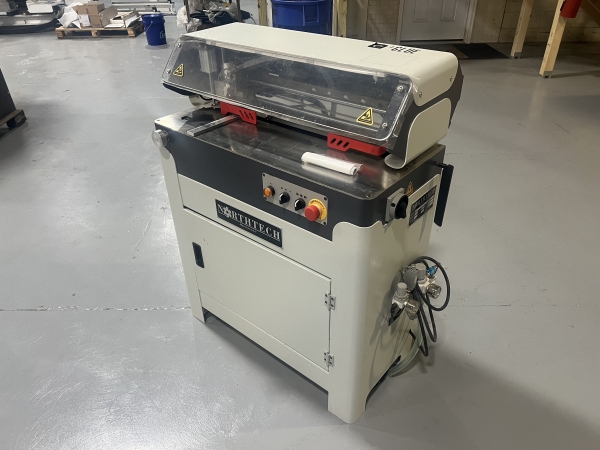

Northtech Model NT-iGlue450DTG Automatic Dovetail Gluer
Machine Available
Stock #21820N
New- Northtech Model NT-iGlue450DTG Automatic Dovetail Gluer
- Simply place the parts against the fence, the iGlue will scan and apply glue to either male or female side of the joint automatically, with no programming required
- Working width: 450mm (18")
- Working thickness: 5-50mm (3/16" - 2")
- Working length minimum: 100mm (4")
- (3) Programmable working speeds
- Maximum operating speed: 1.4in/s
- Multiple glue nozzle applicators for varying customer needs
- Siko counter fence depth setting
- Removable glue catch basin
- Replaceable no drip nozzle
- Glue and water pot on an internal cart system that pulls outside the machine for easy access
- LED Illuminated working area
- Automatic sleep mode will place the nozzle into a water bath after 5 minutes without use to keep glue tip fresh
- Auto cleaning mode fl ushes glue out of system easily
- Single pneumatic connection with FLR included
- Easy smartphone integration for parameter adjustments and maintenance alerts
- Glue reservoir: 10L Adjustable pressure glue pot included
- Water reservoir: 4L Adjustable pressure water pot included
- Recommended glue type: Water soluble PVA glue 8,000mpa s
- Machine / Shipping weight: 436lbs / 528lbs
- Machine / Shipping dimensions (LxWxH): 38" x 44" x 18" / 44" x 54" x 26"
- • 230V/460V 60HZ 3PH; 200W; 1Amp
