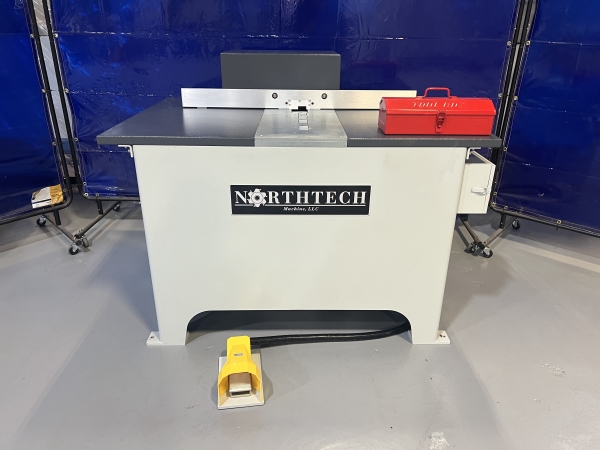

Northtech Model NT-DBN26 Drawer Box Notcher

Machine Available
Stock #21830N
New
   CALL FOR PRICE

  • Northtech model NT-DBN26 Drawer Box Notcher
  • Motor 5HP 3PH 230V or 460V 60HZ
  • Max notch dimension of 57mm (2 ¼”) x 0.5” H with included head
  • Capable of notching over 200 boxes/hr
  • Designed to notch the underside of a drawer as well as drill the back for using under mount drawer slides
  • Cutter diameter: 10”
  • Drill diameter: ¼”

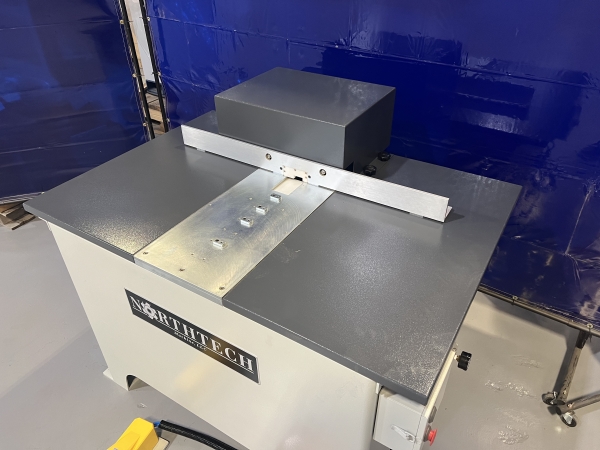

  • Table size: 50” x 23”
  • Passline: 33”

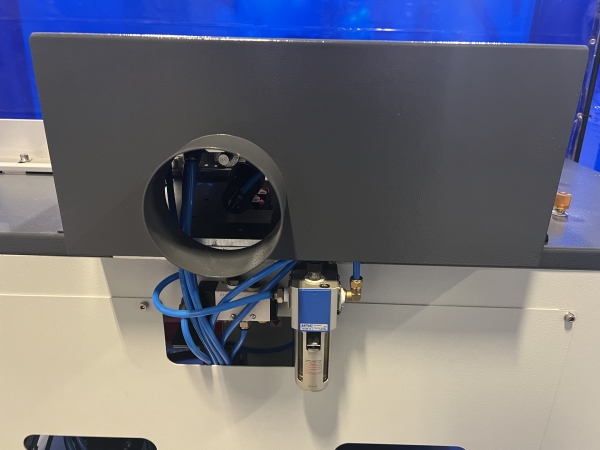

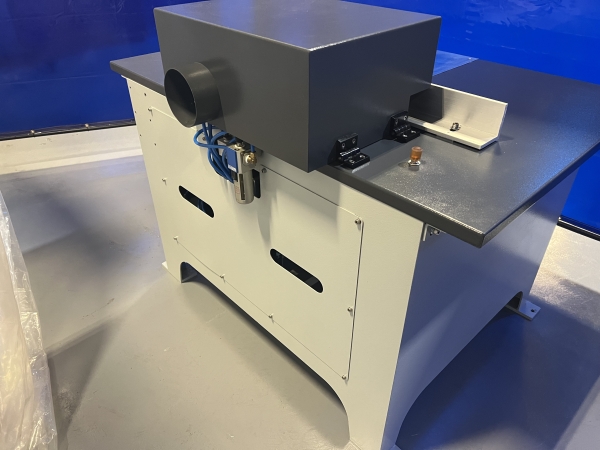

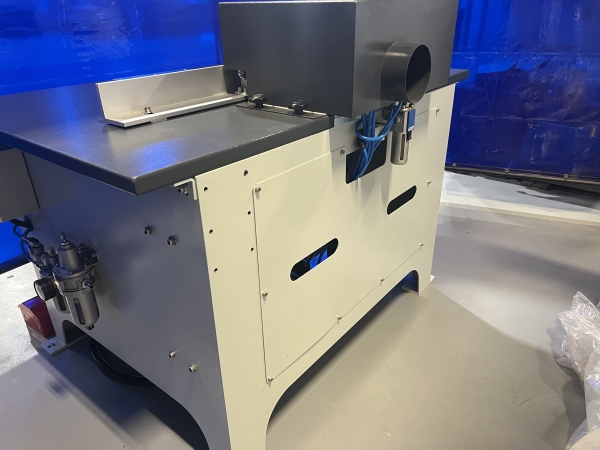

  • (2) 4” Dust port requiring 436CFM at point of extraction

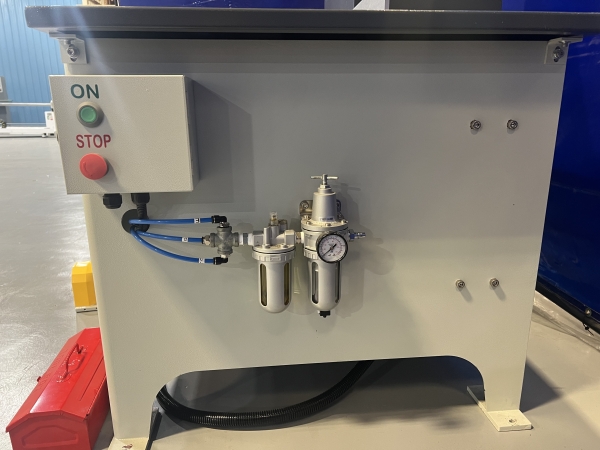

  • Recommended compressed air: 90 – 100PSI

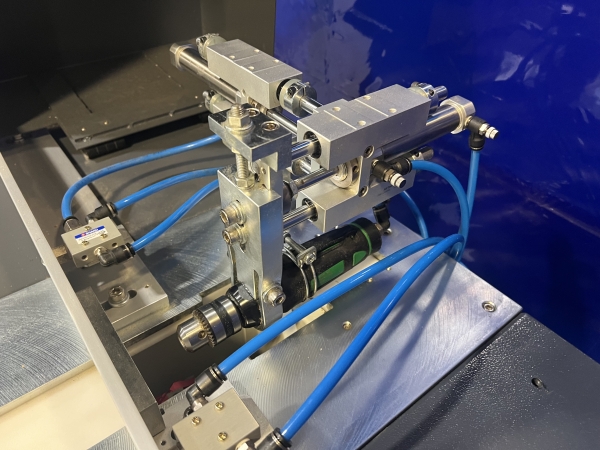

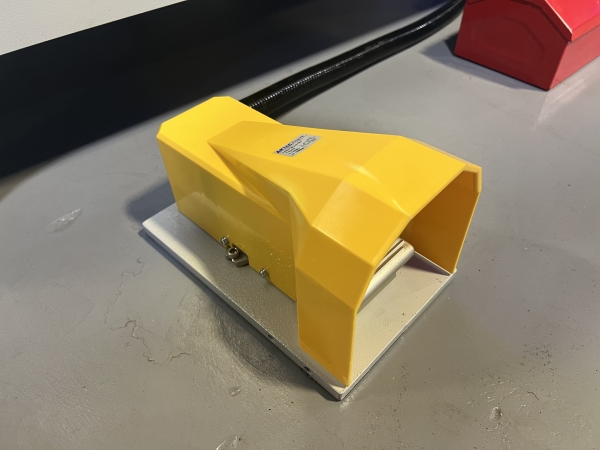

  • Pneumatic cutter & drill stroke by foot pedal operation
  • Cutter stroke and drill are adjustable
  • Insert knife cutterhead with solid carbide inserts for optimum finish results and long tool life
  • Comes with (57mm) 2-1/4” cutterhead with inserts and ¼” (6.3mm) carbide drill bit
  • Machine dimensions (LxWxH): 48” x 38” x 40”
  • Machine weight: 650lbs
  • Operation and parts manual included
  • Standard Northtech one year parts warranty
  • All machines are tested stateside prior to shipment providing trouble free start up.
  • Northtech offers a full line of drawer building machinery, ask your salesman for information on Box Sander, Award Winning Dovetailers and Automatic Gluers
    Optional Accessories
  • 35mm Cutterhead
  • 57mm Cutterhead (one included with machine)
