Friulmac Model Quadramat Double-End Tenoner - 2011!
Machine Available
Stock #101155
Used- Late-Model, Compact Double-End Tenoner!

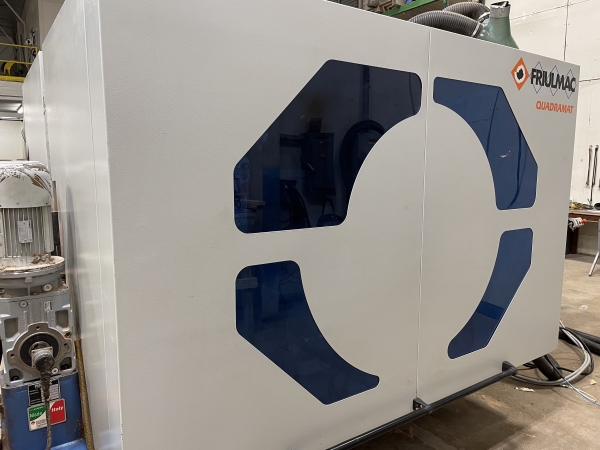

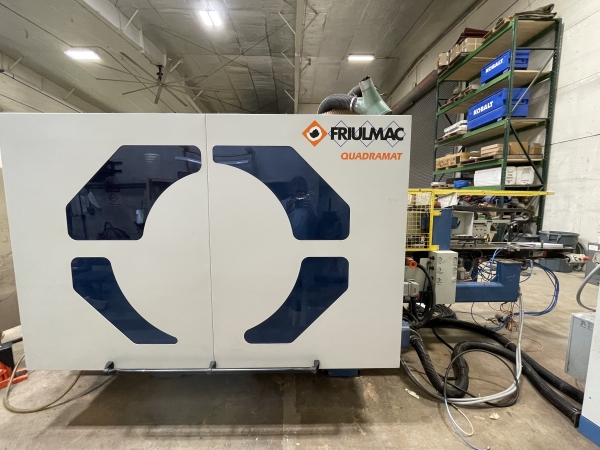

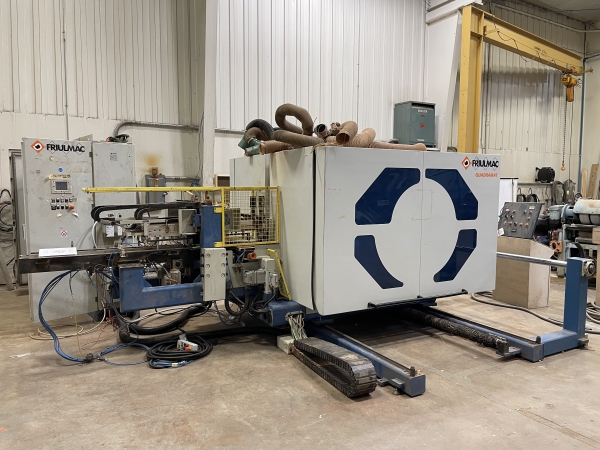

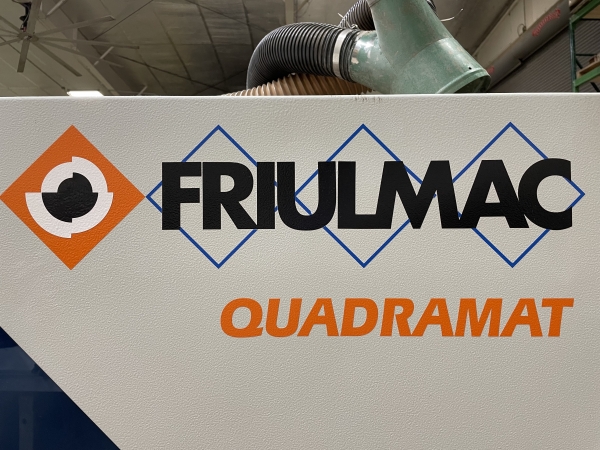

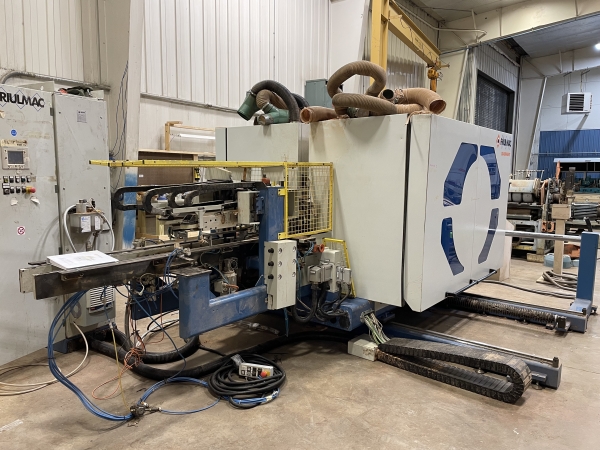

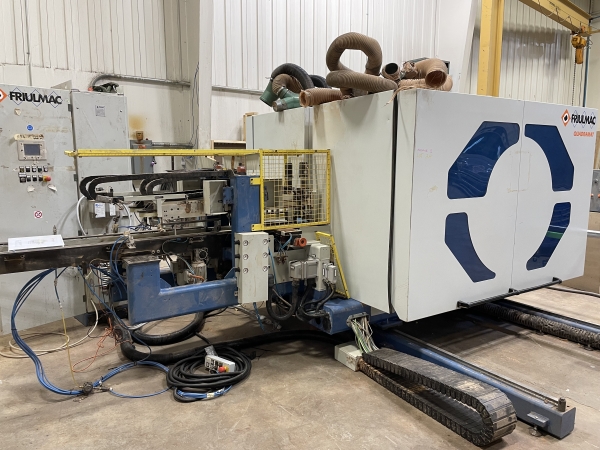

- Friulmac Model Quadramat – E Double-End Tenoner
- Material Length: 206mm – 1,450mm (8.09” – 57”)
- Material Width: 15.9mm – 500mm (0.63” – 19.6”)
- Material Thickness: 15.9mm – 50mm (0.63” – 1.96”)

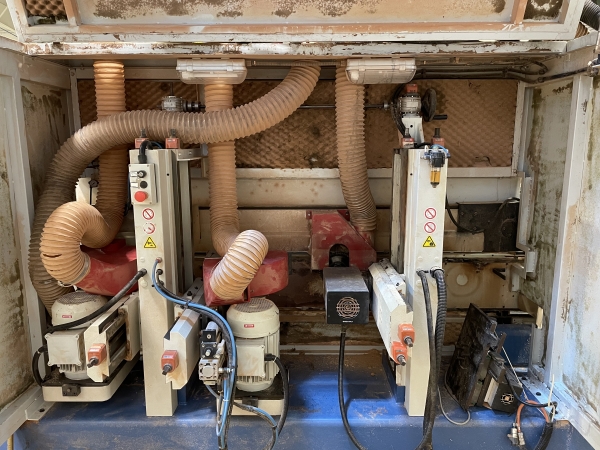

- Station #1: Left & Right Scoring
- Scoring Blade Diameter: 150mm, 30mm Bore

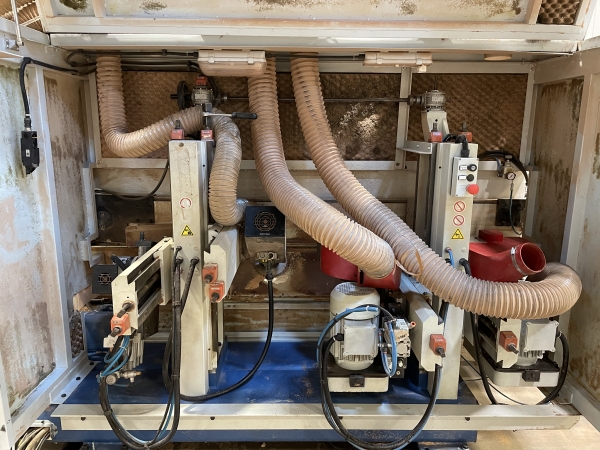

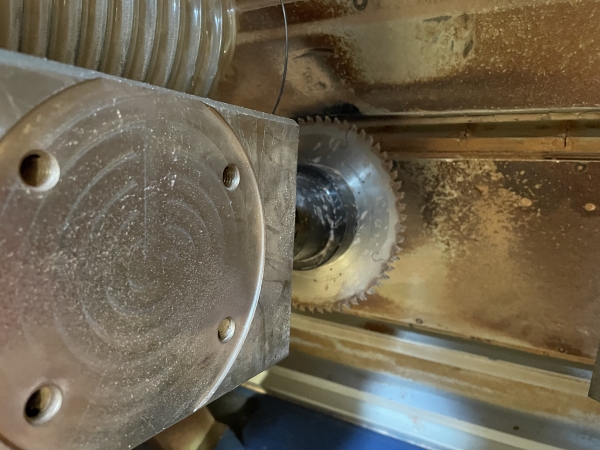

- Station #2: Left & Right Tilting Hogger/Trim Saws
- Hogging Unit Max. Diameter: 200mm, 40mm Bore
- Station #3: Left & Right Jump Cope/Profiling
- Station #4: Left & Right Cope/Profiling

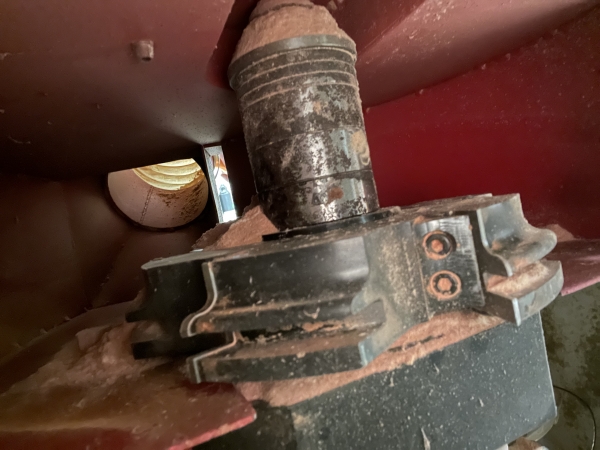

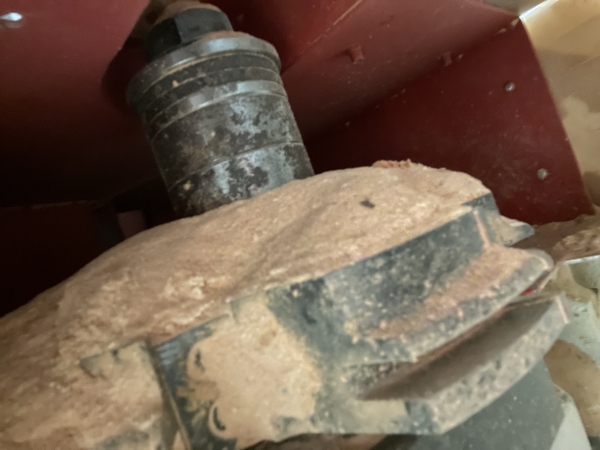

- Cope Head Max. Diameters: 250mm, 40mm Bore
- Variable Speed Feed from 6 – 28 m/min (26 – 92 FPM)
- Stand-Alone Electrical Cabinet w/ Siemens Simatic Touch-Screen Control
- Manual Hand-Cranks w/ Mechanical Counters for Positioning of Working Units

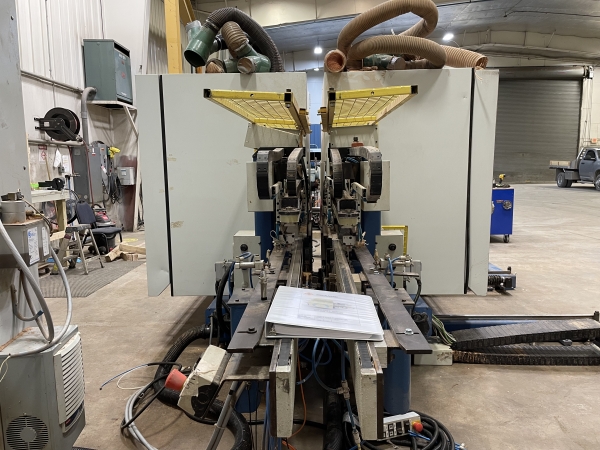

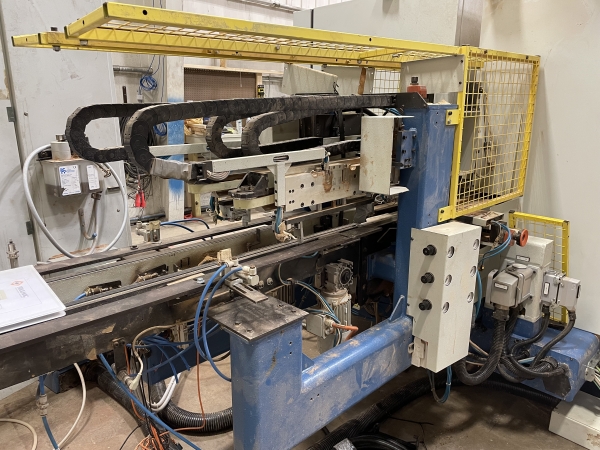

- Includes Infeed System for Feeding Batches of Small Parts (Can be Removed Depending on Application)

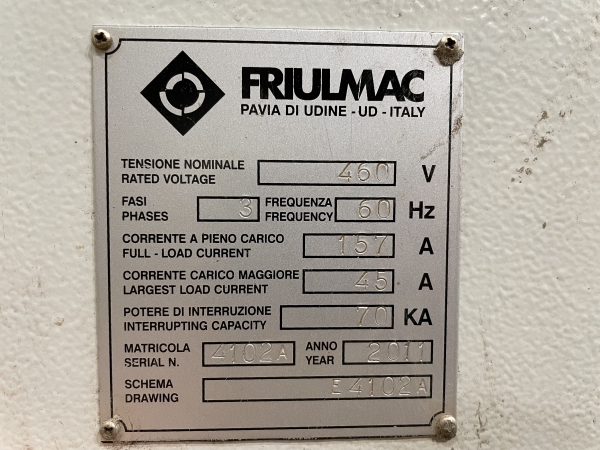

- Year: 2011

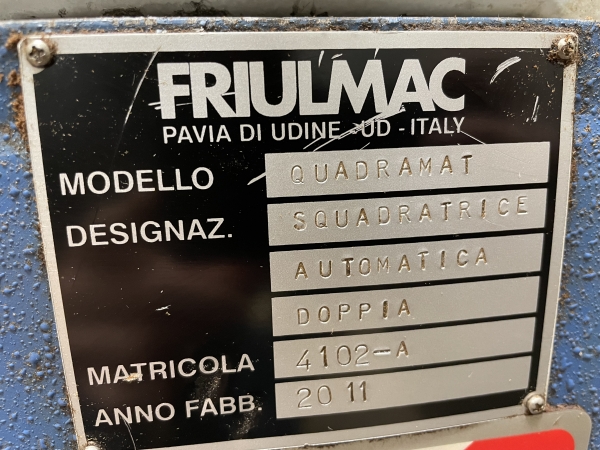

- Serial #: 4102-A
- 157 FLA @ 460v, 3ph
