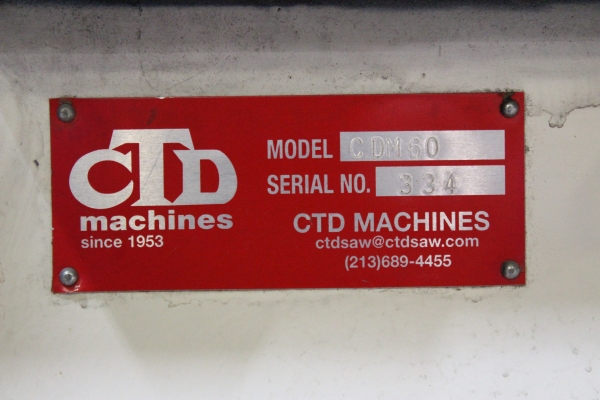

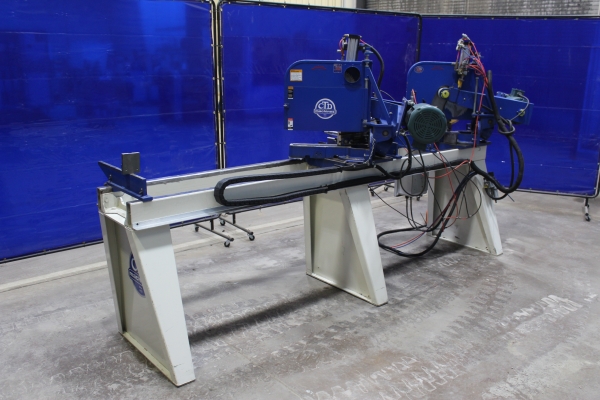

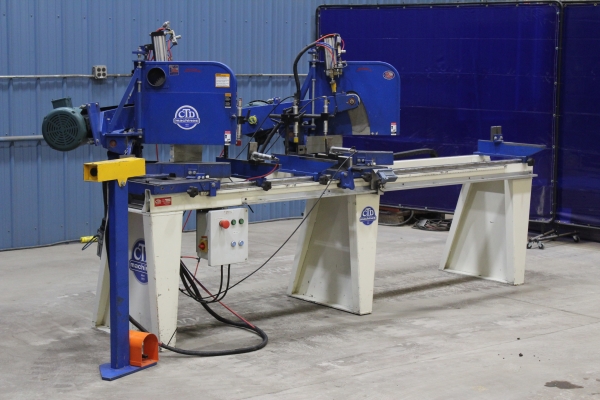

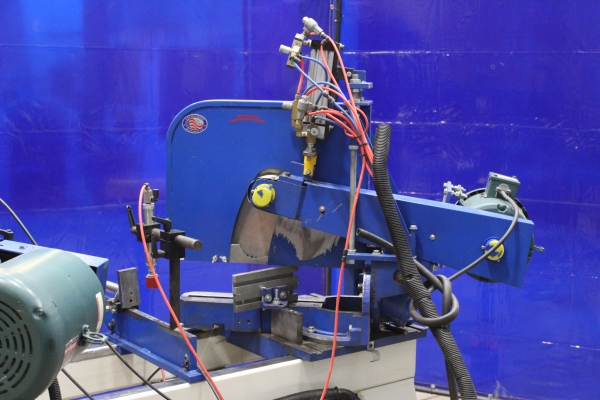

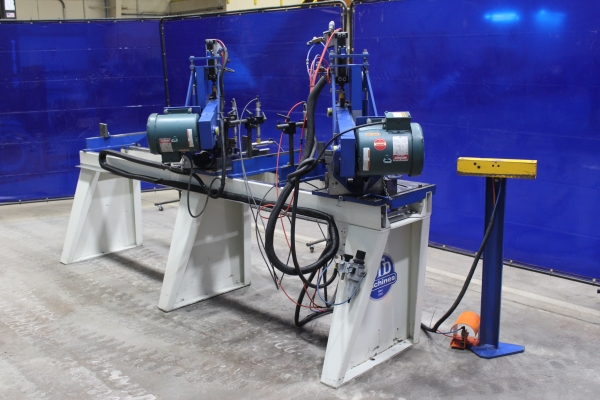

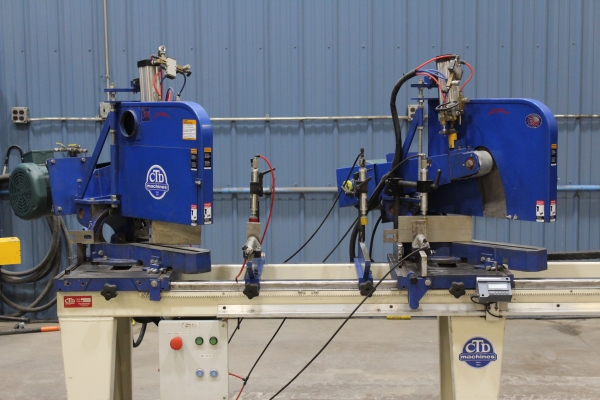

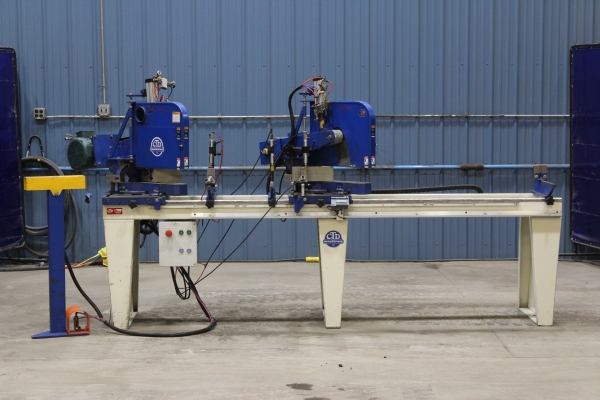

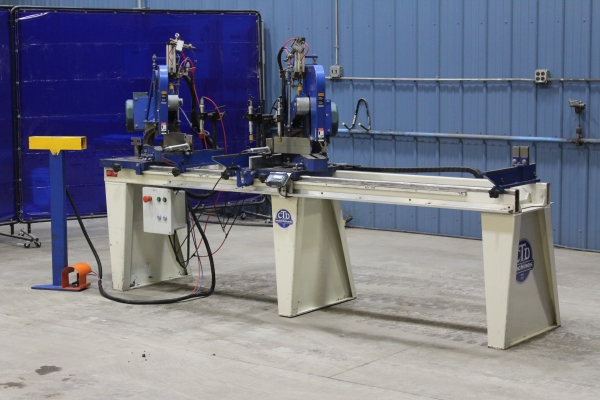

CTD CDM60 Double Compound Miter Saw
Machine Available
Stock #813813

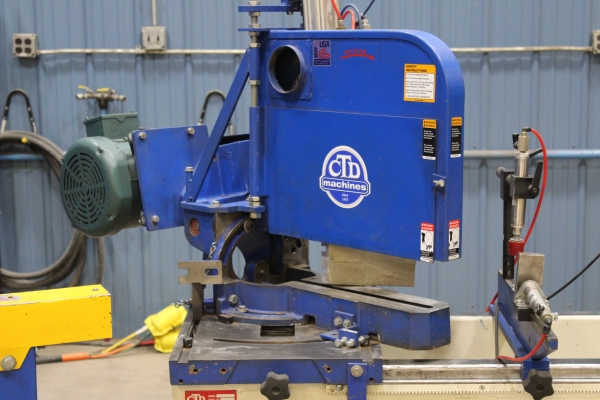

Used- CTD CDM60 Double Compound Mitre Saw

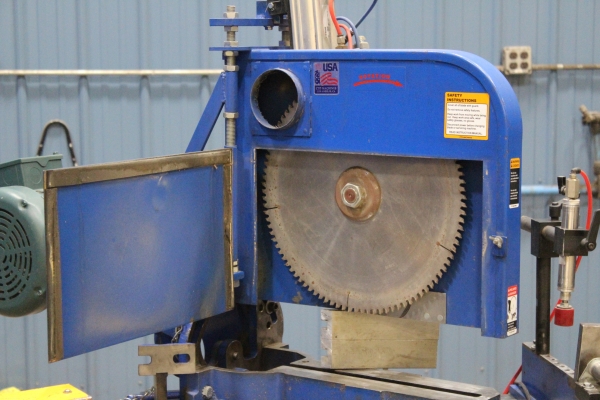

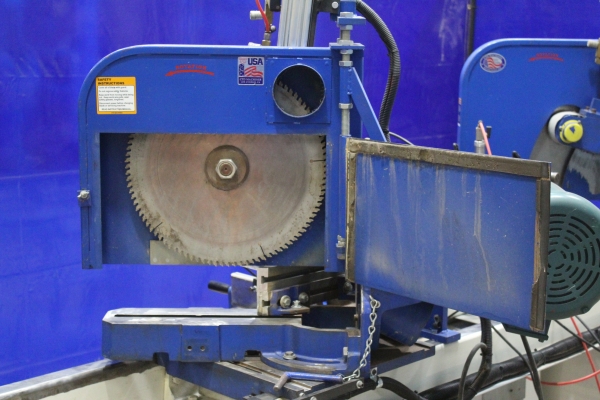

- Blade Capacity: 16"
- Cutting Capacity 90 Degree: 4" High X 10-1/2" Wide
- Cutting Capacity 45 Degree Miter: 4" High X 7-1/4" Wide
- Cutting Capacity 90 Degree front to back and 45 degree compound: 2-5/8" High X 10" Wide
- Arbor Size: 1"
- Blade Speed: 2,800 RPM

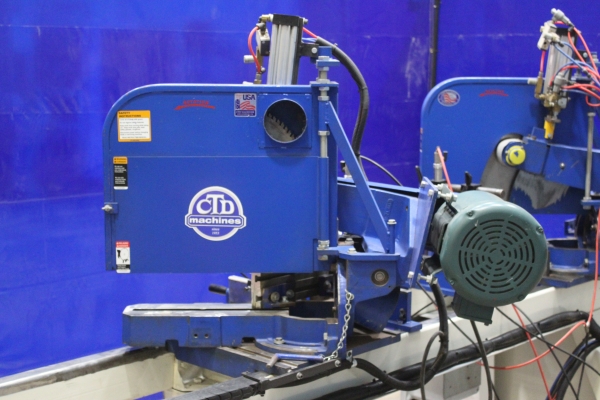

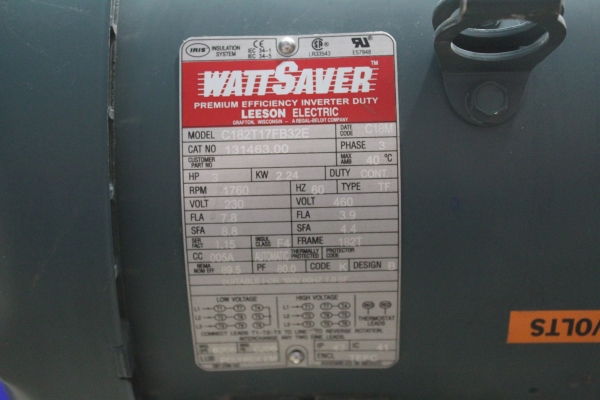

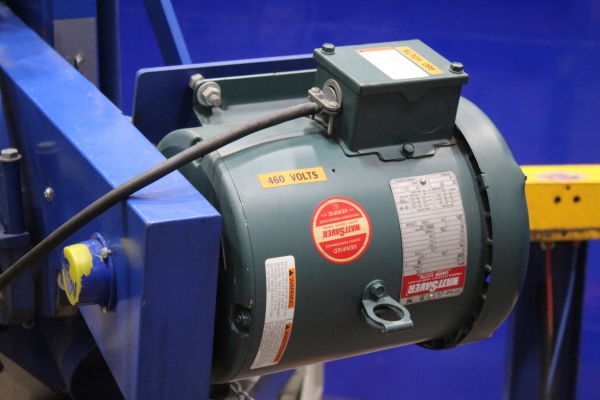

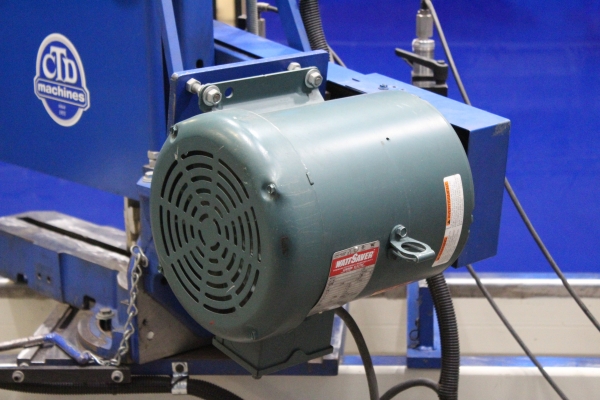

- Two 3 HP Motors
- Fence Height: 4"

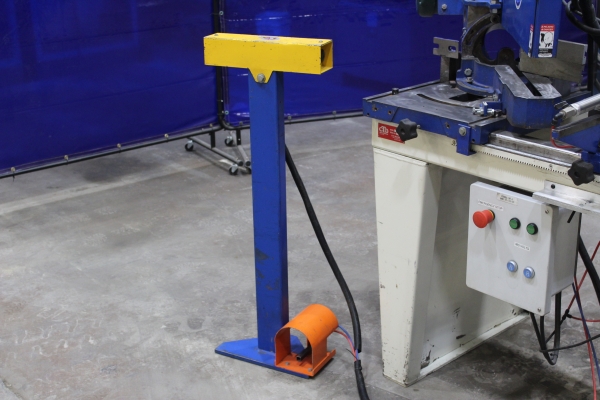

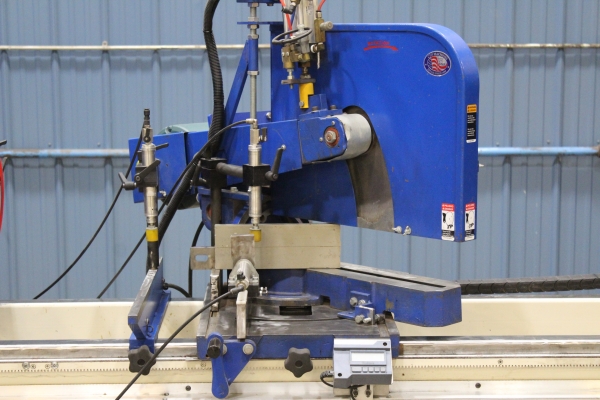

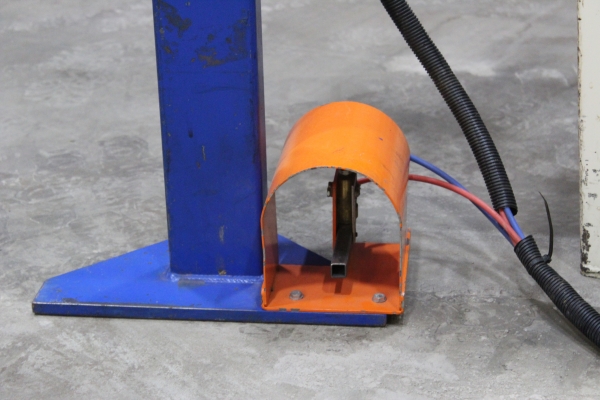

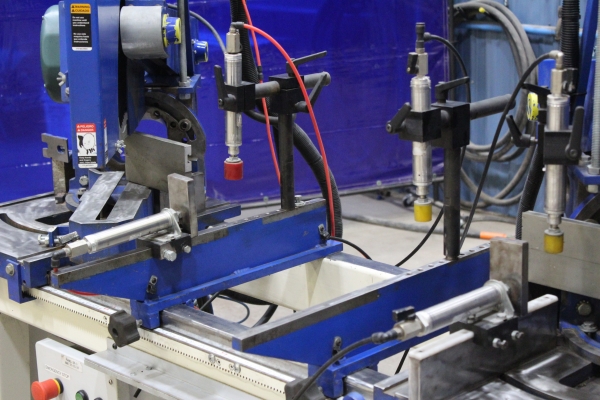

- Foot Valve Actuated Pneumatic Vertical and Horizontal Hold-Downs

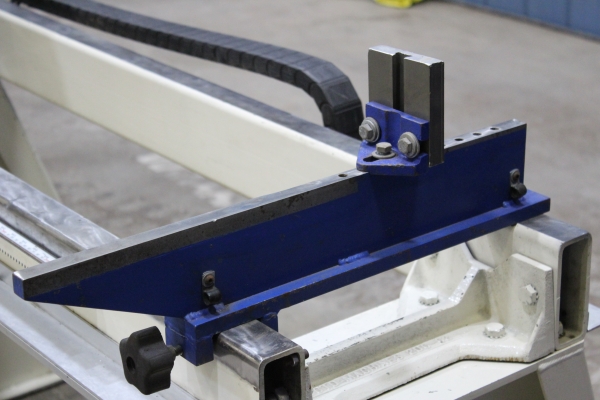

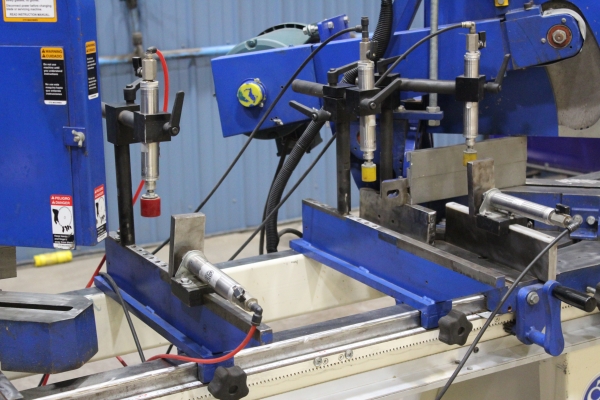

- Center Work Supports with Additional Pneumatic Hold-Downs
- Digital Length Measurement System
- Air Auto-Reverse Arm Power Feed Unit with Anti-Tie-Down Maintained Contact Two-Hand Safety Control.
- FR Unit with Auto-Drain
- Manual Adjustment of Operator's Right Table
- Up to 96" Between Centers
- Double End Miter, Parallel, 45 Degree, and 90 Degree Cuts As Short As 20"

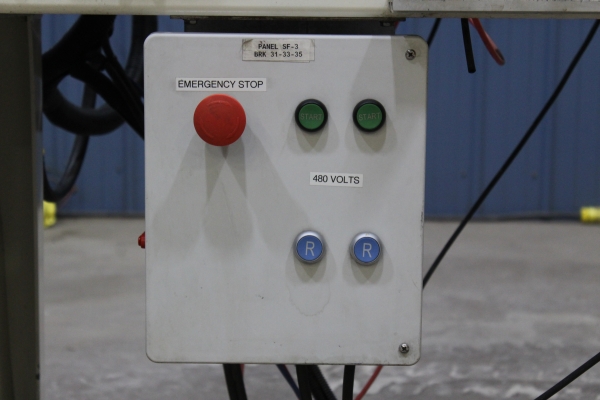

- Current Voltage: 460v
