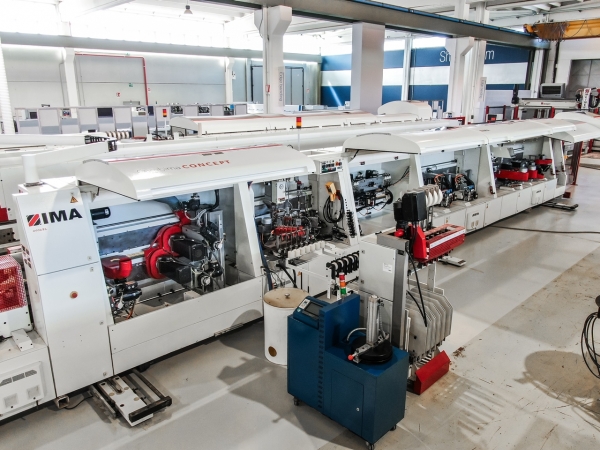

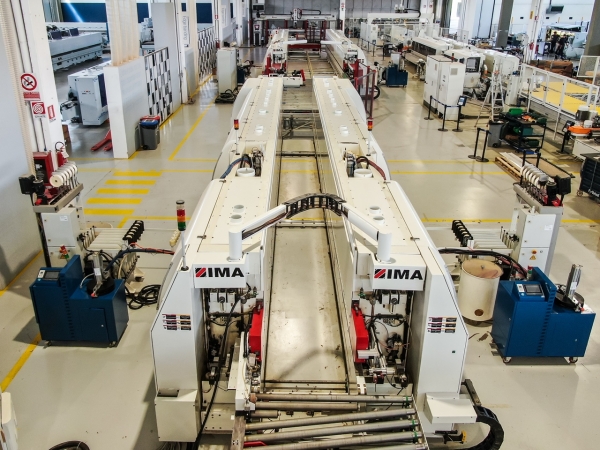

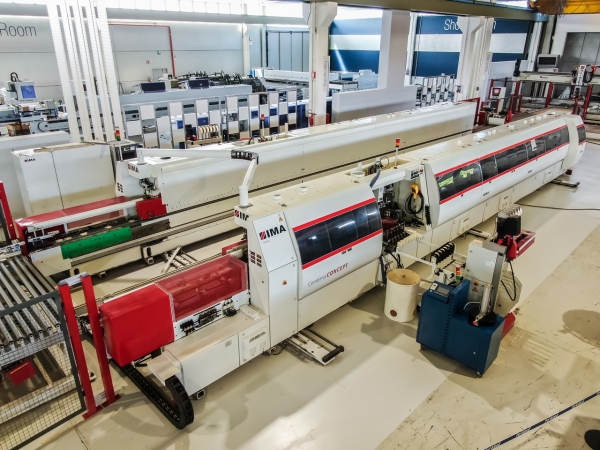

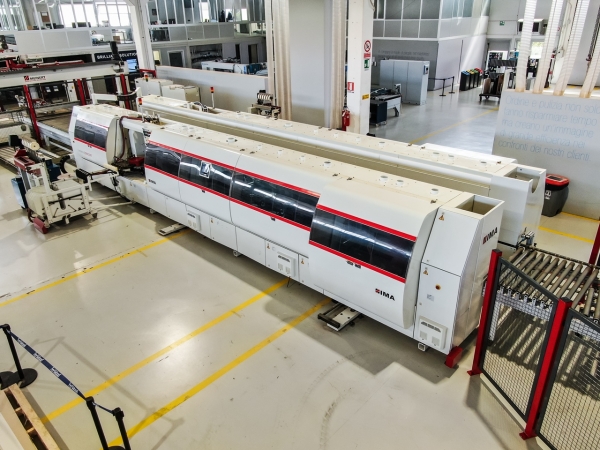

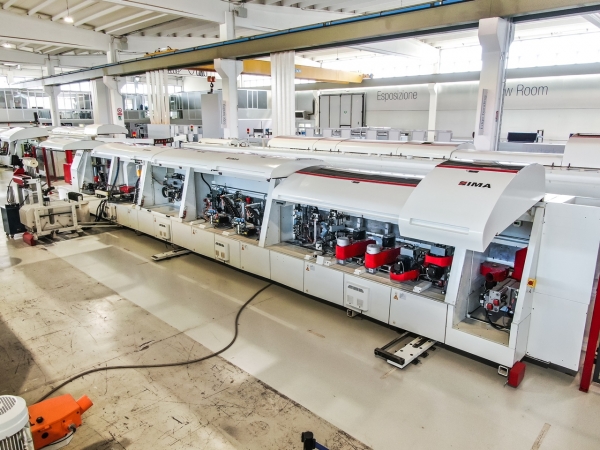

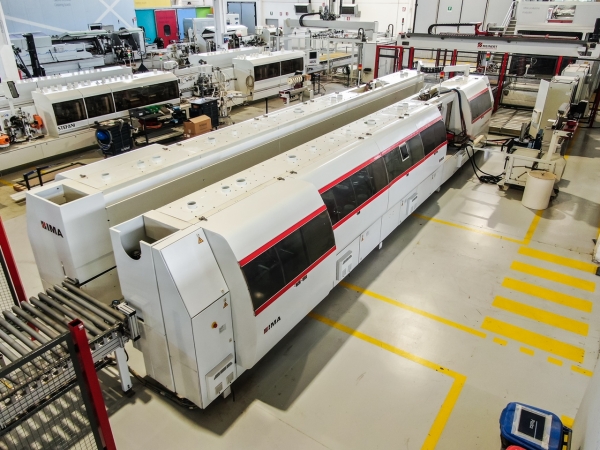

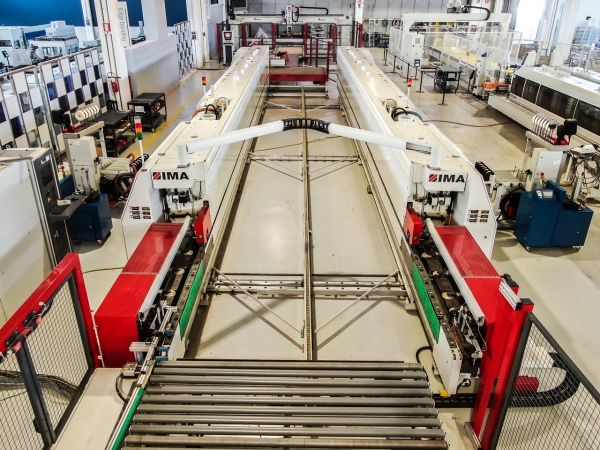

IMA Combima II/650/A/R3 Edgebander Line
Machine Available
Stock #25953

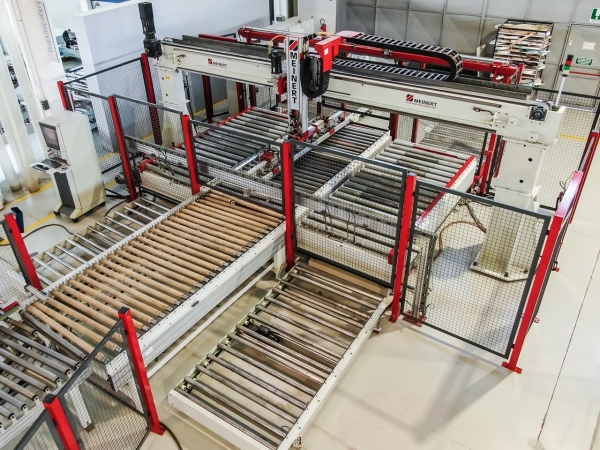

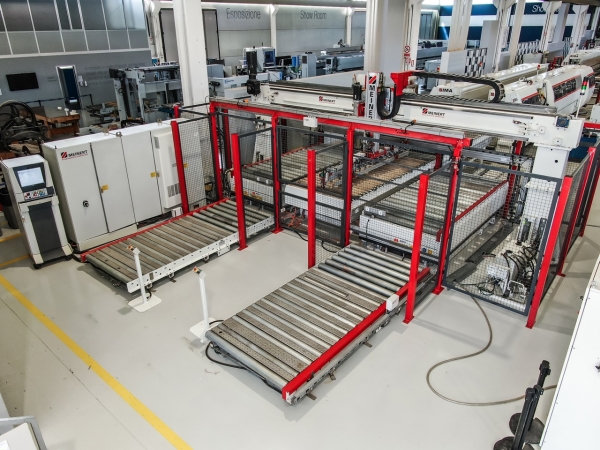

Used- Meinert P 620D/B-L 3000/1300
- Min/Max Panel Width: 9.45" - 51.18"
- Min/Max Panel Length: 9.84" - 118.11"
- Max Panel Stack Height From The Ground: 62.99"
- Work Cycles/Minute: 18
- Loading System: Vacuum/Suction Cups
- 112 m3/h Capacity

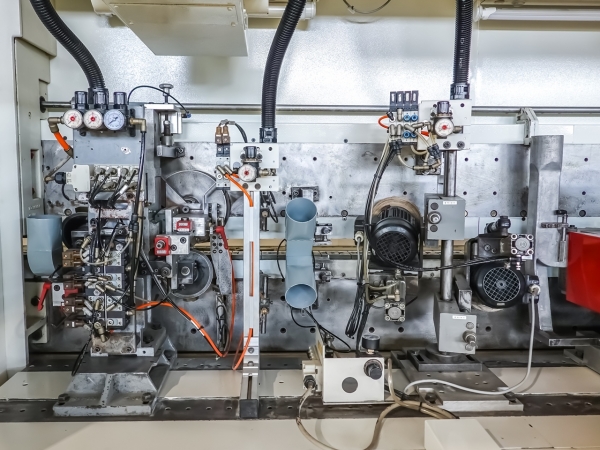

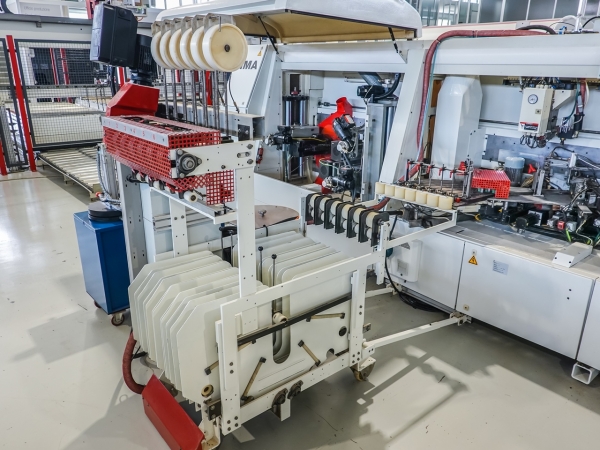

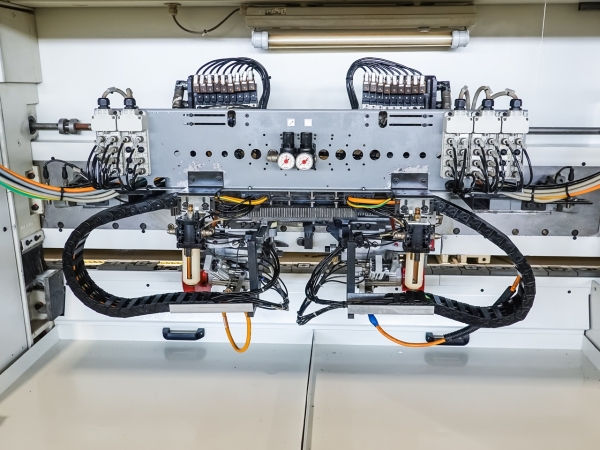

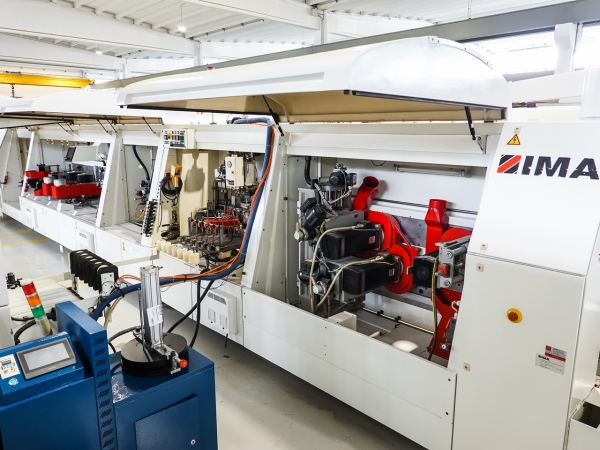

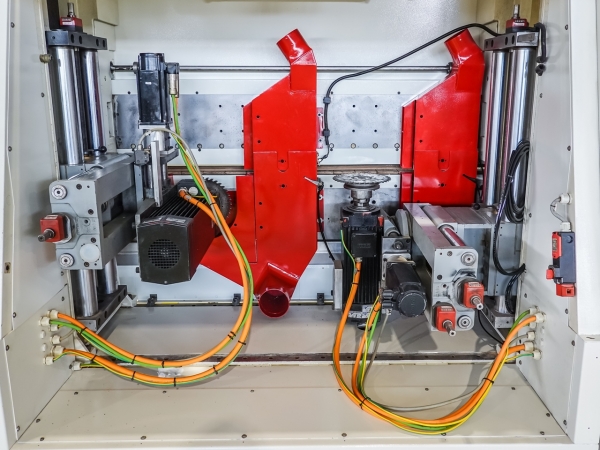

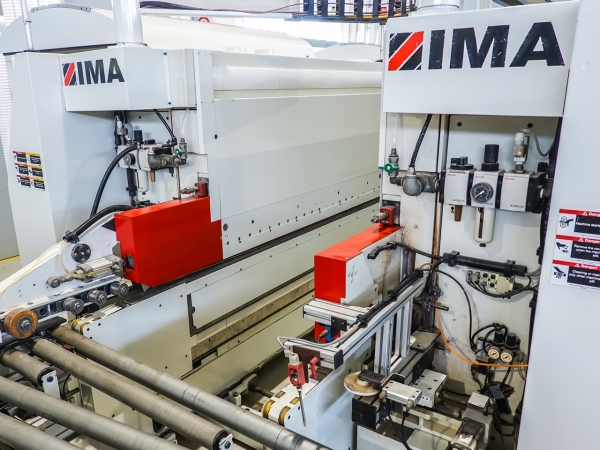

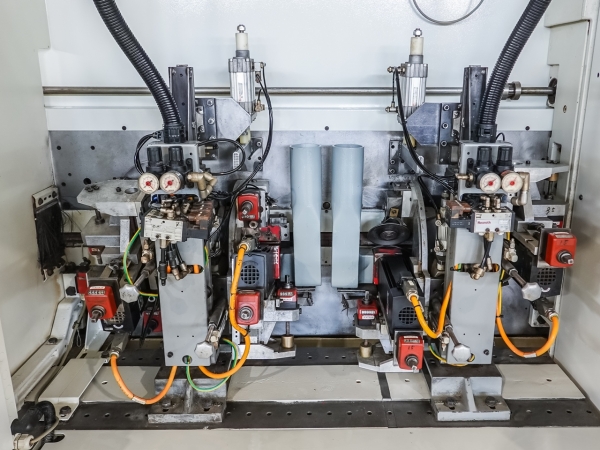

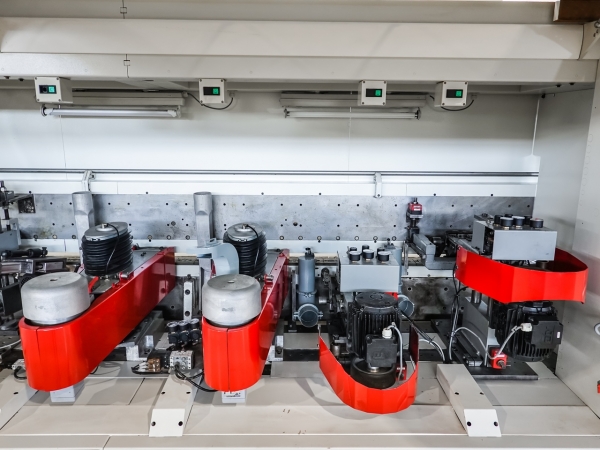

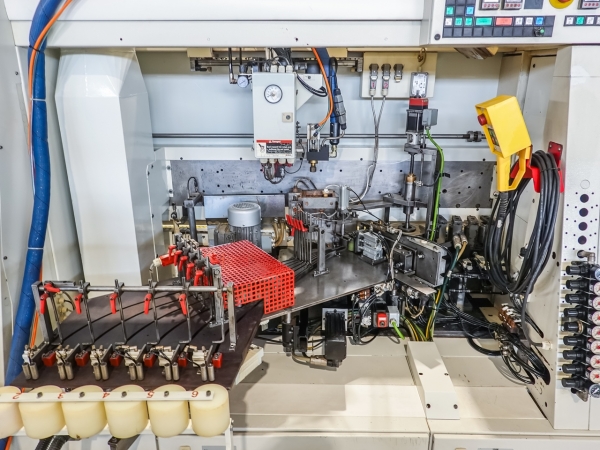

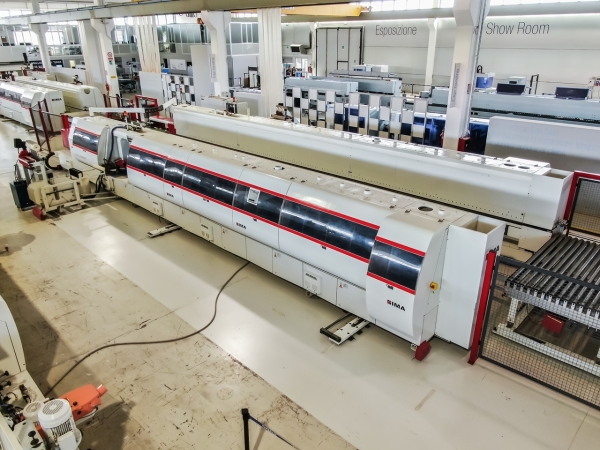

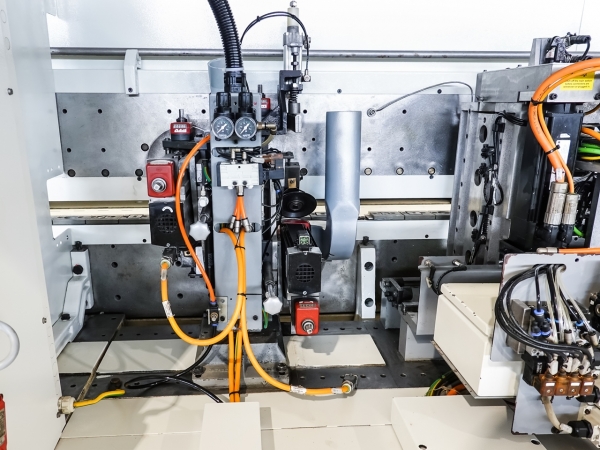

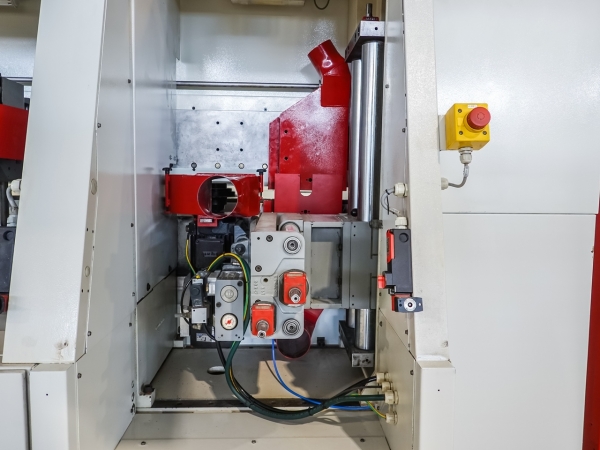

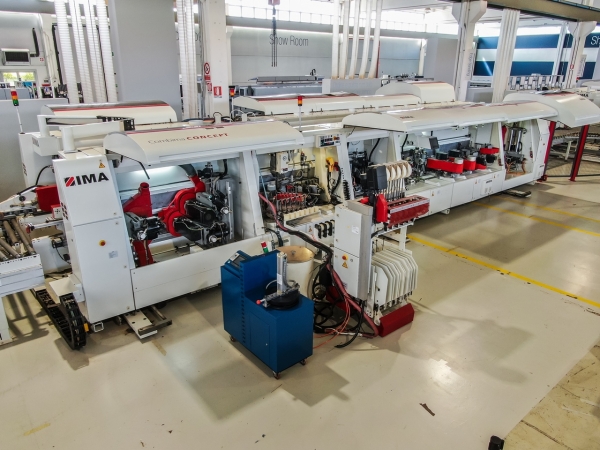

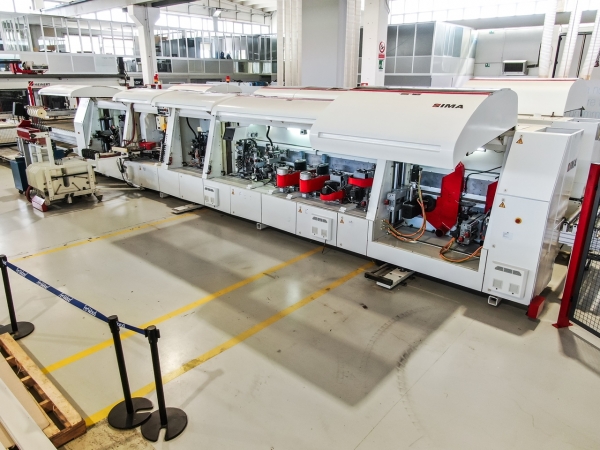

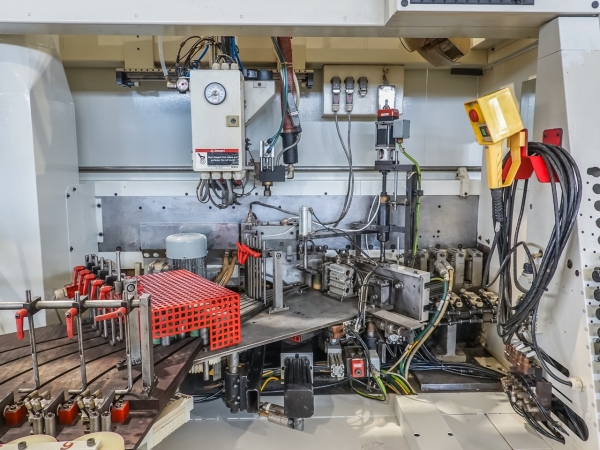

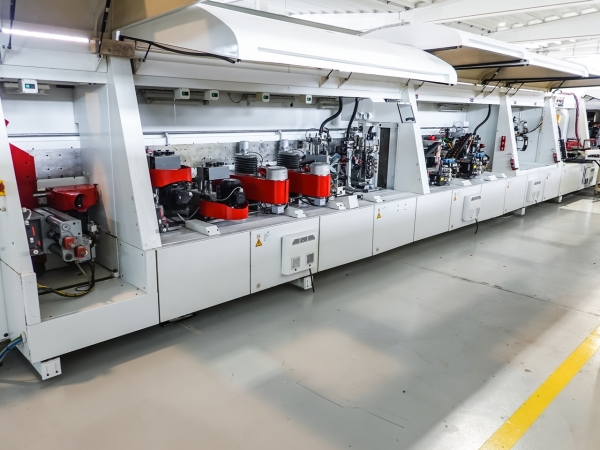

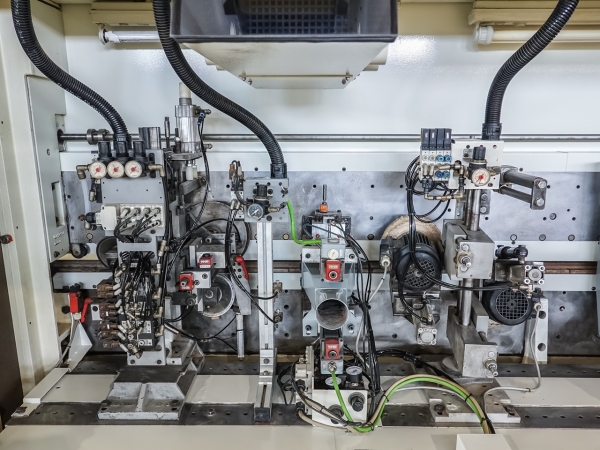

- IMA Combima II/650/A/R3

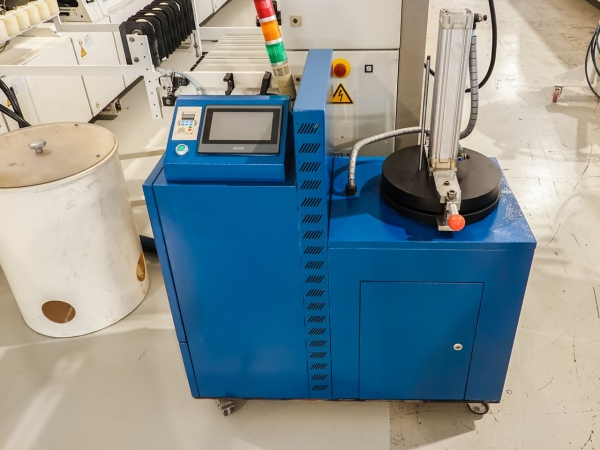

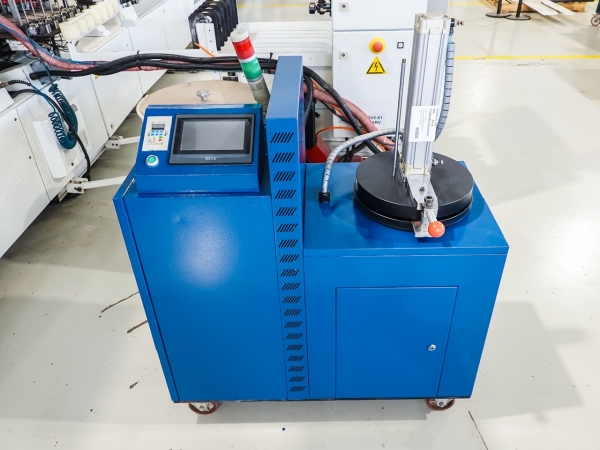

- EVA Hotmelt Glue System
- Max Panel Width: 51.18"
- Max Feed Speed: 164.04 Ft/Min
- Operating Units Right Side: 14
- Operating Units Left Side: 13
- Min. Panel Height: .31" - 1.77"
- Min/Max Panel Length: 9.84" - 129.92"
- Min/Max Panel Width: 9.29" - 51.18"
- Min/Max Edge Thickness: .01" - .12"
- Rubber Belt Top Pressure

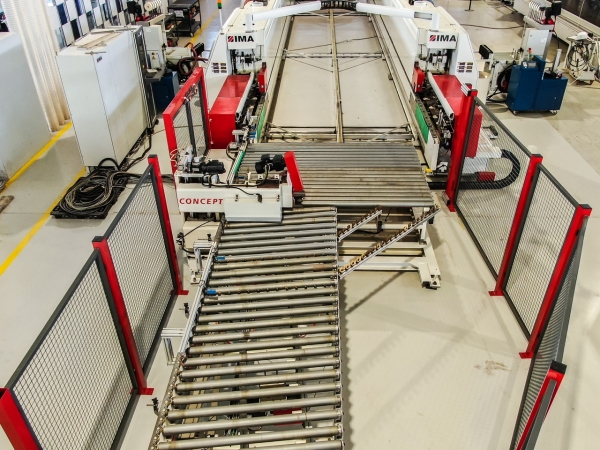

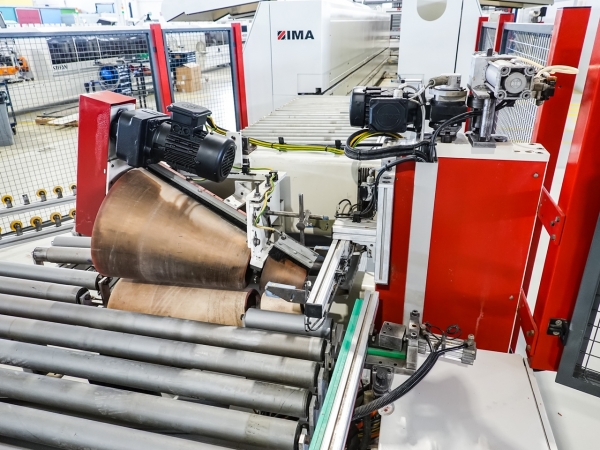

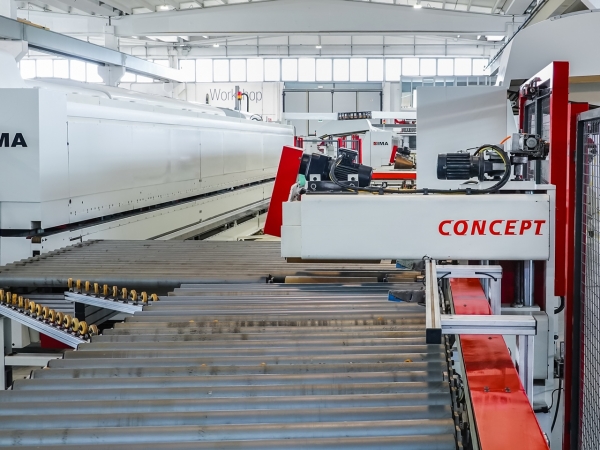

- IMA IDK Concept L/Q-3300/1300 Panel Turner
- Min/Max Panel Length: 9.84" - 129.92"
- Min/Max Panel Width: 8.66" - 51.18"
- Max Forward Feed Speed: 262.47 Ft/Min
- Rotation System: Double Cone.
- IMA Combima II/590/B/R3 Edgebander
- Min/Max Panel Length: 10.47" - 51.18"
- Min/Max Panel Width: 9.29" - 129.92"
- Min/Max Panel Height: .31" - 2.36"
- Max Feed Speed: 164.04 Ft/Min
- Operating Units Right Side: 14
- Operating units Left Side: 14

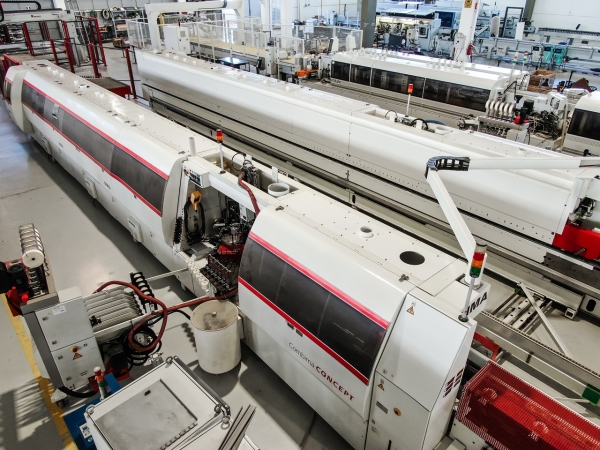

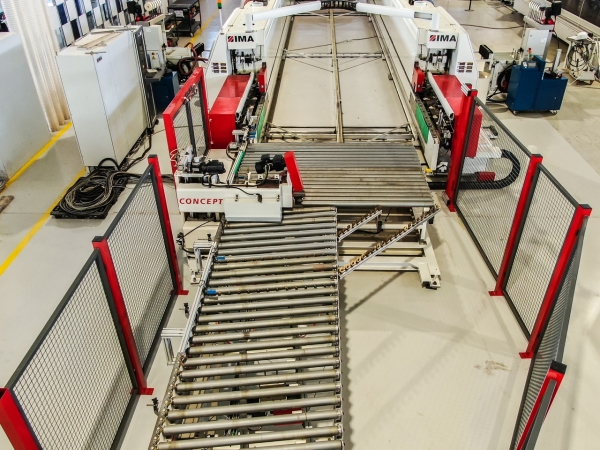

- IMA Concept Q/L/Q/Q-3000/1300
- Min/Max Panel Width: 8.66" - 51.18"
- Min/Max Panel Length: 9.84" - 129.92"
- Max Foward Feed Speed: 262.47 Ft/Min
- Rotation System: Double Cone.

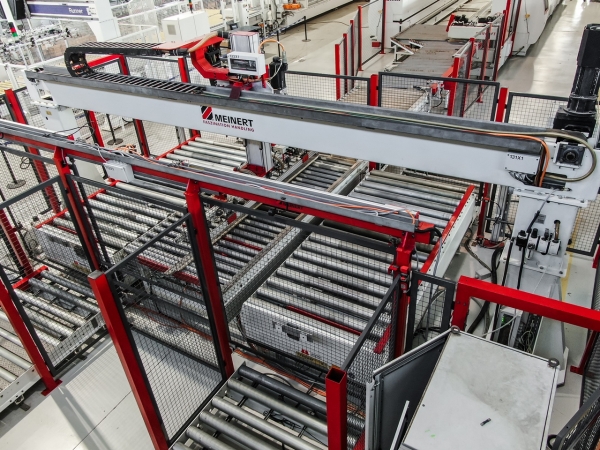

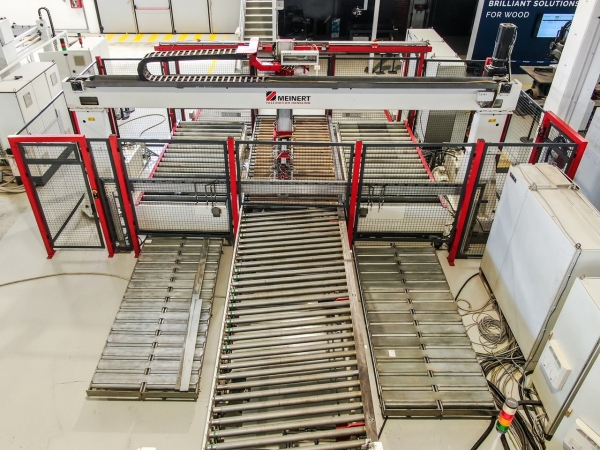

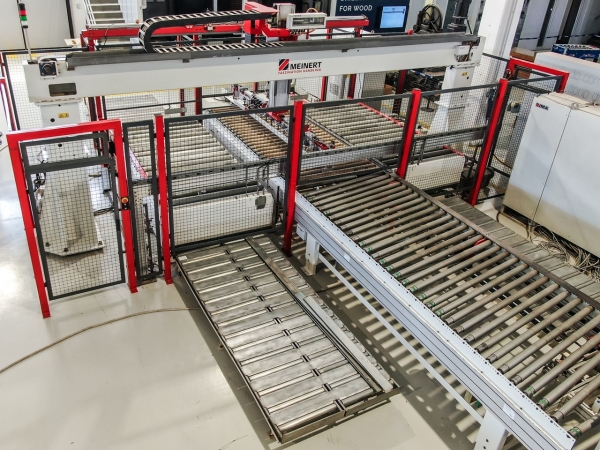

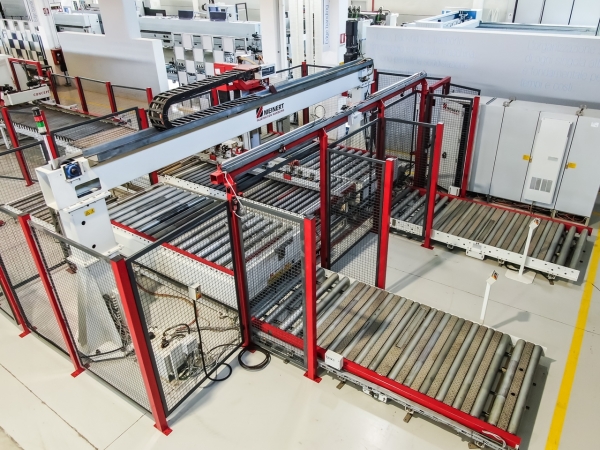

- Meinert P 620D/S-L Stacker/Offloader
- Min/Max Panel length: 9.84" - 118.11"
- Min/Max Panel Width: 9.45" - 51.18"
- Max Panel Stack Height: 62.99"
- Work Cycles/Min: 18
- Loading System: Vacuum/Suction Cups
- 112 m3/h Capacity
