Friulmac Frimat-FP-3WS Foiling Machine for Profile Wrapped Rails
Machine Available
Stock #19201N
New- Fruilmac Frimat-FP-3WS
- The Purpose of the machine is to perform precision machining such as milling or mortising of Profiled-Wrapped Cabinet Door Rails, plus Foiling
- Working Dimensions
- Min-Max Length: 2"-59"
- Min-Max Width: 1.5"-7.9"
- Min-Max Thickness: 0.5-1.5
- Working Units:

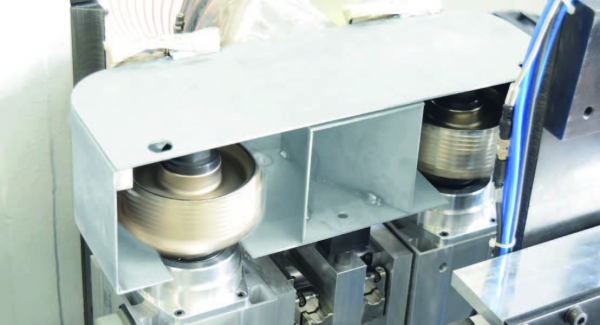

- Upper/Lower Edge Units (CNC): Electric Motor - 5 kW (6.7HP) @ 9000-12000.

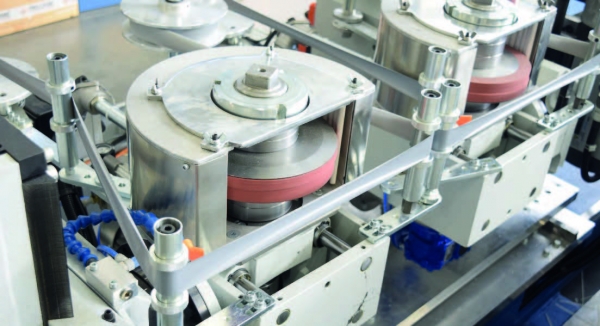

- Thermoprinting Unit T "Borgonovo" (2nd & 3rd Station)
- External Diameter - 200mm (7.875")
- 80 Shore Buffer Diameter - 190mm (7.5")
- Copier Diameter - 200mm (7.875")
- No. Resistances - KW 0.5x6
- Rotation Motor Unit Power - 0.09 kW
- Motor Power - 0.09 kW
- Pre-Torque Head Motor Power - 0.22 kW
- Total Machine Power - 13 kW
- Full Load Current - 24 Amp
- Working Air Pressure - 6 Bar
- Pedal Safety Switch.
- Push Button Controls
- HMI Control Panel
- Safety Enclosure
- Current Voltage: 460V 3PH
