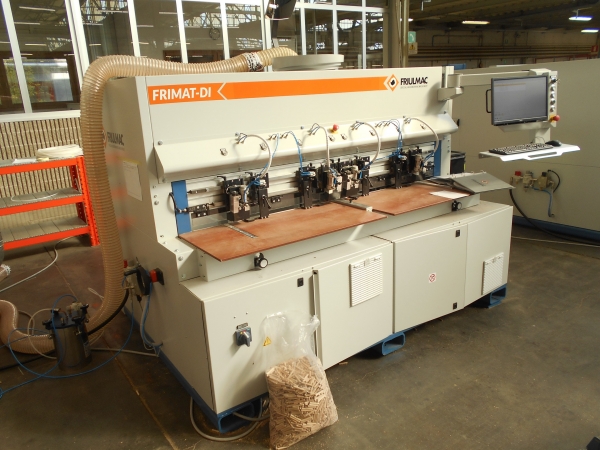

Friulmac Frimat-DI CNC Drilling and Dowel-Insertion Machine
Machine Available
Stock #22516N
New- Friulmac Frimat-DI
- Specifically Designed for Drill and Dowel Processing for Kitchen Cabinet Doors Stiles & Rails
- Loading Area Specifically Designed to Hold Either Four Rails, Two Stiles, or One Extra Long Stile
- Working Dimensions
- Min-Max Length: 2.5" - 59"
- Min-Max Width: 1.5 - 38"
- Min-Max Thickness: 0.5" - 1.5"
- Working Units:
- Upper/Lower Edge Units (CNC) - 1.5 kW (2HP) @ 9000-12000 RPM
- Glue Insertion Unit R-4
- Tank Capacity: 2 Kg
- Glue Type: Ac. Vinile
- Minimum Film Formation Temperature - 3 Degrees Celsius
- Glue Viscosity - mPa.s 400/500
- Ph Value (20 Degrees Celcius) - 6-7.5 Ph
- Manual tilt - +/- 5 Degrees

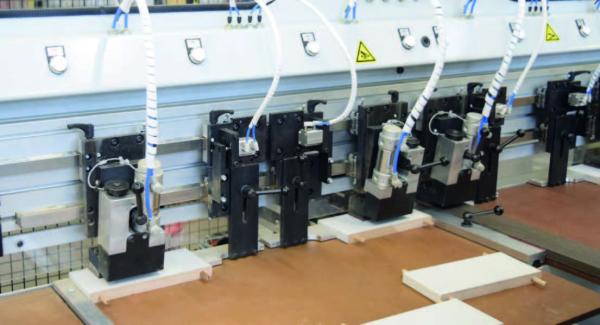

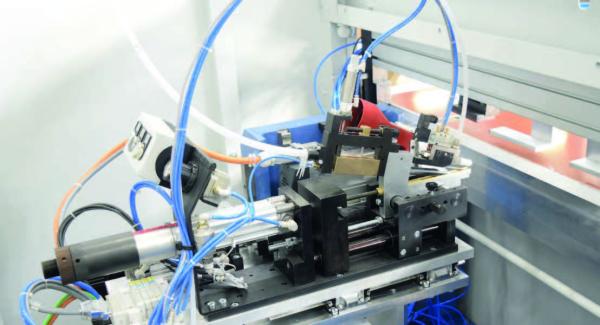

- Dowel Insertion Station
- Maximum Capacity of Dowel Tank - 5 Kg
- Minimum Distance between 2 Consecutive Dowels - 16mm
- No. of Dowel Inserts - 1
- Tolerance of Dowel on Diameter - +/- 0.1
- Tolerance of Dowels on Length - +/- 0.2
- Total Unit Power - 6 kW (8Hp)
- Full Load Current - 13 Amp
- Working Air Pressure: 6 Bar
- Safety Enclosure
- Push Button Controls
- HMI Control Panel
- Current Voltage - 460V 3Ph
