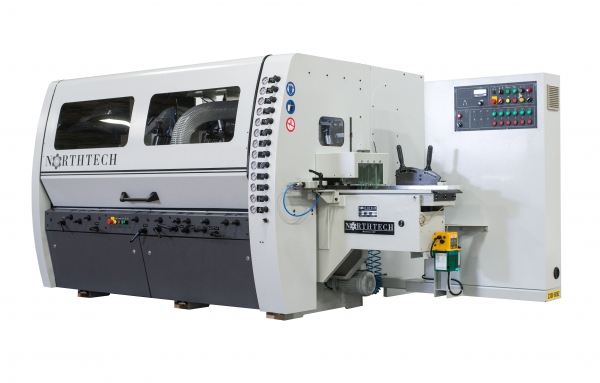

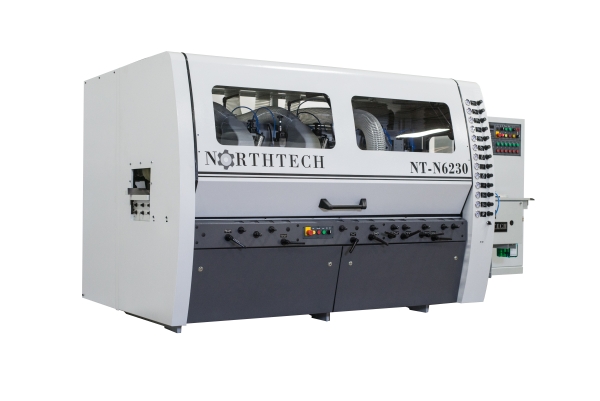

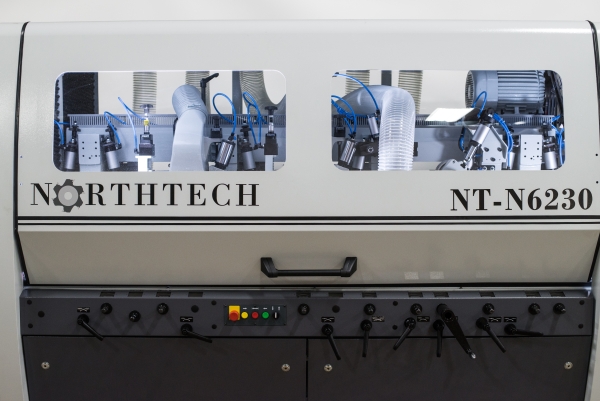

Northtech Model NT-N6230-1 Six-Spindle Moulder

• Northtech model NT-N6230-1 Six-Head Moulder
  SPINDLE ARRANGEMENT
• 1st: Bottom horizontal: 15HP, 6,000RPM, 1-13/16" spindle
• 2nd: Right vertical: 10HP, 6,000RPM, 1-13/16" spindle
• 3rd: Left vertical: 10HP, 6,000RPM, 1-13/16" spindle
• 4th: Top horizontal: 15HP, 6,000RPM, 1-13/16" spindle
• 5th: Top horizontal: 15HP, 6,000RPM, 1-13/16" spindle
• 6th: Bottom horizontal: 15HP, 6,000RPM, 1-13/16" spindle
  FEED SYSTEM
• Feeding motor: 7-1/2 HP with inverter
• Elevation motor: 1/2 HP
• Feeding speed: 20 - 118FPM
  PRODUCT DIMENSIONS USING FULL TOOL RANGE
• Width: 10mm - 230mm (3/8" - 9")
• Thickness: 7mm - 160mm (5/16" - 6-1/2")
• Minimum length: 300mm (12")
  FEATURES
• (1) Spindle positioning through individual digital controllers
• Infeed table length: 1300mm (51")

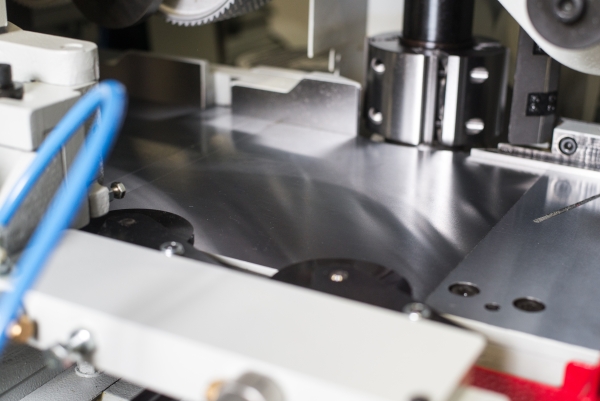

• Table is hard chrome plated
• (3) Powered bed rollers
• (1 set) Moulder heads (Included)

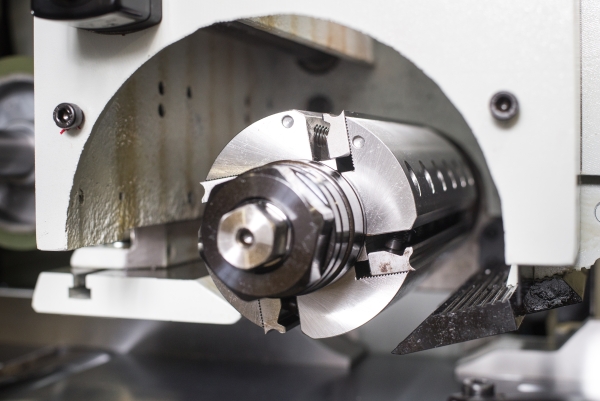

• (1) 5" x 9" helical insert head with 30x12 (2) sided inserts
• Horizontal: (3) 5" x 9"; 4 wing, 1-13/16" heads
• Vertical: (2) 5" x 4"; 4 wing, 1-13/16" heads
• • Dust collection: (6) 125mm (5") dust ports requiring
• 681 CFM @ each point of extraction
• Net weight: 9,039 lbs.
• Gross weight: 10,362 lbs.
• Machine dimensions: (L) 150" x (W) 83" x (H) 84"
• Packing dimensions: (L) 168" x (W) 84" x (H) 85"
• (1) Tool box
• All machines are tested at factory prior to shipment providing trouble free start up.
• (1) Day onsite start up and training included, tech travel expenses extra
