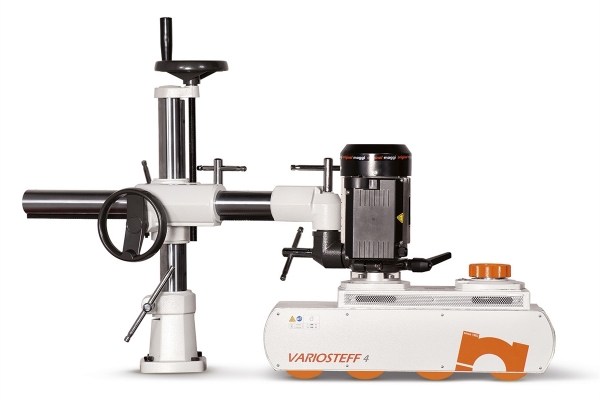

Steff Model Vario Steff4

• Steff Model Vario Steff4
• 4 rollers, variable speed from 9 to 59 FPM
• 1 HP motor; 4-3/4" roller diameter
• 2-1/4" roller width; speed adjustment system using a belt on a conical aluminum pulley
• turn knob for required speed without the need to change the position of the gears
• min - max plate indicates the rotation direction to obtain the required speed.
• Roller/Belt Vertical Range of Motion 1 inch.
• Electrostatic paint finish.
• Sintered case hardened gears.
• Bronze alloy main drive gear.
• Natural rubber, 60 shore hardness rollers/belts. (Polyurethane belts/rollers and steel rollers also available).
• Calibrated spring support for roller adherence.
• Available in 1PH 230V or 3PH 230V/440V
