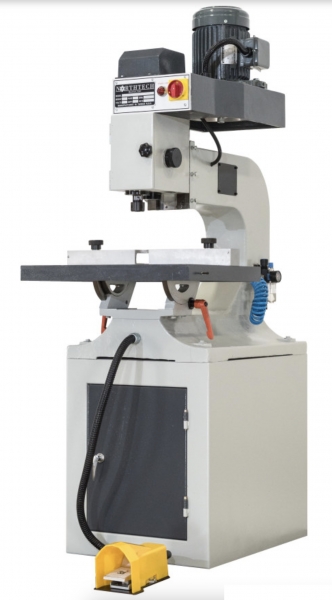

Northtech model NT-555 Overarm Pin Router

• Northtech model NT-555 Overarm Pin Router
• Features:
• Spindle Motor: available 3 HP single-phase 230V only, or 5 HP three-phase 230V only
• Spindle Speed: 18,000 RPM for single-phase model, 10,000 and 18,000 RPM for three-phase model
• Spindle Travel: pneumatic 3-3/8" vertical stroke
• Forward Tilting Table: 0 to 45-degrees
• Three depth-of-cut adjustments easily set with turret gauge
• Pneumatic foot control of spindle
• Adjustable plunge speed
• Oiler to facilitate smooth movement of spindle
  Standard Equipment
• Precision high speed spindle bearings
• 1/4", 3/8", and 1/2" guide pins included
• Guide fence with adjustable stop
• Blow gun and hose for detail cleaning
• Comes with tools and tool box
  Specifications:
• Table Size: 18" x 24"
• Table Size with Extensions: 40" x 24"
• Spindle to Table Distance: min. 1", max. 7-1/2"
• Distance Spindle to Column: 22"
• Vertical Head Adjustment: 3-3/8"
• Overall Dimensions: 40" x 24" x 71"
• Net Weight: 625 lbs.
