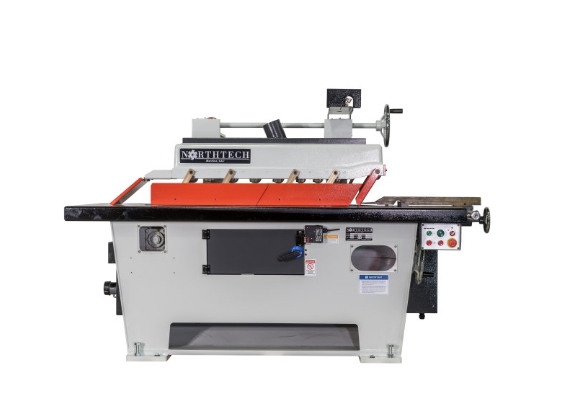

Northtech Model NT-SLR-18SC PRECISION STRAIGHT LINE RIP SAW
Machine Available
Stock #85454N
New- Northtech Model NT-SLR-18SC PRECISION STRAIGHT LINE RIP SAW
- FEED SYSTEM
- Saw motor: 20HP, 3PH 230V/460V
- Feed: 3HP variable feed range from 50 - 190 fpm
- PRODUCT DIMENSIONS
- Min. thickness: 3/16"
- Max depth of cut: 5" with 18" Ø blade
- Max. width of stock: (Blade to column arms) 26-1/4"
- FEATURES
- Chain and Race equipped with NT "True Track" adjustment
- Table size 83" x 40"
- Machine frame is constructed of a 1" thick base plate
- Solid steel frame with 1" thick column arms.
- Safety interlock on blade access door preventing operator entry while blade is spinning
- Blade is equipped with pneumatic braking system
- 2" arbor and large support bearings
- Glue line rip is 14ft -16ft on 4/4 stock at 50fpm
- Motors and electrical components are UL/CE rated.
- Industrial fence with cam lock quick release on rack and pinion glide.
- Passline: 32-3/4"
- Two rows of heavy duty kickback fingers.
- (8) large pressure rollers for optimum holding power
- An automatic mechanical oiling system with low level feed stop
- (1) Laser light, laser guard and mounting bracket are included.
- (1) Tool box
