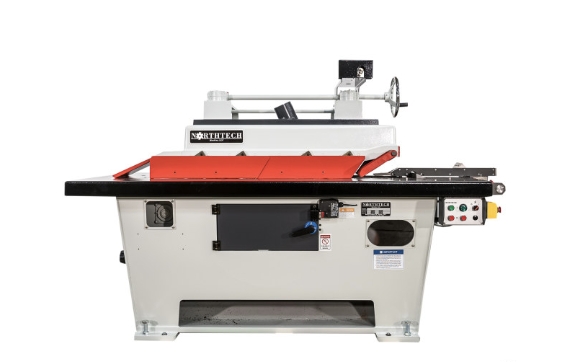

Northtech Model NT-SLR-20SC PRECISION STRAIGHT LINE RIP SAW

Machine Available
Stock #85455N
New
   CALL FOR PRICE

  • Northtech Model NT-SLR-20SC PRECISION STRAIGHT LINE RIP SAW
  • FEED SYSTEM
  • Saw motor: 25HP, 3PH 230V
  • Feed: 3HP variable feed range from 50 - 190 fpm
  • PRODUCT DIMENSIONS
  • Min. thickness: 3/16"
  • Max depth of cut: 5-15/16" with 20" Ø blade
  • Max. width of stock: (Blade to column arms) 26-1/4"
  • FEATURES
  • Chain and Race equipped with NT "True Track" adjustment
  • Table size 83" x 40"
  • Machine frame is constructed of a 1" thick base plate
  • Solid steel frame with 1" thick column arms.
  • Safety interlock on blade access door preventing operator entry while blade is spinning
  • Blade is equipped with pneumatic braking system
  • 2" arbor and large support bearings
  • Glue line rip is 14ft -16ft on 4/4 stock at 50fpm
  • Motors and electrical components are UL/CE rated
  • Industrial fence with cam lock quick release on rack and pinion glide
  • Passline: 32-3/4"
  • Two rows of heavy duty kickback fingers.
  • (8) large pressure rollers for optimum holding power
  • An automatic mechanical oiling system with low level feed stop
  • (1) Laser light, laser guard and mounting bracket are included.
  • (1) Tool box
