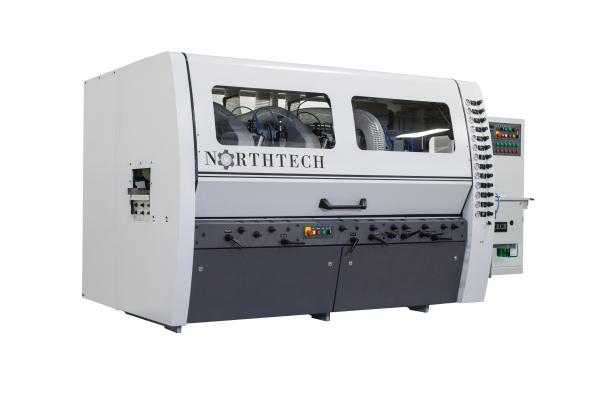

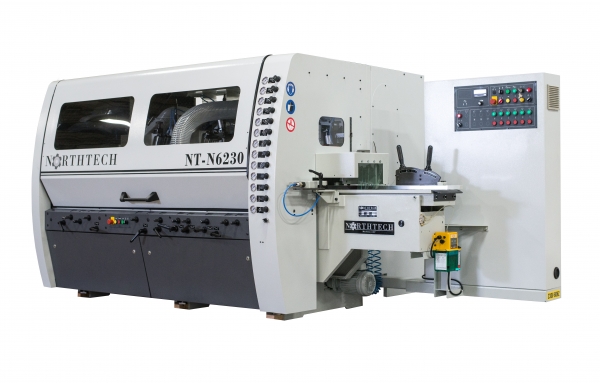

Northtech Model NT-N6230 Six Spindle Moulder

• Northtech Model NT-N6230 Six Spindle Moulder

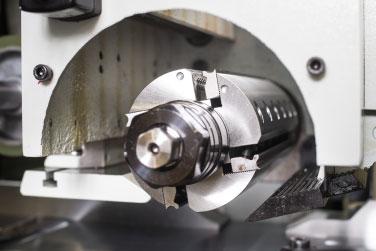

• Spindle Arrangement:
• 1st Spindle: Bottom Horizontal: 15HP, 6000RPM, 1-13/16" Spindle
• 2nd Spindle: Right Vertical: 10HP, 6000RPM, 1-13/16" Spindle
• 3rd Spindle: Left Vertical: 10HP, 6000RPM, 1-13/16" Spindle
• 4th Spindle: Top Horizontal: 15HP, 6000RPM, 1-13/16" Spindle
• 5th Spindle: Top Horizontal: 15HP, 6000RPM, 1-13/16" Spindle
• 6th Spindle: Bottom Horizontal: 15HP , 6000RPM, 1-13/16" Spindle

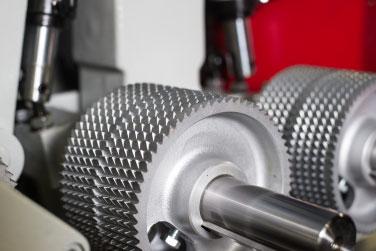

• Feed System
• Feed Motor: 7-1/2HP with Inverter
• Feed Speed: 19-110FPM
• Elevation Motor: 1/2HP
• 3 Powered Bed Rollers
• Chrome Plated Infeed Table
• Infeed Table Length: 51" (1300mm)
• Product Dimension
• Minimum Working Length: 12"
• Minimum Working Width: 3/8"
• Maximum Working Width: 9"
• Minimum Working Thickness: 5/16"
• Maximum Working Thickness: 6-1/2"
• Features

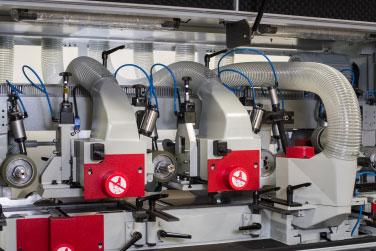

• (6) 5" Dust Ports requiring 681 CFM at each point of extraction
