Fimal Model PF530N 20" Jointer
Machine Available
Stock #331474N

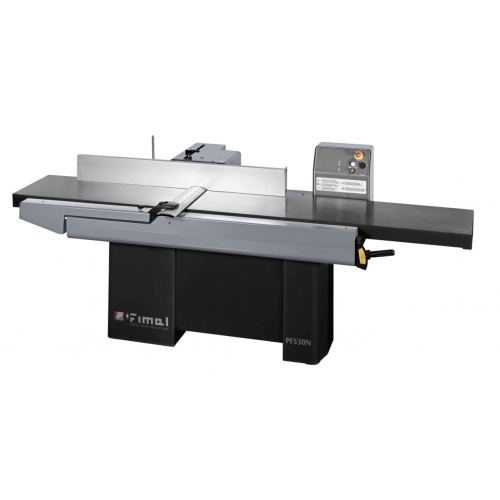

New- Fimal Model PF530N 20" Jointer

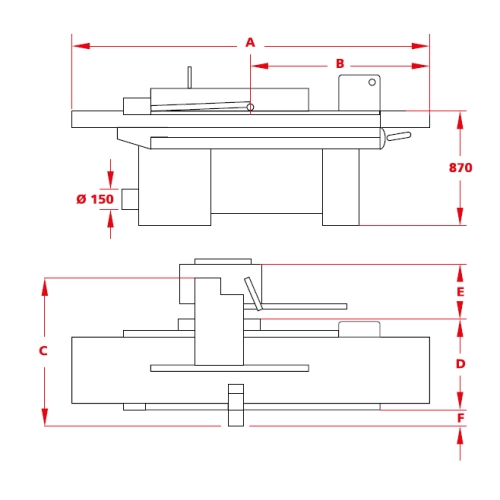

- Table Dimensions: 3000x530mm (~118-1/8"x 20-7/8")
- Infeed Table Length: 1800mm (~70-7/8"
- Cutterhead Size: 120mm(~4-3/4)
- Cutterhead Speed: 5000RPM
- Cutterhead Motor Size: 4kW (5.5HP)

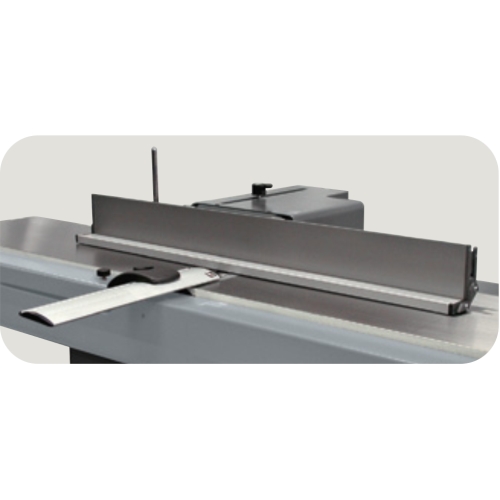

- Planer Fence: Extruded Anodized Aluminum, 0-45 Degree Tilt
- Cast Iron Planer Tables adjusted through parallelogram system

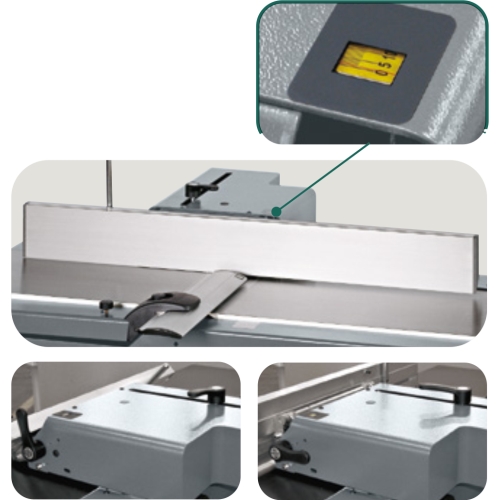

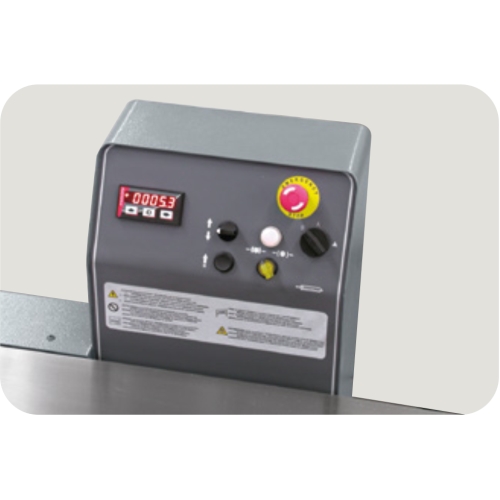

- Inlet Table adjustment and visualization: Manual movement with Metric Scale Display, One lever for displacement and unlocking
- Magnetic Gauge for knife adjustment

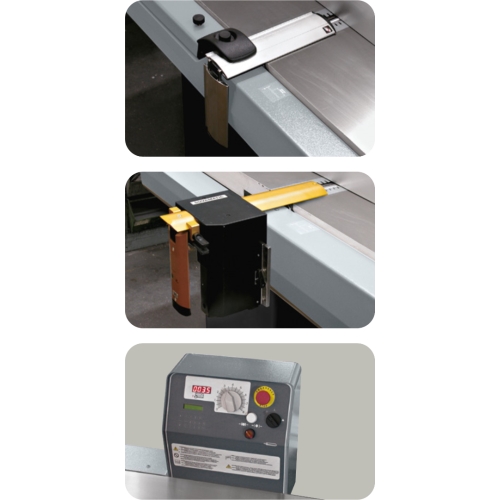

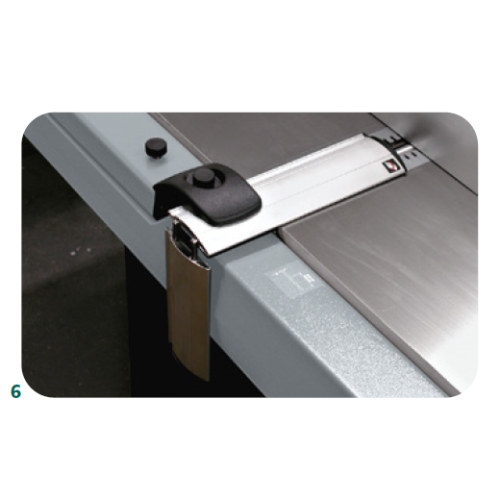

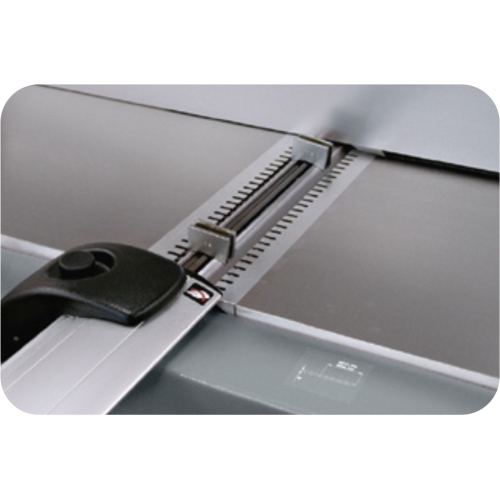

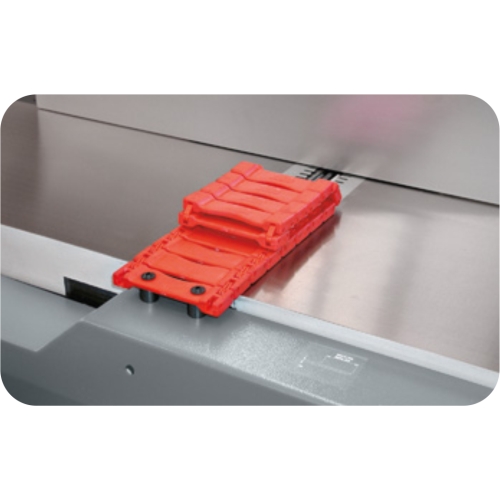

- Planer Shaft Guards
- Optional:
- Suction Hood
- Larger Capacity Motor: 7.5kW
- Wescott Mortising Chuck
- Electromagnetic Brake

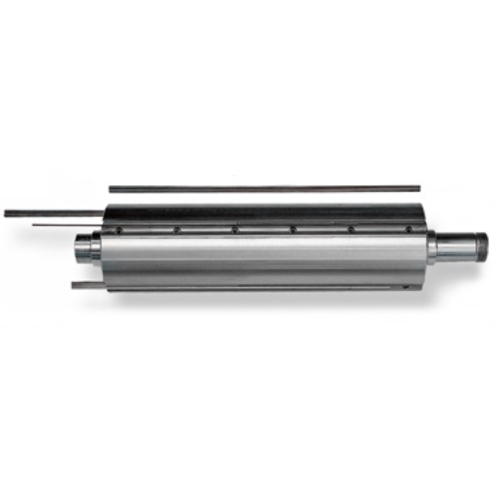

- Spindle with Terra Type Disposable Knives
- Narrow Piece Auxiliary Fence
- SUVA type Planer Shaft Guard
- Planer Fence with Pneumatic Lockings
- Automatic Positioning Device of Inlet table

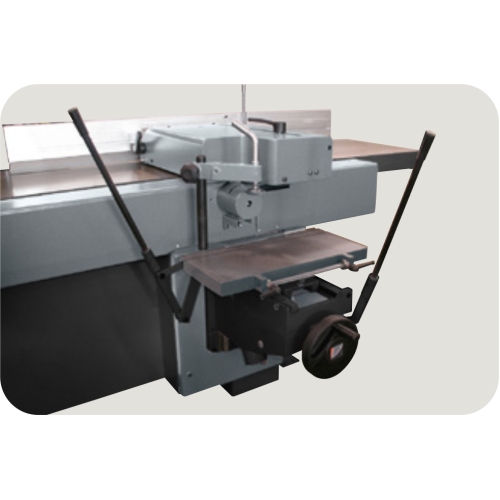

- Mortising Unit
- Overload Protection
