Fimal Model Concept 350 PLUS 3200 Panel Saw
Machine Available
Stock #825701N

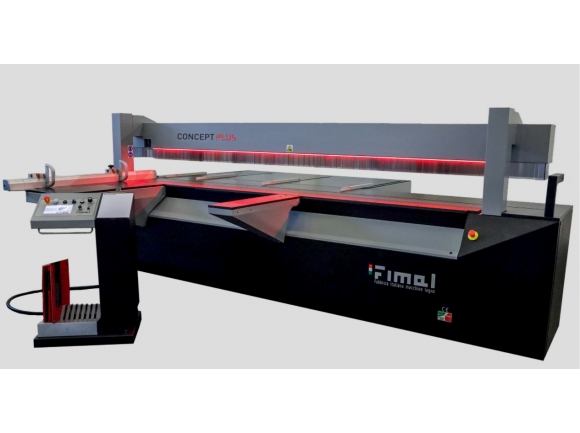

New- Fimal Model Concept 350 PLUS 3200 Panel Saw
- Squaring Length: 3200mm (~126")
- Blade Diameter: 300/350mm
- Blade Bore Size: 30mm
- Blade Projection @ 90 Degrees: 75/100mm
- Blade Projection @ 45 Degrees: 45/67mm
- Blade Speed: 4000 g/min
- Blade Carriage Speed: 40 mt/min
- Main Saw Blade Motor: 7.5HP (5.5kW)
- Reinforced Fixed Front Table and Squaring Fence
- Front Table with 2 reference supports and quick locking through Stud Bolts
- Easier Micrometric Fence Adjustment
- Dust Evacuation Slot Between Squaring Fence and Phenolic Table
- extension of Squaring Fence increased to 190mm
- Hinged Opening Door on top of machine for Inspection and Cleaning

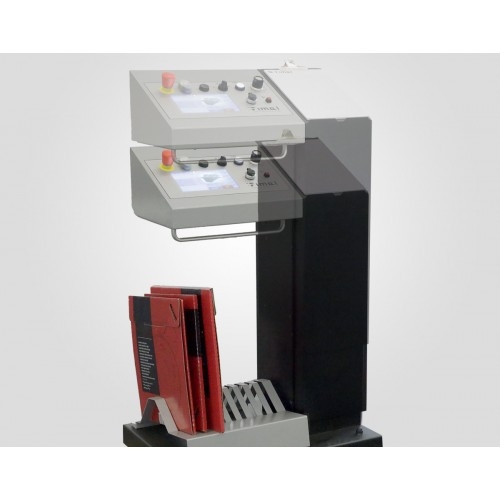

- Movable Control Pedestal
- Strong Telescopic Fence Extendable up to 2500mm with 2 mechanical stops
- Motorized Rear Stop and Programable Rotating Double Stop
- On Demand Third Stop for Parallel Cuts
