Ultimizers Model Ulti-Vision S4S Scanner with Duo-Drive 500GB High Speed Saw
Machine Available
Stock #201554

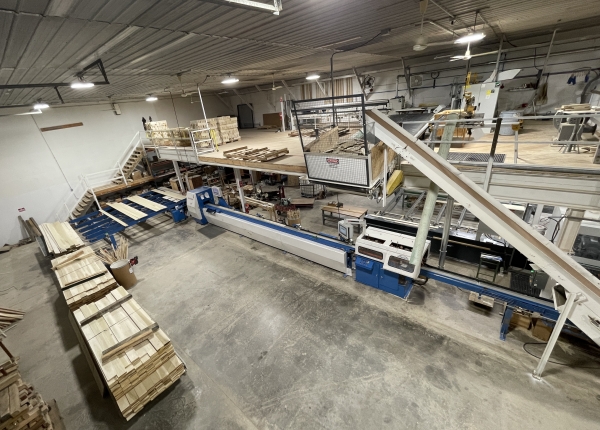

Used- Ultimizers Vision Based Optimizing Line for Material up to 7.5" Wide and up to 20' Long
- This is an S-4-S Scanner with 64Bit Software

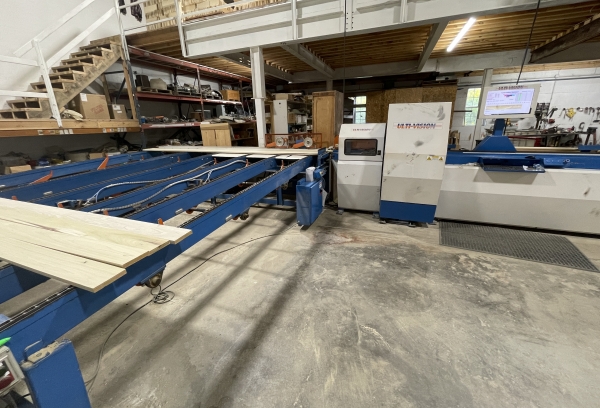

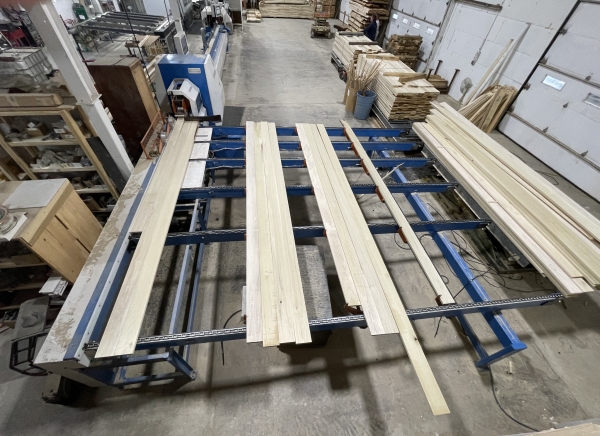

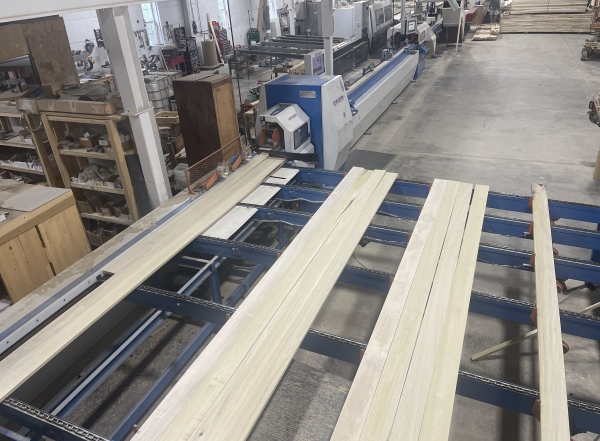

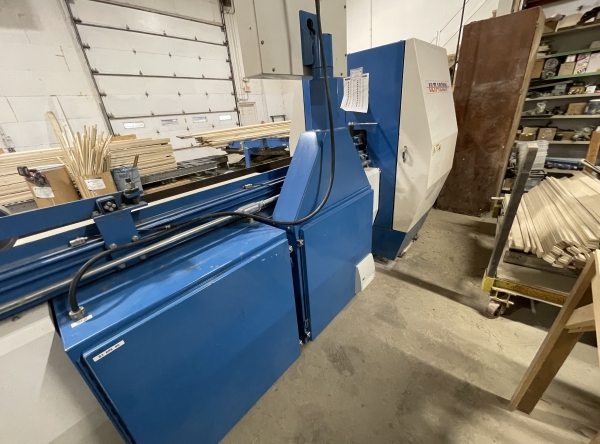

- ULTIMIERS LATERAL FEEDER DECK
- With Two (2) Top and Bottom Pinch rolls
- (7) chains approximately 18’ feet long and one pinstop set to help control fence pressure backlog
- The bottom pinch rolls are driven via an AC motor and controlled from the saw Beckhoff and touch screen
- Built and tested at 42” pass

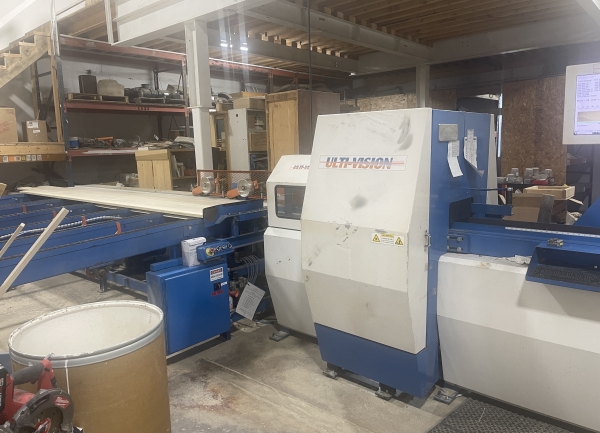

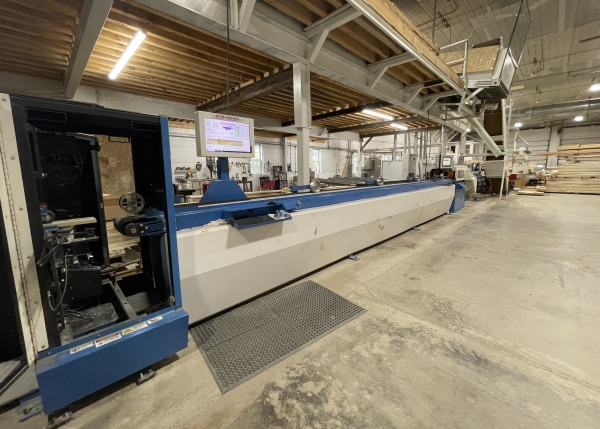

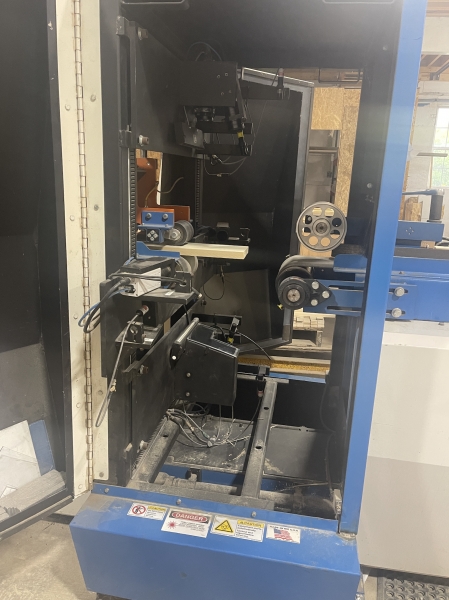

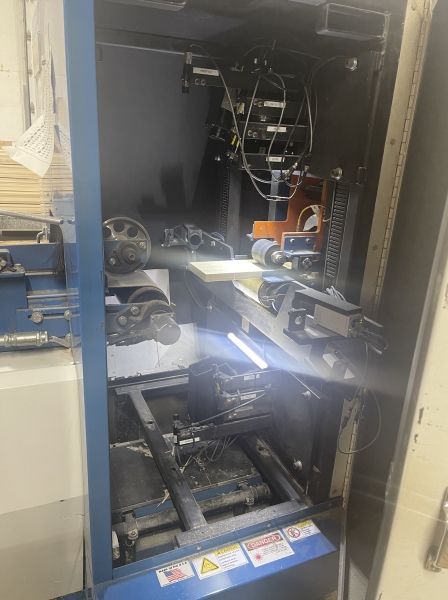

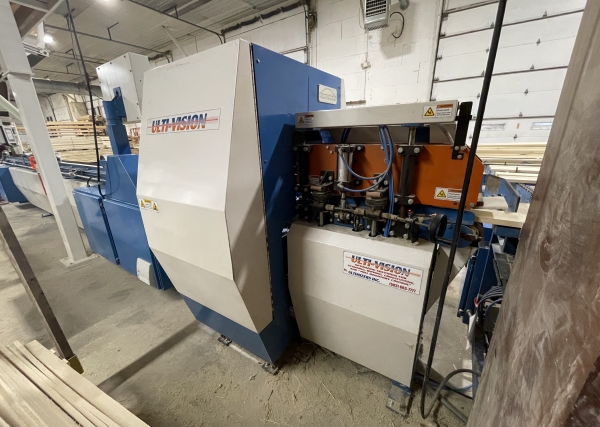

- ULTIMIERS "ULTI-VISION S4S SCANNER

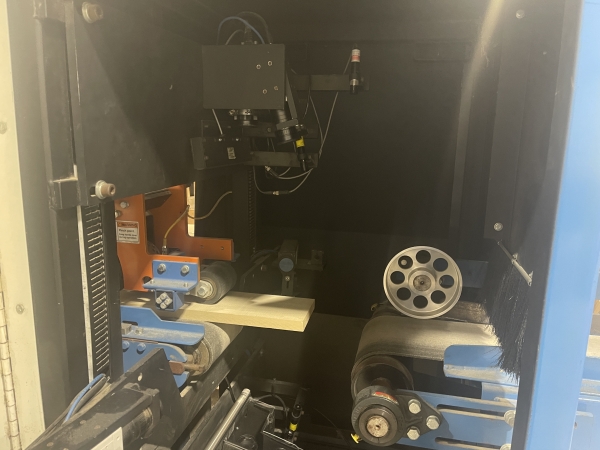

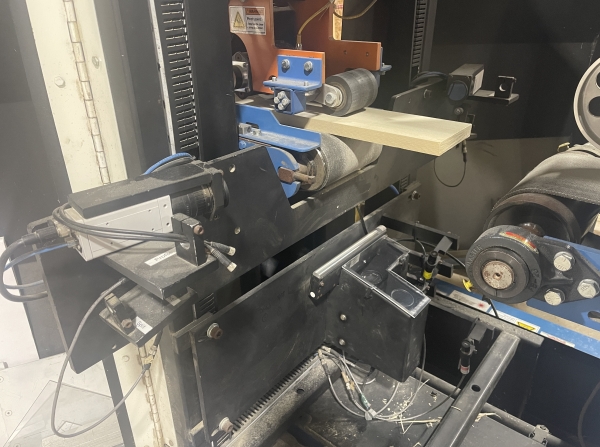

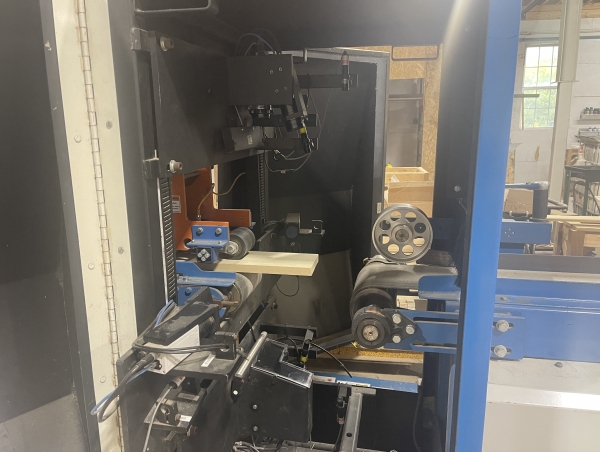

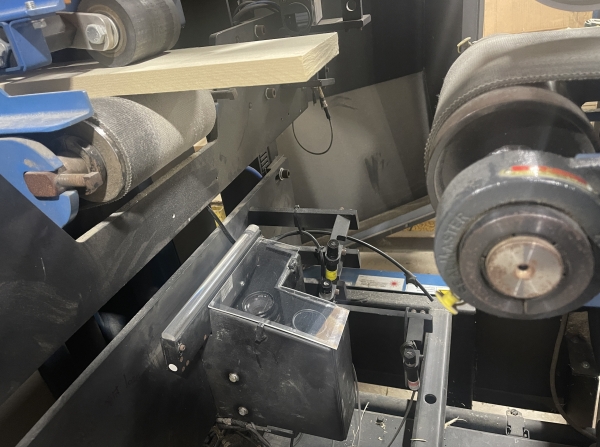

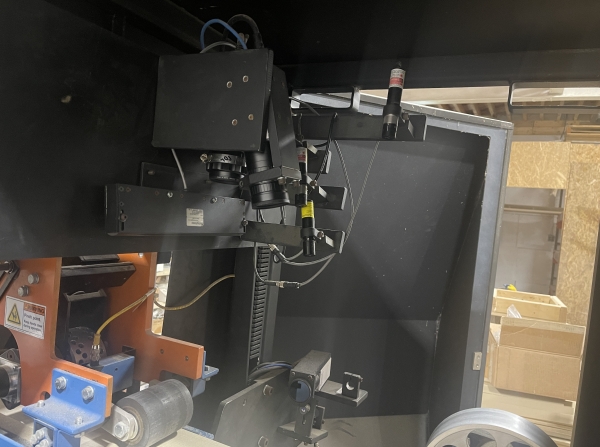

- Scans all 4 sides of the board automatically locating defects to be chopped out
- This scanner is capable of scanning for length, width, wane, holes, splits, mineral streaks, color, custom, and compound defects top and bottom and knots and rough on the sides
- The scanner can scan at a variable speed from 100 to our standard speed of 250 feet per minute

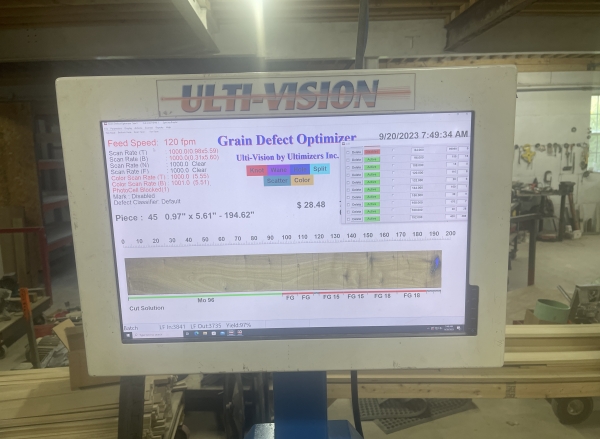

- The system includes the Ultimizers Inc. UV64 Scanner software, the computer, mouse, keyboard and monitor all in an enclosed cabinet
- In addition to the UV64 software the neural network software is also included to train the system to see custom defects
- Frame built and tested at 42” pass

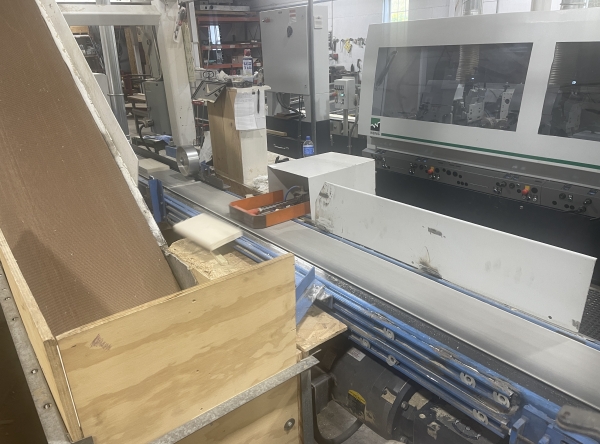

- ULTIMIZERS 8" WIDE "SMART-BELT"
- Conveyor for a Vision System Running 20’ Lumber
- The Smart belt conveyor has up to 21 photocells mounted on the fence line and a variable speed drive to feed boards as close together as possible without butting
- This is also the scanner conveyor

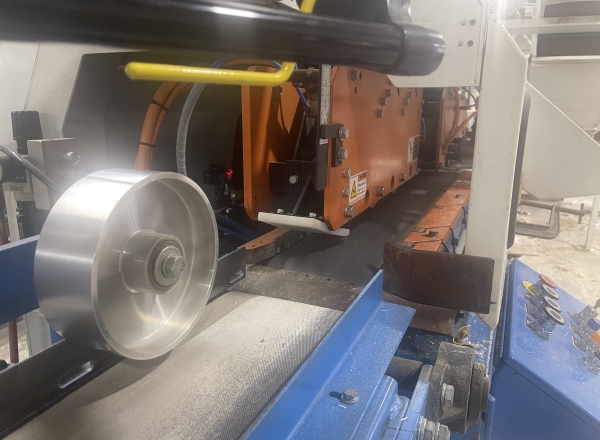

- It is 1 belt that wraps under the scan frame to insure that the belt speed is always the same both before and after the scanner
- This has a heavy duty 3 roll hold down system before the scanner and an encoder on the conveyor that feeds directly to the cameras and computer give our scanner the best length accuracy and consistency available on the market today
- The frame is a heavy duty steel tube frame with all controls accessed from the saw touch screen

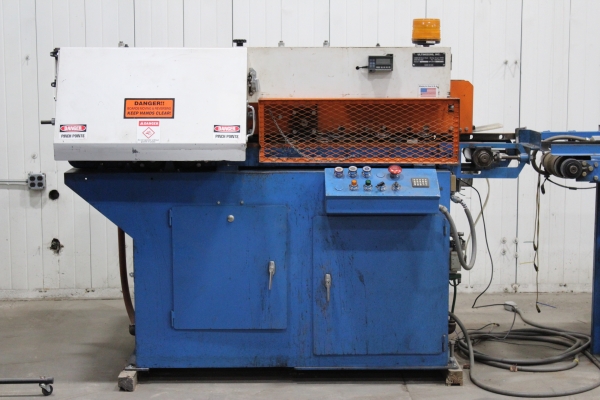

- ULTIMIZERS DUO-DRIVE 500GB

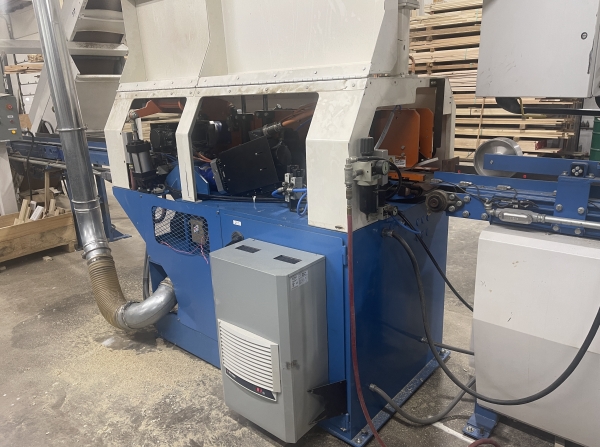

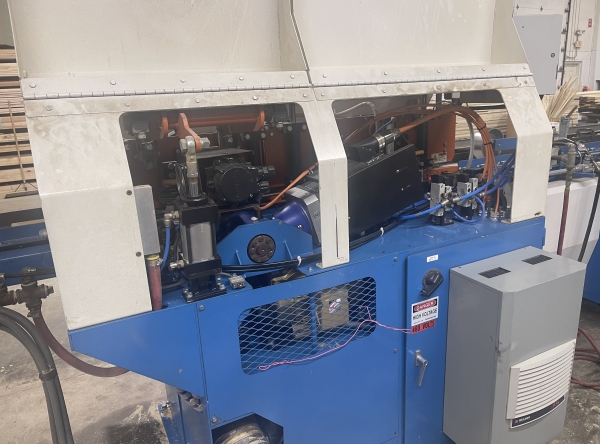

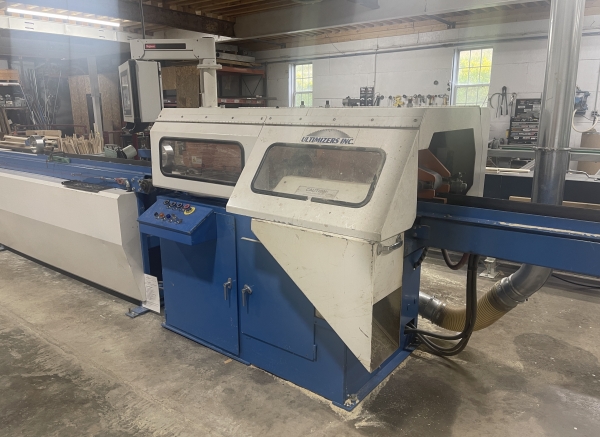

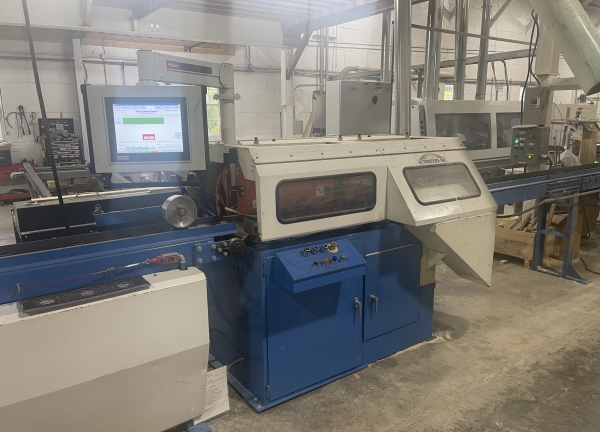

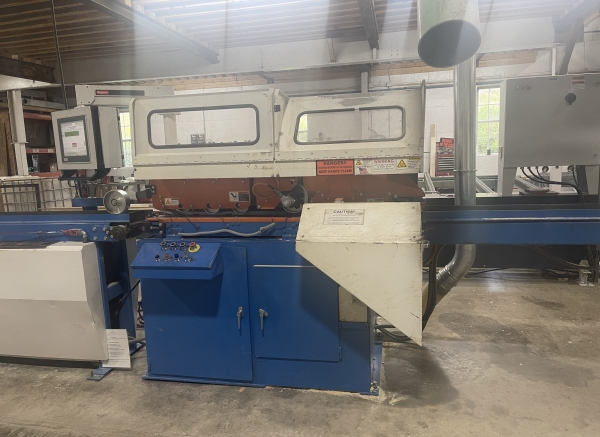

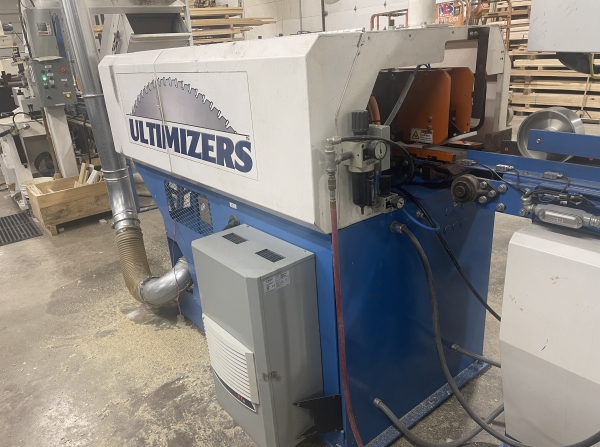

- The “Duo-Drive 500GB” is a High Speed Automatic Chop Saw

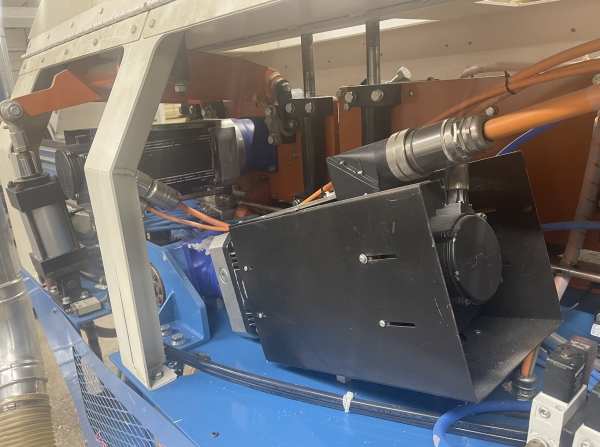

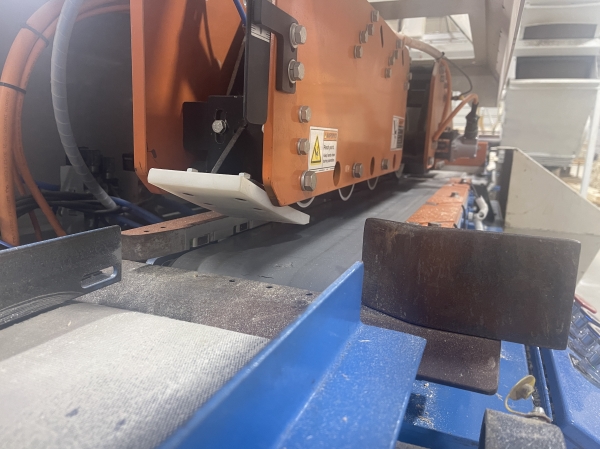

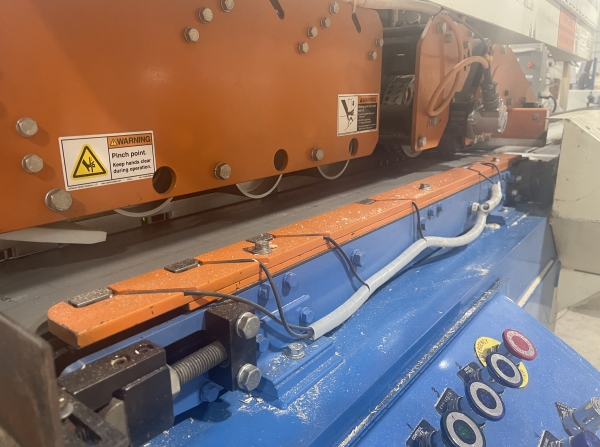

- This saw has a patented top and bottom drive belt system which is driven by 2 individual AC servo motors
- While belt speeds are matched to average part length, it has the ability to reach 900 FPM in an 12” cut
- As many as 3 short FJ cuts per second and 8,000LF an hour have been witnessed in real world production
- We are able to maintain accuracy at these high speeds due to an overhead encoder roll running directly on the surface of the wood
- The arbor motor is 10 HP and the crank motor is a 21 peak HP (aprox.) AC servo motor
- The arbor arm is the strongest and most rigid on the market insuring quality square cuts
- After the cut there is a drop roll assembly to remove small waste immediately insuring parts are sorted correctly downstream

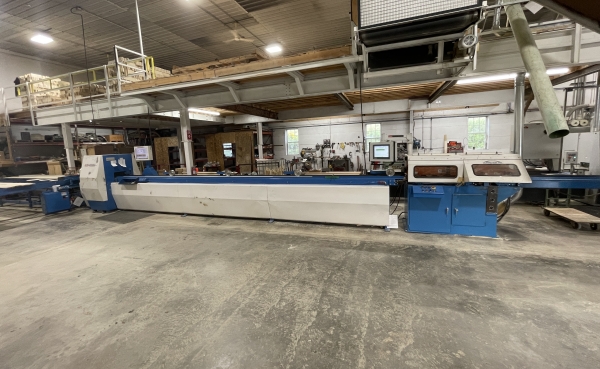

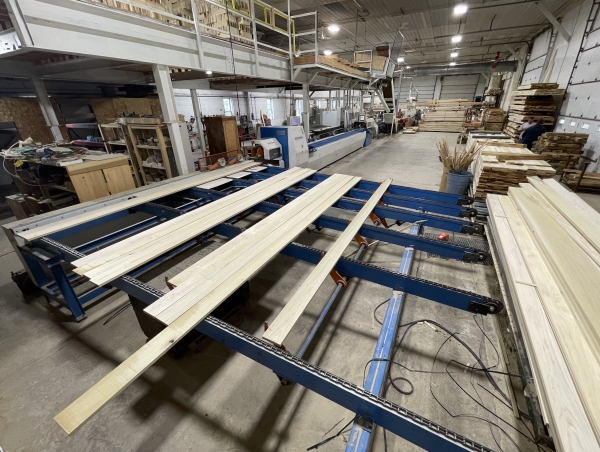

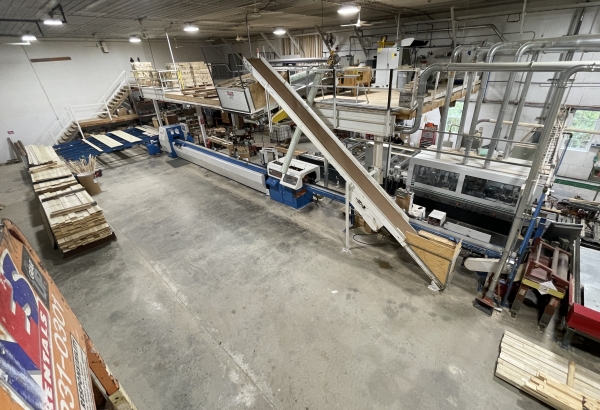

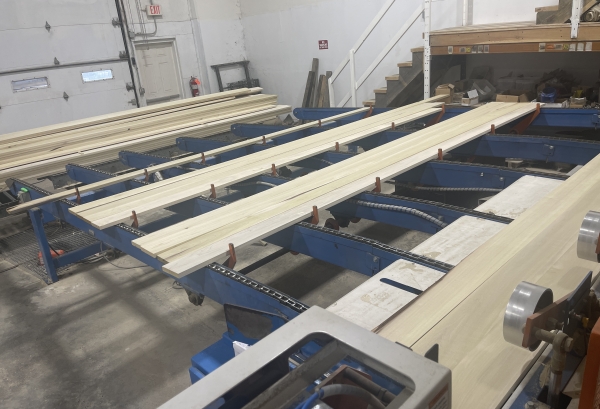

- LINEAR SORTING CONVEYOR The conveyor is approx. 145’ long overall with, (1) Waste Blow off, (6) diverters for longer parts, (16) finger joint punch offs and (1) over the end sort location

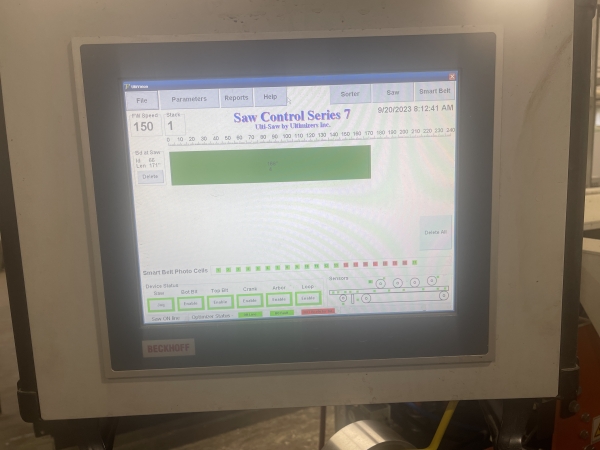

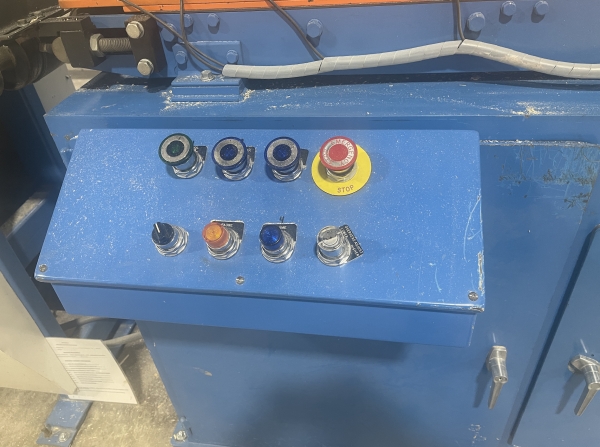

- The sorter controls are in the saw Beckhoff and control settings are via the saw touch screen
