Northtech NT-SPS8 Sliding Panel Saw
Machine Available
Stock #911643N

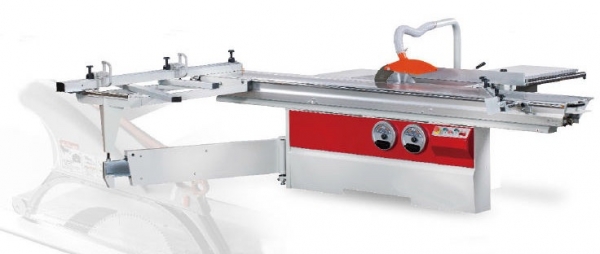

New- Northtech NT-SPS8 Sliding Panel Saw
- Main Motor: 7.5HP
- Main Saw Blade Diameter Max: 14"
- Main Saw Blade Bore: 30mm
- Max Cutting Height with Blade at 90 Degrees: 102mm (4")
- Max Cutting Height with Blade at 45 Degrees: 70mm (2.7")
- Main Blade Speed: 3000/4000/5000/6000 RPM
- Scoring Saw Blade: 120mm (4.7")
- Scoring Motor Power: 1HP
- Scoring Motor Speed: 8000RPM
- Cutting Width: 51"
- Saw Blade Extension: 370mm (14.5")
- 300mm (12" Blade Included)
- Manually Controlled Width Adjustment
- Manually Controlled Saw Height Adjustment
- Manually Controlled Tilt Adjustment
- Manually Controlled Score Saw Height Adjustment
- Manually Controlled Score Saw Alignment
- Digital Display for Blade Tilt
- Digital RPM Display
- Table Dimension: 23"x39"
- Sliding Table: 15"x102"
- Voltage: 230/460V 3PH
