C.R. Onsrud Model 145M12D "M Series" CNC Router-READY TO SHIP
Machine Available
Stock #571301N

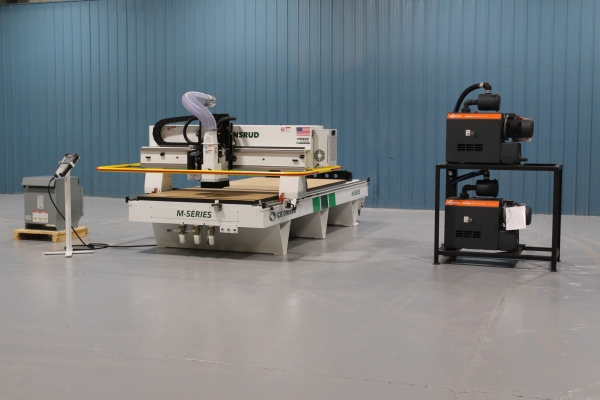

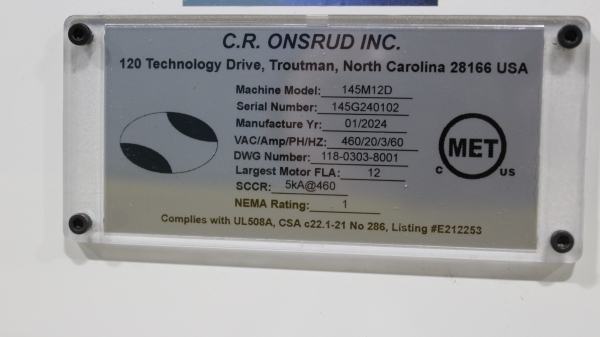

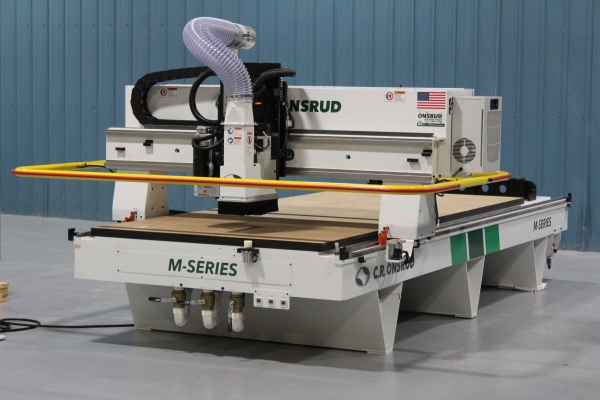

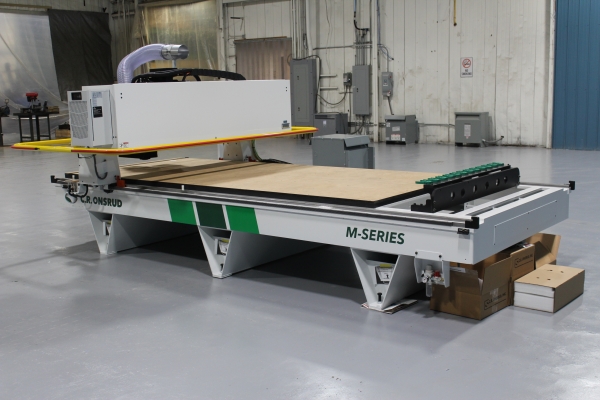

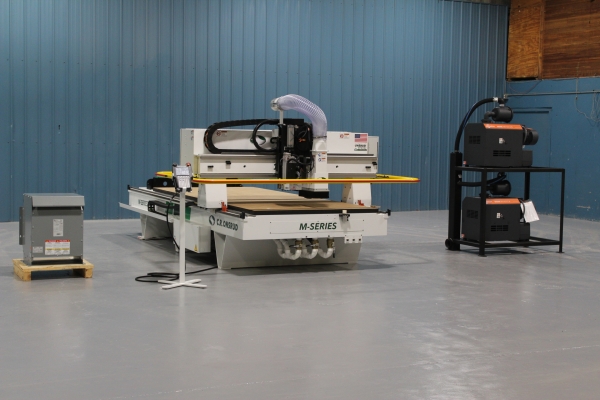

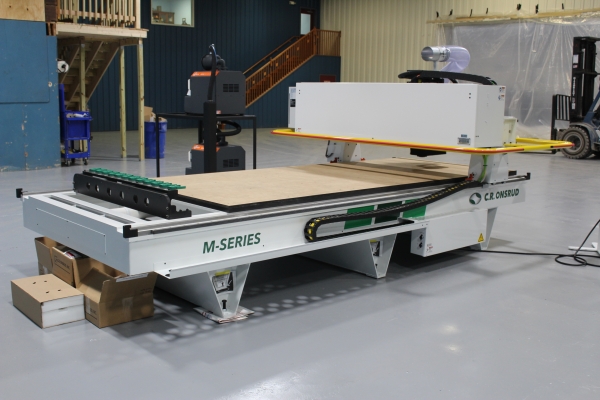

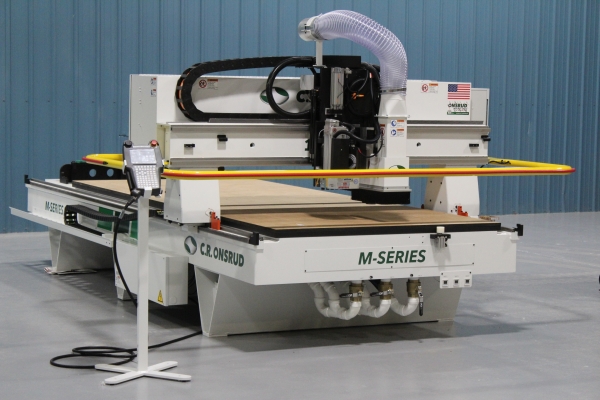

New- C.R. Onsrud Model 145M12D "M Series" CNC Router
- The M Series may be the smallest moving gantry CNC router in the C.R. Onsrud line-up, but don't be fooled into thinking it's any less of a workhorse than bigger machines in our product line. C.R. Onsrud incorporates the same detailed engineering, workmanship and quality of materials into every machine we manufacture – no matter how small or large. The M Series CNC router boasts rigid frame construction, highly responsive drive mechanisms, and many more of the top-end features you'd expect to find on our bigger models. Our competitors may say we've over-engineered this model, but we just happen to think they've under-engineered theirs. We want you to have a CNC machine you can grow your business with, not just get by for now. With the M-Series, we give you the power, precision, speed and strength to do big things with this robust CNC platform, without any fears your machine gives out before you do.
- Standard Features

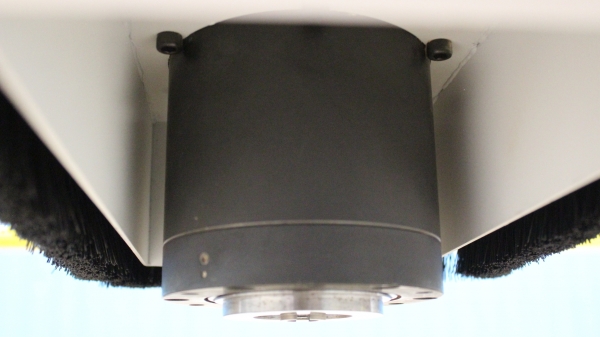

- 4-Pole, reversible, 24,000 RPM High Torque Spindle
- HSK-63F Spindle Taper and Tool Holders, with 1 inch (25mm) collet capacity
- Over 12 Inches of Z-Axis Clearance & 11 inches of Z-Axis stroke
- Finite Element Analysis used in Engineering entire frame
- FEA Engineered, Heavy-wall, All-Steel Bridge, Vertical Columns, & Table Support Base

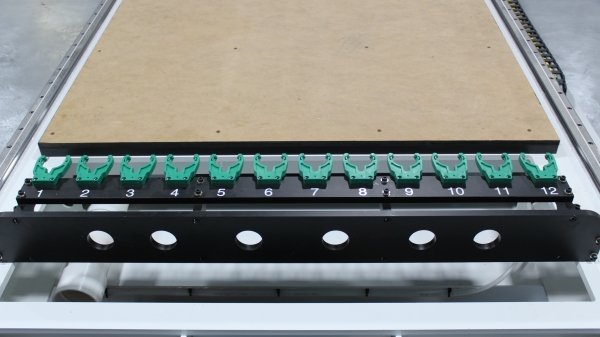

- 12 Position Fixed Rack Style Automatic Tool Changer

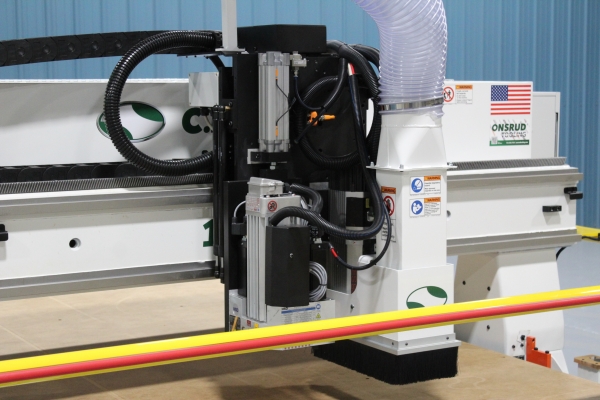

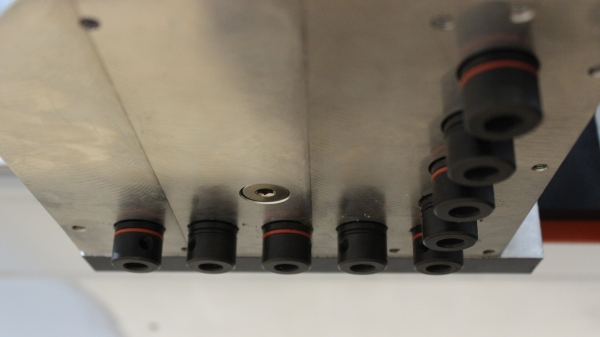

- 9 Spindle Drilling Block Package - Includes 9 independent or simultaneous firing vertical spindles arranged to drill up to 5 holes at a time in the X axis or 5 holes at a time in Y axis
- Compact Design Saves Valuable Shop Floor Space
- Intelligent Design Allows for Easy and Unrestricted Access to All Sides of the Machine
- Efficient and Effective Integrated Dust Transition that Only Requires a 6 inch Dust Hose
- C.R. Onsrud High-Flow Universal Vacuum Table System with Low Vacuum Sensing
- Comes Equipped with Choice of Flow Through or Dedicated Spoil Board

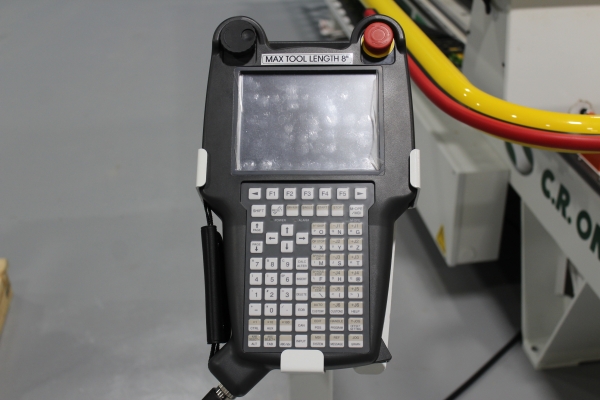

- FANUC, OSAI, and B&R control options
- 4-Port Ethernet Connection, USB, and Serial Connectivity, for Easy Network Integration
- Full 3D capability with Helical Interpolation
- Machine Specifications
- Table Size: 145" x 61"
- Z Clearance:12"
- X-Axis Travel: 145"
- Y-Axis Travel: 78"
- Z-Axis Travel: 11"
- Aproximate Footprint: 19' x 9.5'
- Machining Speed: 1400ipm
- X & Y Rapid Traverse: 2500imp
- Standard Spindle: 12HP, 24,000rpm
- Tool Shank: HSK 63F
- Standard Tool Capacity: 12

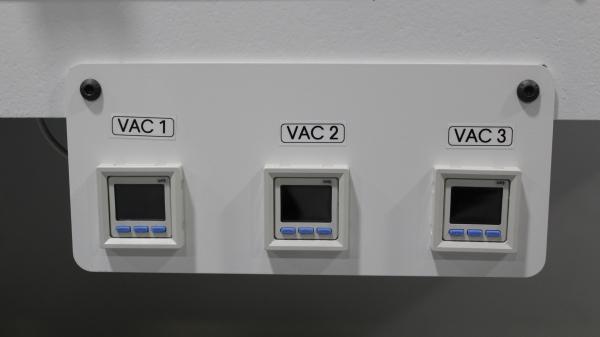

- Standard Vacuum Zones: 3

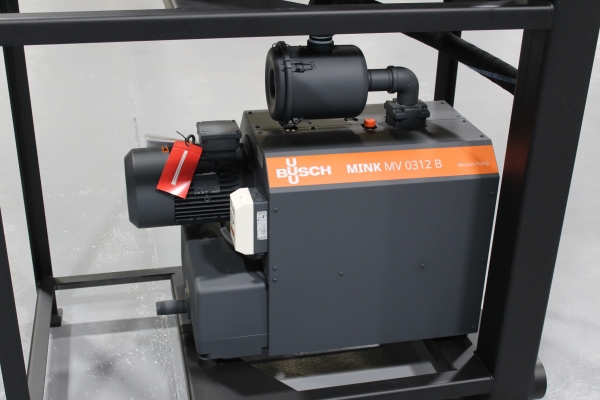

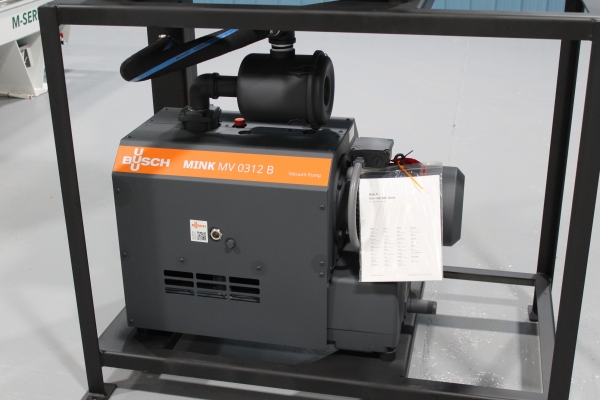

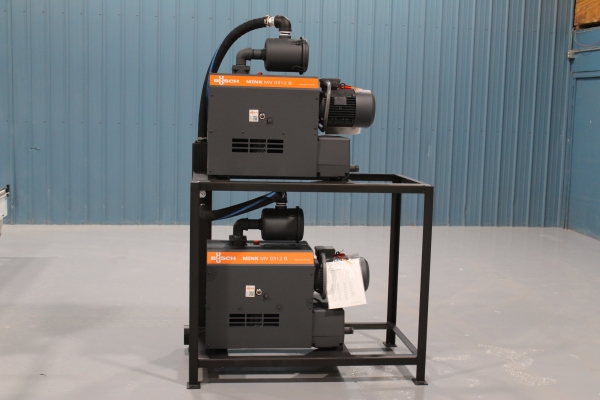

- Includes Two (2) Busch MV0312 Rotary Claw Vacuum Pumps - 8.7HP / 6.5kW Claw Vacuum Pump - Capacity: 203 SCFM open flow. Maximum vacuum: 25.5 in-HgV
