Friulmac MDF Wrapped 5 Piece Kitchen Cabinet Door Low-Volume Cell
Machine Available
Stock #19203N
New- Friulmac MDF Wrapped Kitchen Cabinet Door Low Volume Cell
- Cell Consists of Stock Numbers 19201N, 19202N, and 22516N

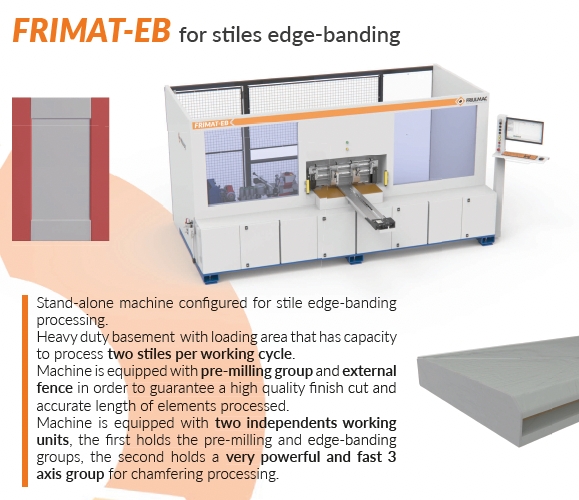

- Friulmac Frimat-EB
- Stand-Alone Machine Configured for Stiles Edgebanding Processing
- Working Dimensions:
- Min-Max Length: 3.5" - 59"
- Min-Max Width: 1.5" - 7.9"
- Min-Max Thickness: 0.5" - 1.5"
- Working Units:
- Max Roll Diameter: 2.625"
- Independent Glue Spreader: Glue Type - EVA
- Automatic Feed Speed Syncronization
- Pneumatic Guillotine
- Automatic Edge Detection
- Rubber Roll Edge Applicators
- 3 Steel Rolls Edge Fixing
- Min-Max Edge Thickness: 0.3mm - 3mm
- Max Feed Rate: 49.2 Ft/Min
- Cutting Accuracy @ 49.2 Ft/Min: +/- 3mm
- Min-Max Edge Height: 14mm - 45mm
- Min Edge Length: 60mm
- Total Unit Power: 27 kW
- Full Load Power: 52 Amp
- Working Air Pressure: 6 Bar
- Push Button Controls
- HMI Control Panel
- Safety Enclosure
- Current Voltage: 460V 3PH

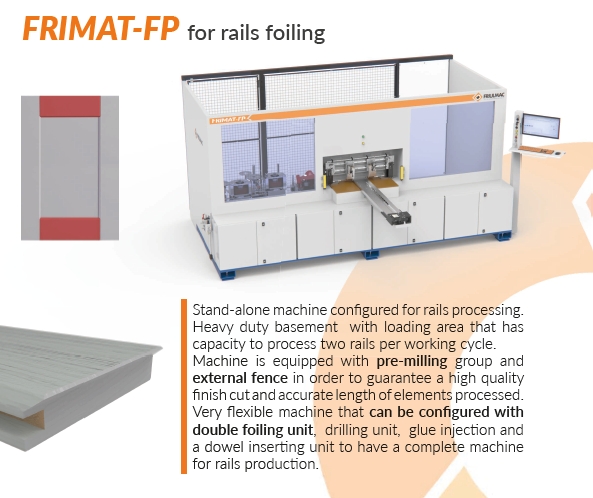

- Fruilmac Frimat-FP-3WS
- The Purpose of the machine is to perform precision machining such as milling or mortising of Profiled-Wrapped Cabinet Door Rails, plus Foiling
- Working Dimensions
- Min-Max Length: 2"-59"
- Min-Max Width: 1.5"-7.9"
- Min-Max Thickness: 0.5-1.5
- Working Units:
- Upper/Lower Edge Units (CNC): Electric Motor - 5 kW (6.7HP) @ 9000-12000.
- Thermoprinting Unit T "Borgonovo" (2nd & 3rd Station)
- External Diameter - 200mm (7.875")
- 80 Shore Buffer Diameter - 190mm (7.5")
- Copier Diameter - 200mm (7.875")
- No. Resistances - KW 0.5x6
- Rotation Motor Unit Power - 0.09 kW
- Motor Power - 0.09 kW
- Pre-Torque Head Motor Power - 0.22 kW
- Total Machine Power - 13 kW
- Full Load Current - 24 Amp
- Working Air Pressure - 6 Bar
- Pedal Safety Switch.
- Push Button Controls
- HMI Control Panel
- Safety Enclosure
- Current Voltage: 460V 3PH

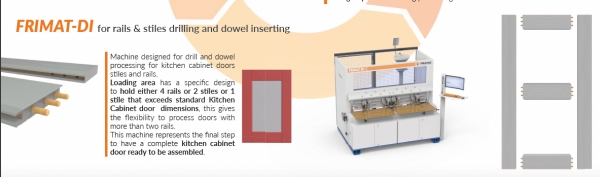

- Friulmac Frimat-DI
- Specifically Designed for Drill and Dowel Processing for Kitchen Cabinet Doors Stiles & Rails
- Loading Area Specifically Designed to Hold Either Four Rails, Two Stiles, or One Extra Long Stile
- Working Dimensions
- Min-Max Length: 2.5" - 59"
- Min-Max Width: 1.5 - 38"
- Min-Max Thickness: 0.5" - 1.5"
- Working Units:
- Upper/Lower Edge Units (CNC) - 1.5 kW (2HP) @ 9000-12000 RPM
- Glue Insertion Unit R-4
- Tank Capacity: 2 Kg
- Glue Type: Ac. Vinile
- Minimum Film Formation Temperature - 3 Degrees Celsius
- Glue Viscosity - mPa.s 400/500
- Ph Value (20 Degrees Celcius) - 6-7.5 Ph
- Manual tilt - +/- 5 Degrees
- Dowel Insertion Station
- Maximum Capacity of Dowel Tank - 5 Kg
- Minimum Distance between 2 Consecutive Dowels - 16mm
- No. of Dowel Inserts - 1
- Tolerance of Dowel on Diameter - +/- 0.1
- Tolerance of Dowels on Length - +/- 0.2
- Total Unit Power - 6 kW (8Hp)
- Full Load Current - 13 Amp
- Working Air Pressure: 6 Bar
- Safety Enclosure
- Push Button Controls
- HMI Control Panel
- Current Voltage - 460V 3Ph
