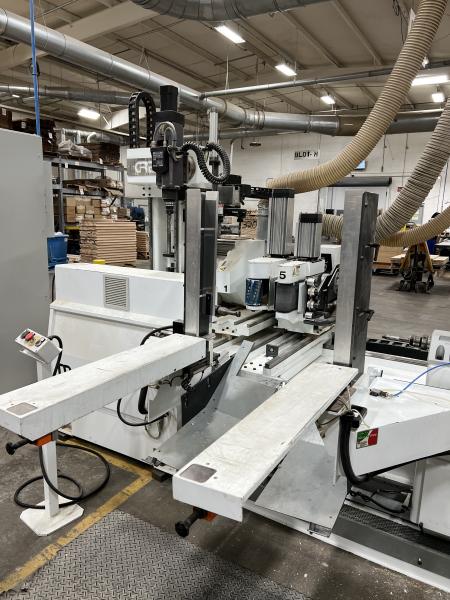

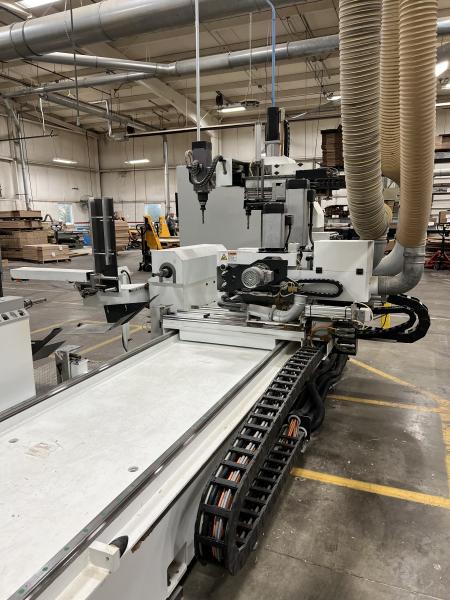

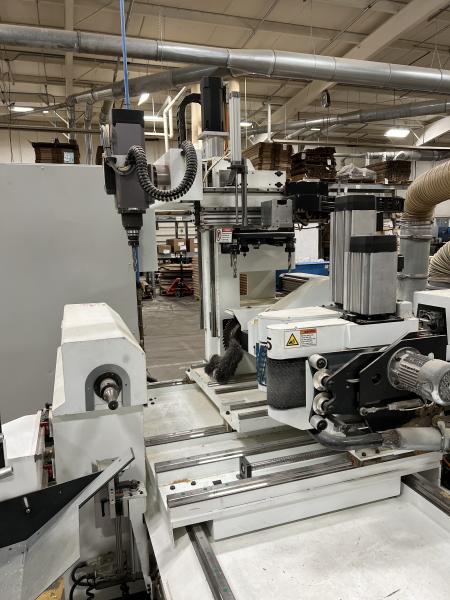

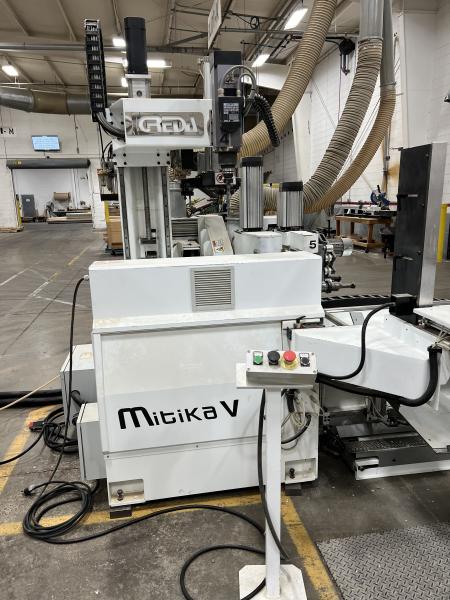

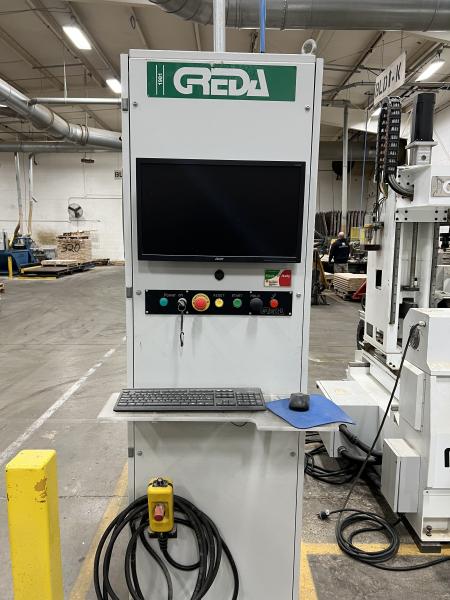

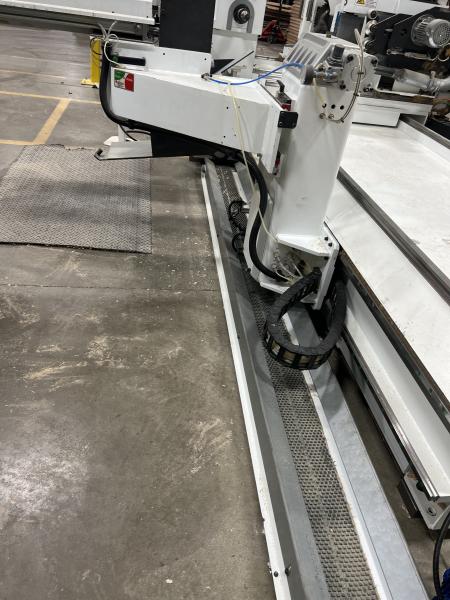

Greda Model Mitika V 1500 Machining Center

• Greda Model Mitika V 1500 Machining Center
• Technical Data:
• X-Axis Working Stroke: 2700mm
• Y-Axis Working Stroke: 375mm
• V-Axis Working Stroke: 650mm
• Z-Axis Working Stroke: 630mm
• Max Working Diameter: 500mm
• Max Working Length: 2500mm
• B-Axis ( Electrospindle): +/-90 Degrees
• A-Axis (Lathe): Endless
• Max Advancing Speed in Rapid Mode: 75 M/Min
• Vertical Sanding Unit: 0.5kW (0.67HP) 3,000RPM
• Horizontal Sanding Unit: 4kW (5HP) 3,000RPM
• Cutting Unit: 11kW (15HP) 9,000RPM
• Turning Unit: 11kw (15HP) 4,500RPM
• Working Units:
• 4-Axis Operating Unit:
• 11kW Electrospindle (15HP) 24,000RPM
• Electrospingle Tilting: +/- 90 Degrees
• 12 Position Tool Changer - HSK F 63
• 11 kW Inverter
• Vertical Sanding Unit:
• 0.5kW (.67HP) Motor - 3000RPM
• Independent Middle Rollers for Narrow Radius - 40mm
• Sanding Belt Development: 850mm
• Horizontal Sanding Unit:
• 4kW Motor - 3000RPM
• Tampon Diameter: 100m
• Tampon Height: 180mm
• Tampon Shaft Diameter: 30mm
• Oscillating Sanding Belt
• Sanding Belt Development: 2500mm

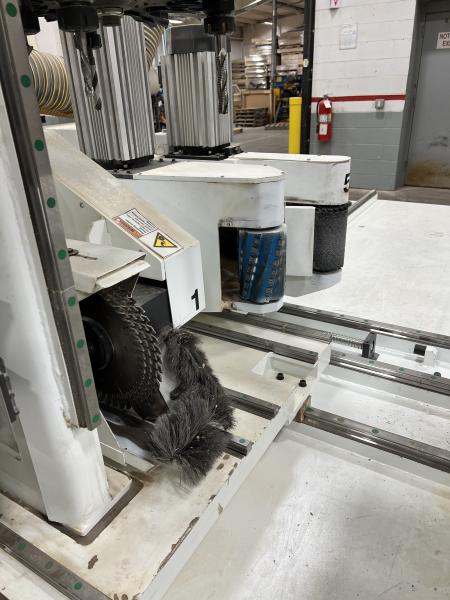

• Cutting Unit:
• 11kW (15HP) Motor - 9000RPM
• 11kW Inverter
• Cutting Diameter: 125mm
• Cutting Height: 180mm
• Shaft Diameter: 40mm
• Vertical Turning Unit:
• 11kW (15HP) Motor - 4500RPM
• 11kW Inverter
• Saw-Blade Max Diameter: 300mm
• Saw-Blade Shaft Max Diameter: 35mm

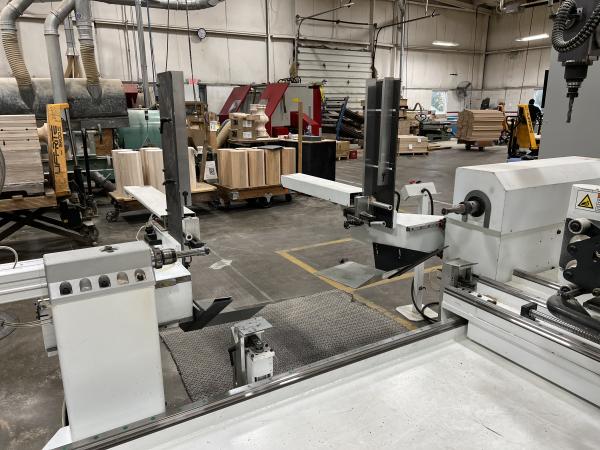

• Lathe System:
• Fill NC-Controlled Centre and tailstock device:
• Max Loading Piece Diameter: 500mm
• Endless Rotation as Interpolating Axis (A-Axis)
• Rotation Speed from 0-1000RPM
• Automatic Loading/Unloading System
• Min/Max Loading Length: 250/2000mm
• Min/Max Section of piece to be loaded (automatic mode):40x40mm/150x150mm
