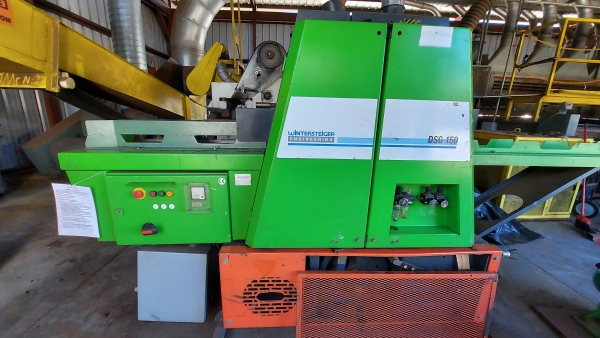

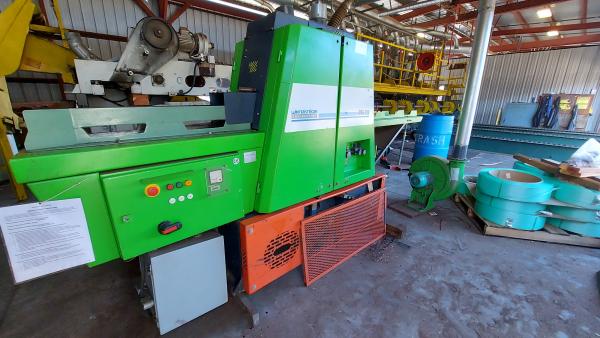

Wintersteiger DSG 150/201 Eco Thin Cutting Frame Saw

• Wintersteiger DSG 150/201 Eco Thin Cutting Frame Saw
• Side and center guides are equipped to saw two blocks simultaneously
• Feed speed 1-5 FPM 450 Strokes / min
• Cutting Height & Width. Cutting width (side guide) 60 mm (2.36”)-150 mm (5.9”). Center guide 2 channels max, 72.5 mm (2.85”) using 7.5 mm guide or with (5) channels max 24.5 mm (.965”) using variable block. Minimum length 300 mm (11.81”) block length.
• Cutting Accuracy +/- .02 mm

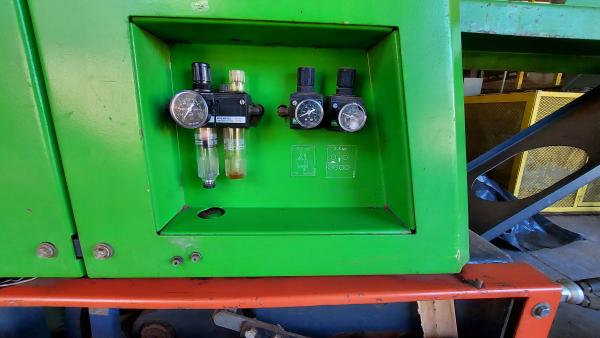

• Air Jet module cleans the lamellas and saw blades during the sawing process with constant air jets reducing heat from friction.
• Main Motor: 15HP
• Additional Parts
• Set-up Frame
• Extra Saw Frame
• 9 Complete Set of Paired blades, Different thickness for thin Veneer
• Extra infeed rolls and Hardware
