Atech Norma-02 SA Semi-Automatic Double Head Miter Saw 16" (400mm) with Digital Read-out
Machine Available
Stock #571303N
New- A-tech Norma-02 SA Semi-Automatic Double Head Miter Saw 16" (400mm) with Digital Read-out

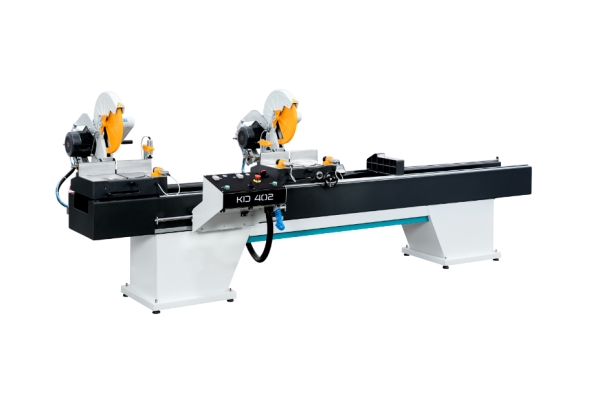

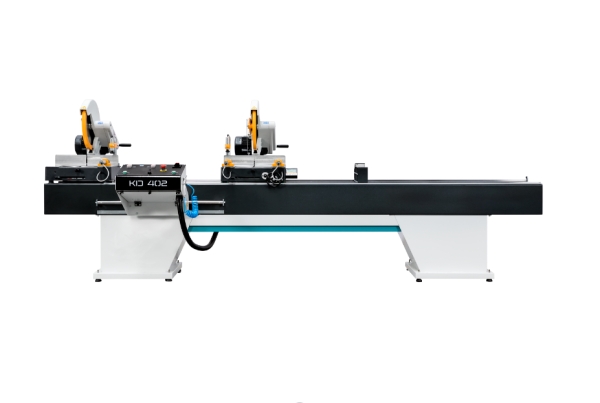

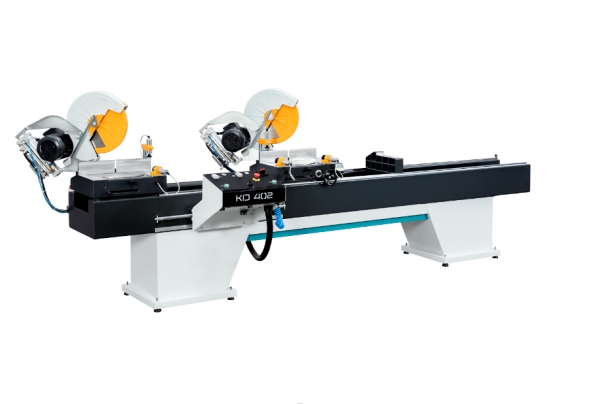

- Double head miter saw with circular saw blades designed for double head, single head and straight or angular cutting of PVC, aluminum and wooden profiles.

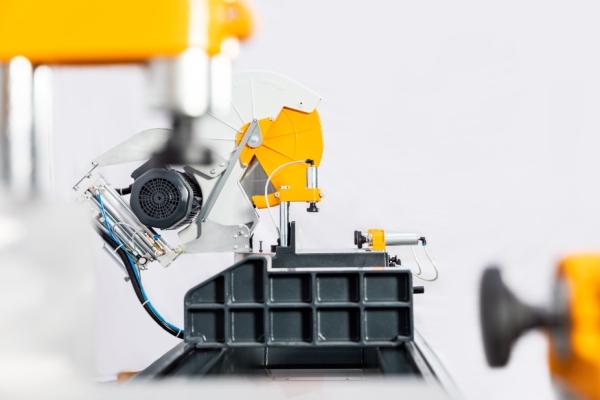

- The saw blade movement is hydro-pneumatically, and it is possible to adjust the movement speed of the saw blade precisely according to the material to be cut.
- Cutting Length: 21" - 136"

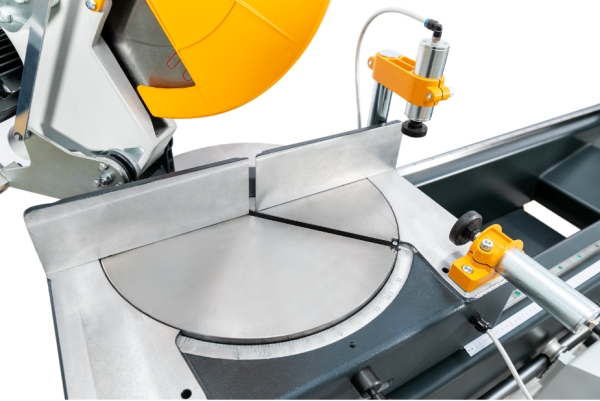

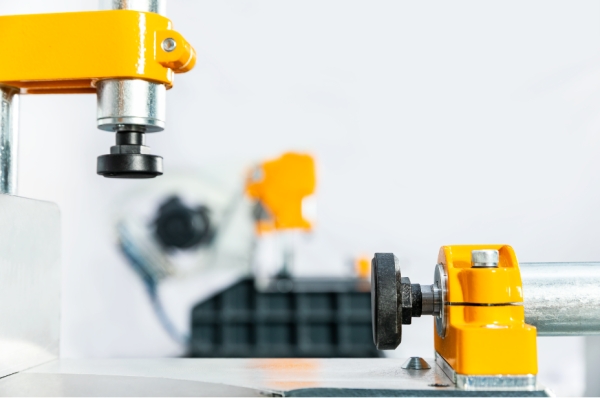

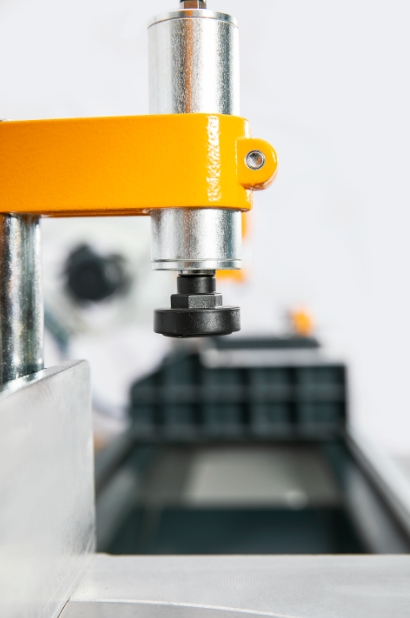

- The clamps operate pneumatically, operating at low pressure and with both hands occupied for safety reasons.

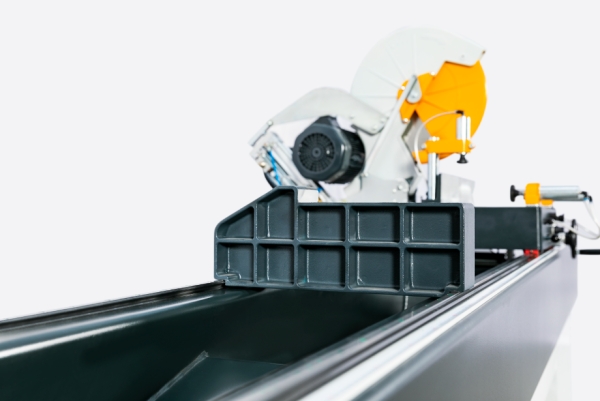

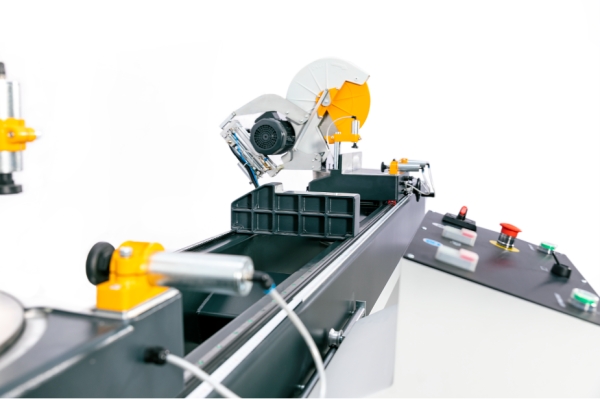

- The left cutting head is fixed, while the right head is movable manually. The right head is equipped with a pneumatic braking system. For the operator’s safety, the machine does not work with the brake key OPEN.
- Measurements can be taken precisely with the digital read-out system.
- Saw Motors: 2.2kW (3HP) @ 400V 3Ph 60hz
- Blade Diameter: 16"
- Blade RPM: 3400
- Air Requirements: 90-120Psi, 2.5 CFM
- Comes with two carbide tipped 16" blades
- Pneumatic spray mist lubrication included
