Atech Model CRATER-06 AP Automatic 20" Straight Upcut Saw with Auto-feeding
Machine Available
Stock #813827

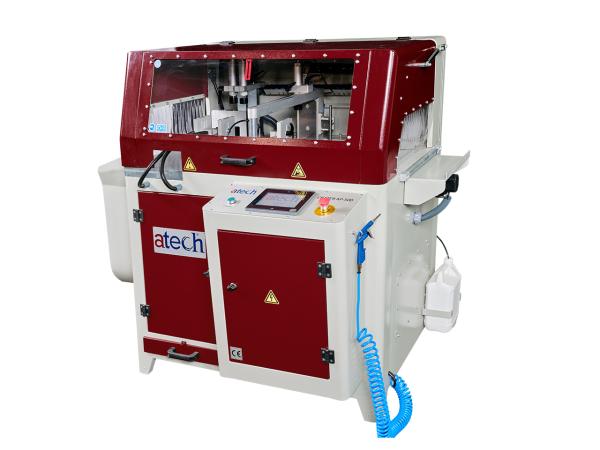

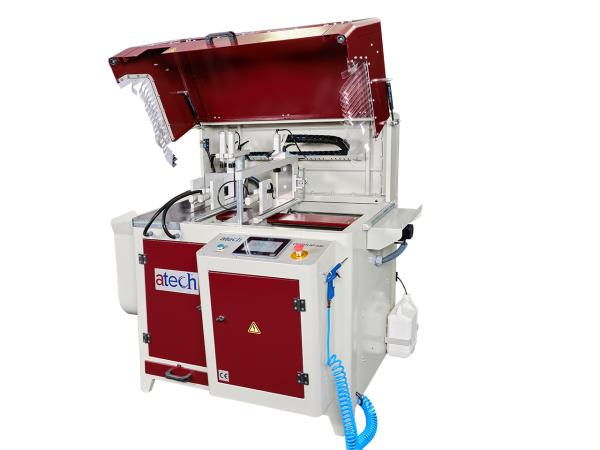

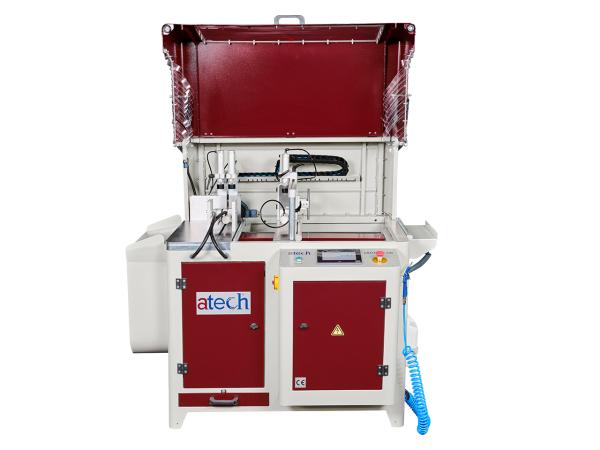

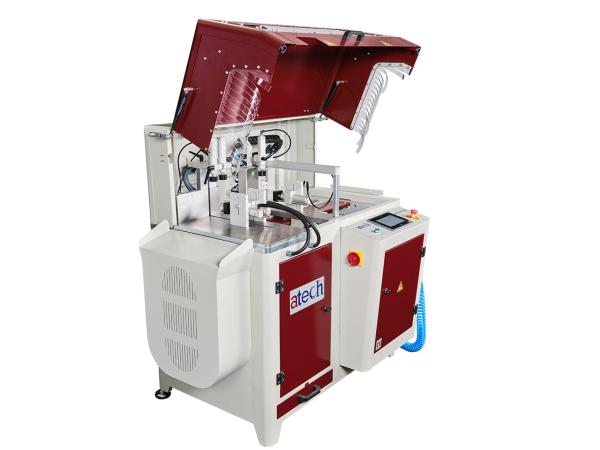

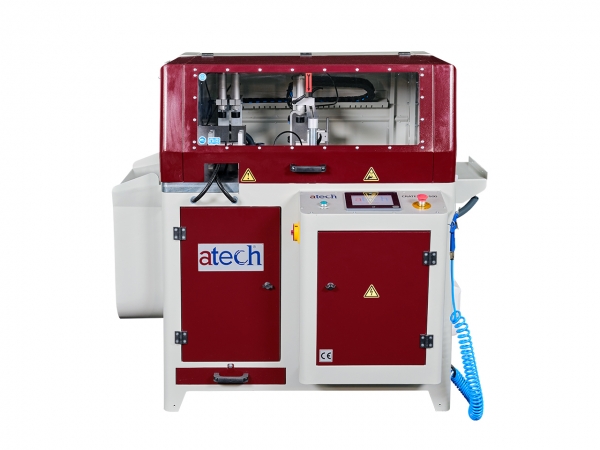

New- Atech Model CRATER-06 AP Automatic 20" Straight Upcut Saw with Auto-feeding
- The CRATER-06 AP has been designed for straight cut operations of large size of aluminum and vinyl profiles
- Servo-controlled Infeed Speed and Saw Blade Stroke.
- Robust Mechanical Construction for High Cutting Accuracy

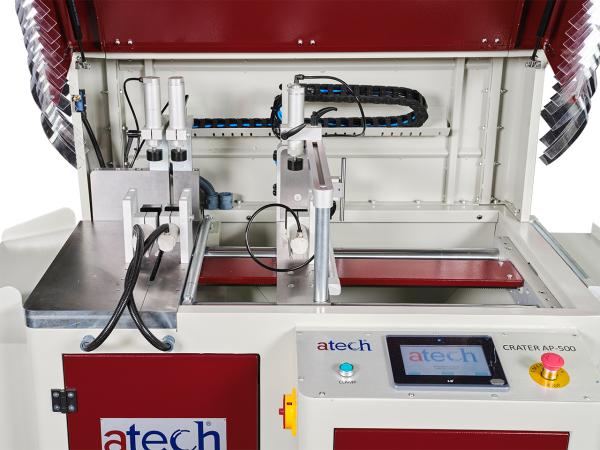

- 3 Horizontal and 3 Vertical Pneumatic Clamps

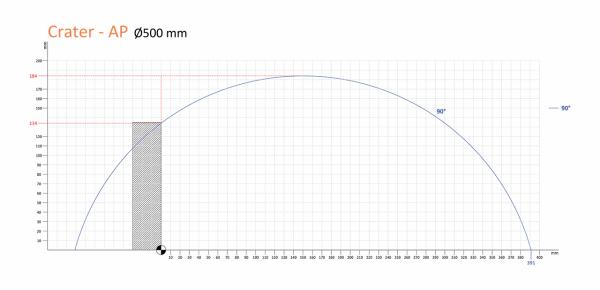

- Min/Max Clamping Capacity:
- Height: 5mm/170mm
- Width: 5mm/270mm
- Automatic Table Retraction - Move material after cut and before saw blade retracts to prevent re-cut and scratches
- Programable Spray Mist Lubrication System
- Large Memory Capacity for Cutting Programs
- Feeding Distance per cycle: 5-600mm
- Idle Material Feed Speed: 10,000mm/min
- Led Interior Lighting
- Saw Motor HP: 5.5HP (4kW)
- Saw Blade Diameter: 20"
- Saw Blade Bore: 30-32mm
- Saw Blade RPM: 3000RPM
- Air Requirement: 90-120Psi
- 460V 3Ph 60hz
