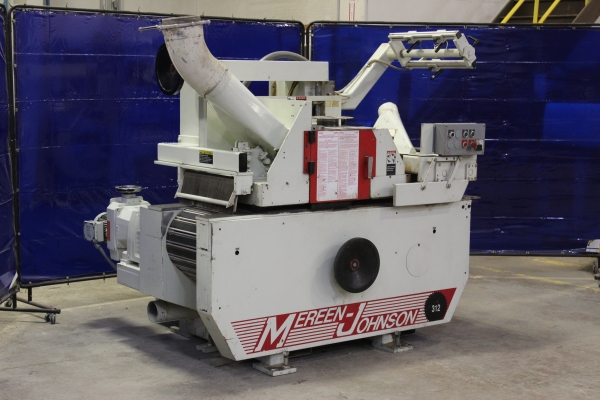

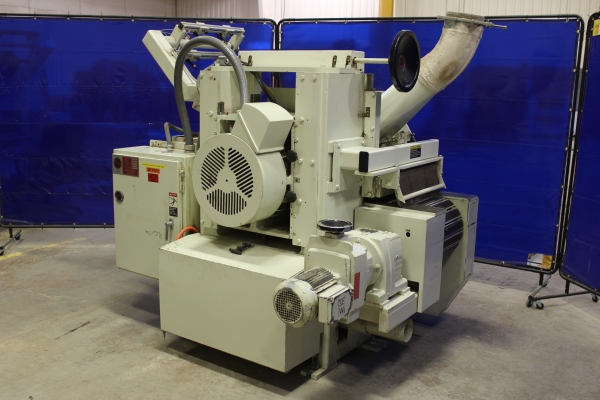

Mereen-Johnson Model 312-DC Gang Rip Saw with TwistLock Collars and Laser Rack
Machine Sold
Stock #201573

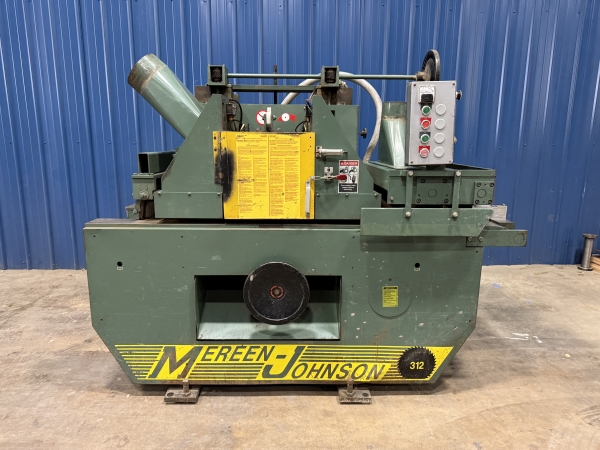

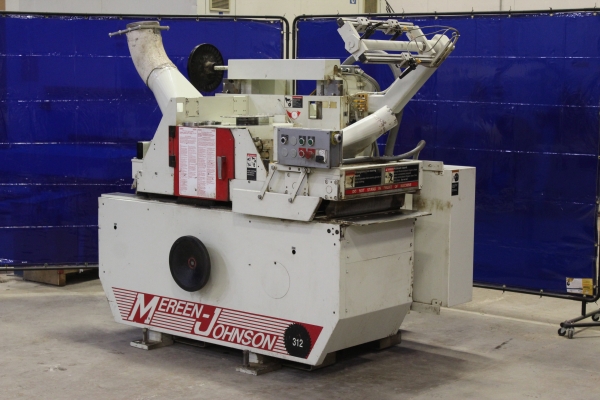

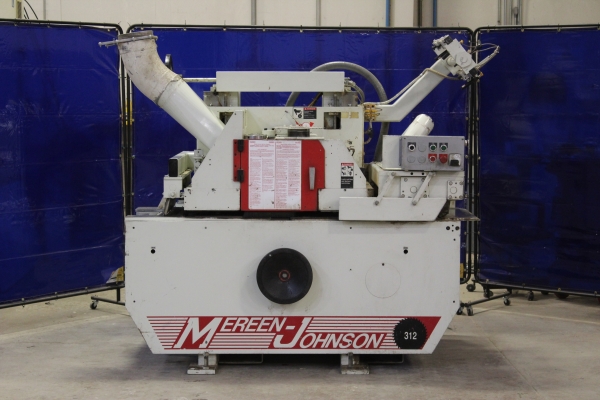

Used- Mereen Johnson Model 312-DC Fixed-Arbor Gang Rip Saw
- Arbor Motor: 50HP
- Arbor Speed: 3,600 RPM

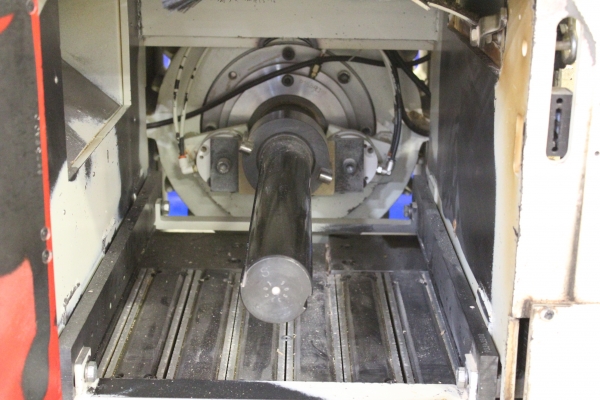

- Arbor Size: 2-9/16" with Two 1/2" Keyways
- Arbor Length: 12"
- Max Board Width: 12"
- Max Board Thickness: 3"
- 30" Minimum Length Glue Joint Accuracy
- 22" Minimum Length For Bust Up Only
- 6" Throat
- Four (4) TwistLock saw collars and Moveable Shoes included
- Feed Drive: 3HP TEFC Heavy Duty Feed Drive Assembly with Variable Frequency Drive, 30'-235' per Minute
- Feed Bed: DOUBLE-VEE Feed Chain, Contoured Hardened Dip Cams, Extruded Structural Aluminum Feed Bed Slats with Replaceable Steel Backed Rubber Insert Strips
- Hold-Downs & Bed plate: Four 3" dia. Air Loaded Overhead Idle Press Rolls
- Manual Height Adjustment for Hold-Down Rolls and Bed Plate

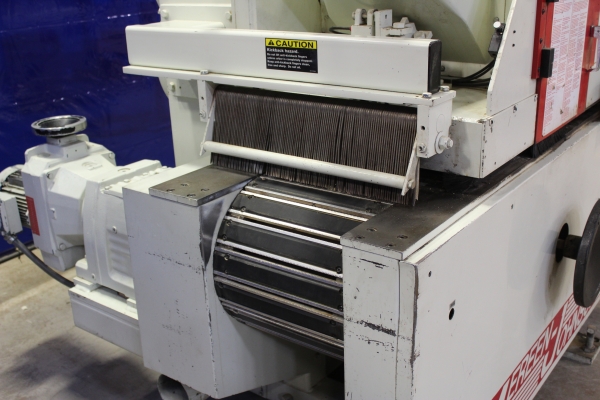

- Kickback fingers: Single bottom and double upper infeed, and single upper outfeed

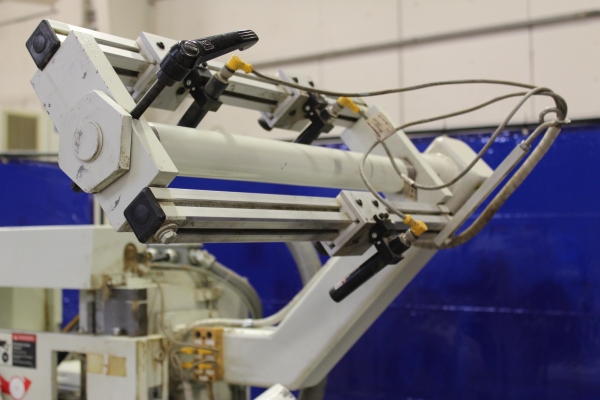

- Machine mounted, pivoting laser light mounting bracket. Pivoting feature and open pressure-head allows for fast and easy laser light and saw blade alignment
- Includes Three Lasers
- Year: 2003

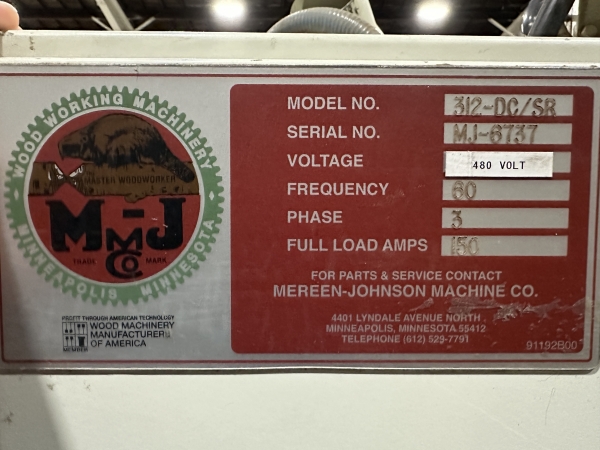

- Serial #: MJ-6737
