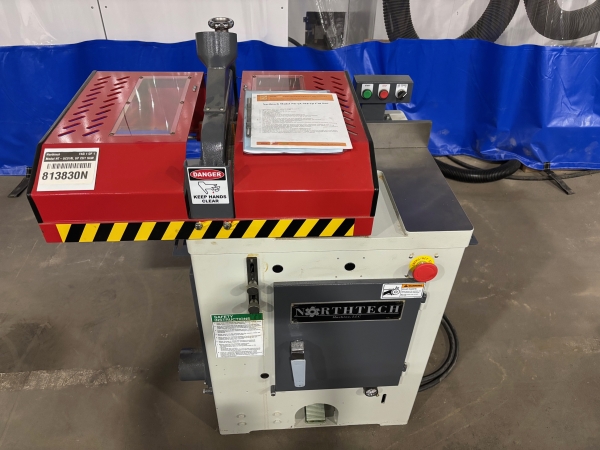

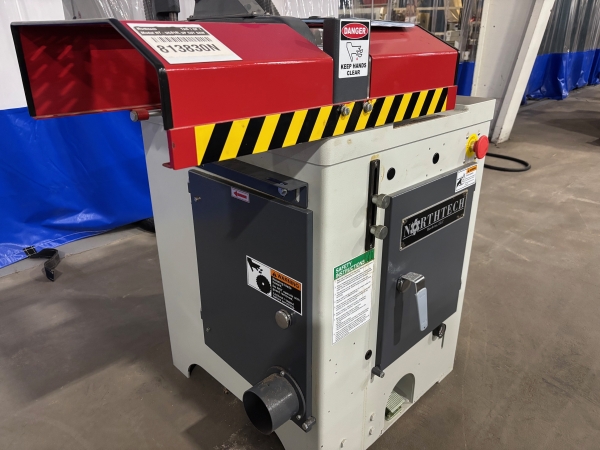

Northtech Model NT-UCS18L UP CUT SAW LEFT HAND

• Northtech Model NT-UCS18 Up Cut Saw
• Max cutting capacity: 1" x 13", 2" x 12", 3" x 11", 4" x 10"
• 10HP motor, 3PH 230V with 24V magnetic controls
• 18” 120T Carbide tipped blade included
• 1” Saw arbor diameter
• Cycle operation: Pneumatic 45 cuts per minute
• Table size: 26” x 27.25”
• Adjustable fence 2" x 25"
• Quick access on front of the machine to adjust blade stroke
• Dust requirements: (1) 4" dust port requiring 436 CFM at point of extraction
• (1) Tool box and manual
• Cutting Envelope 1" x 13", 2" x 12", 3" x 11", 4" x 10", 4-1/2" x 8"
• 10HP arbor motor
• Pneumatic hook up with slide shut off, filter lubricator, and regulator
• Gravity flip stops provide quick reference without relocating stops, (2) included
• 18", 120T Tungeston Carbide Tipped Blade included
• All electrics organized in dust proof box
• Quick hood adjustment allows operator to set minimum clearance over part for increased productivity and safety
• Full guard with clear view windows protects operator while maintaining visibility at point of cut
• Front mounted Emergency Stop for quick access, shuts electrical power off to blade and immediately terminates air supply returning clamp and blade to home position
• Control center with pneumatic shut off
• Double action cylinder ensures part hold before blade begins cut
• Blade cycle adjustment is easily controlled from the front of the machine through quick lock knobs
• Tool box including all applicable tools, wrenches, as well as operators manual are included
• Optional gravity flip stops provide quick reference of lengths without relocating stops, not included
• Infeed and Outfeed options available at extra cost, 8' and 16' options
