Automated Lumber Handling Tilt Hoist and Material Handling for Planer or Rip Line
Machine Available
Stock #44544

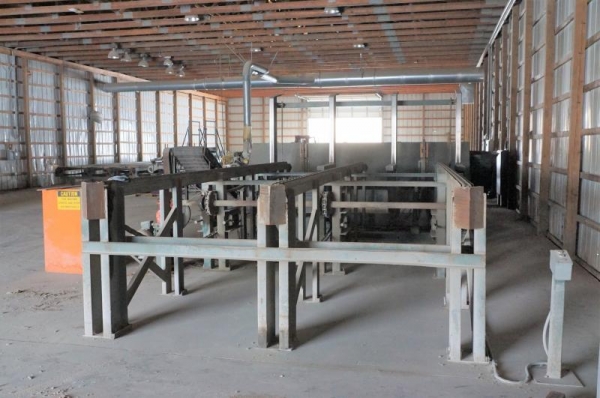

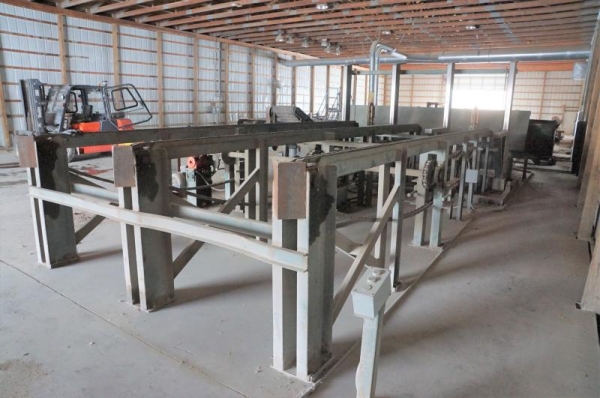

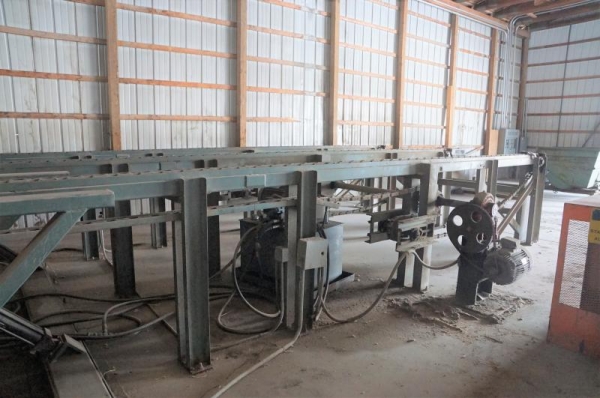

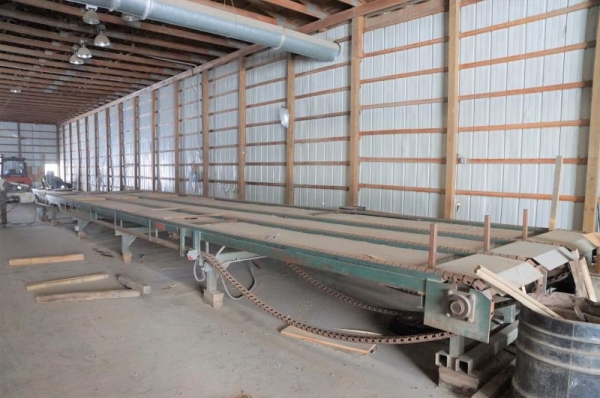

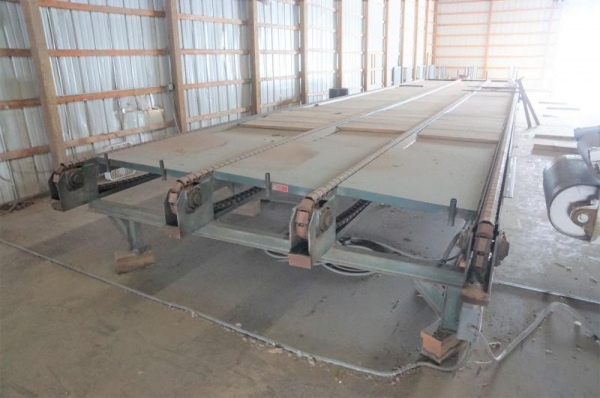

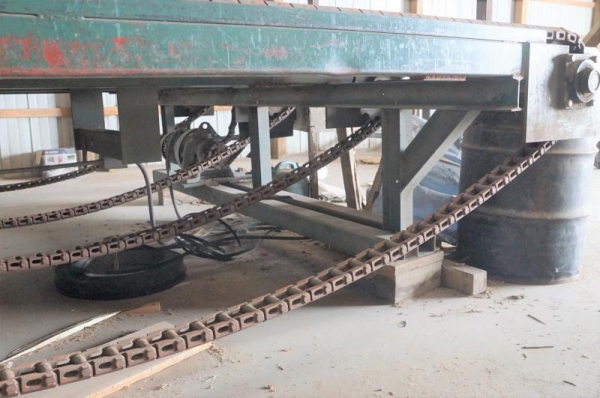

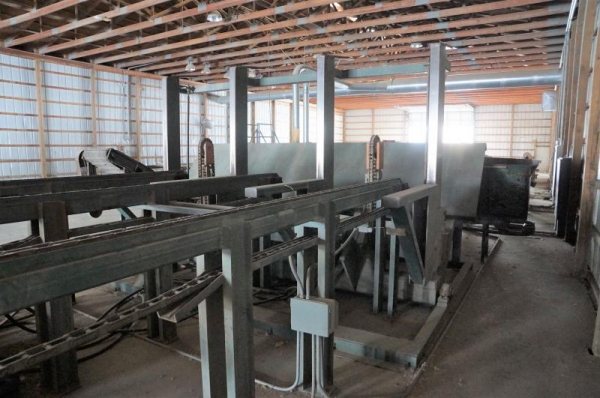

Used- LH Three Strand Live Chain Infeed Package Deck
- 131" Wide x 25 ft Long X 53-1/2" High

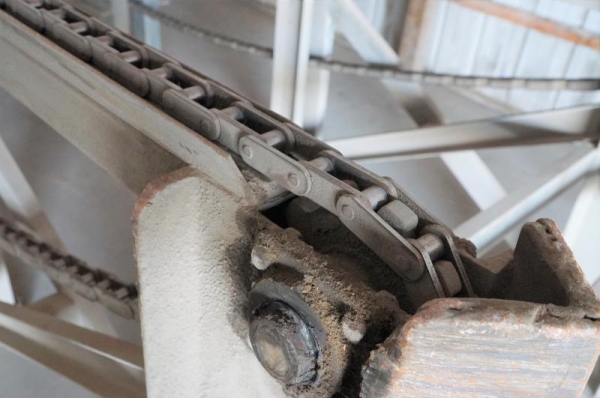

- Three(3) 2-1/4" Wide Flat Top Chain Strands
- Chain Spacing 60"

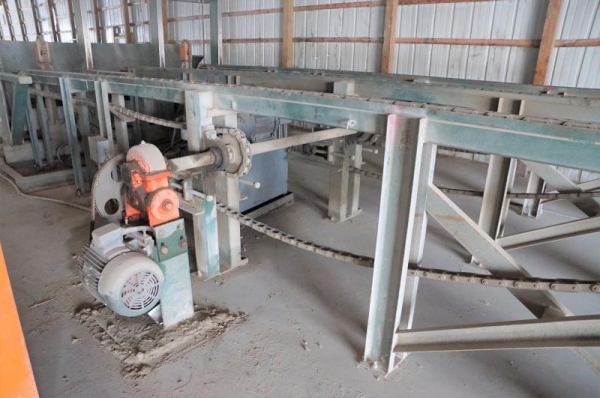

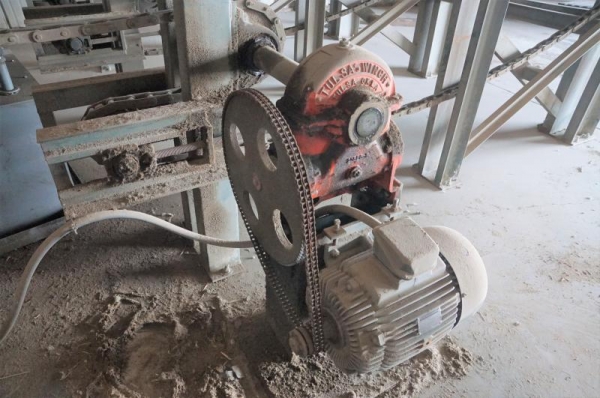

- Drive Motor 15 HP

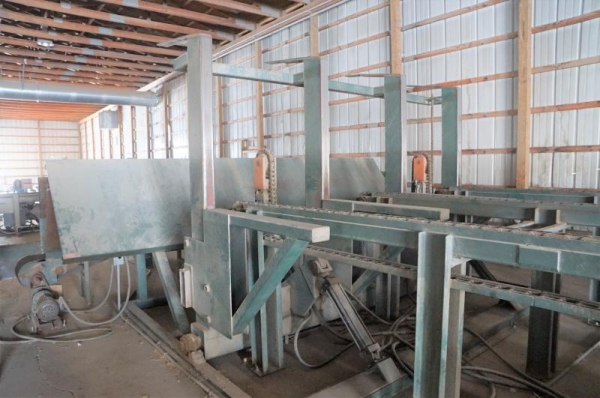

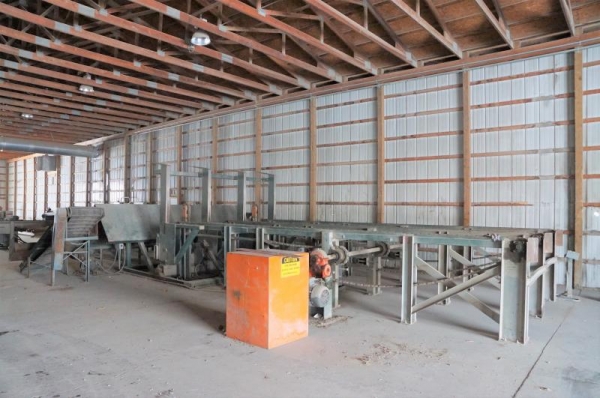

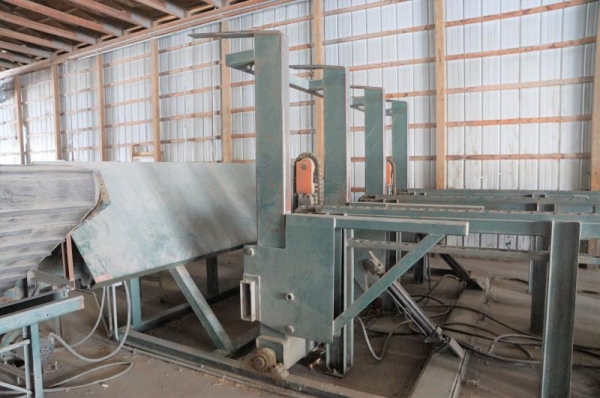

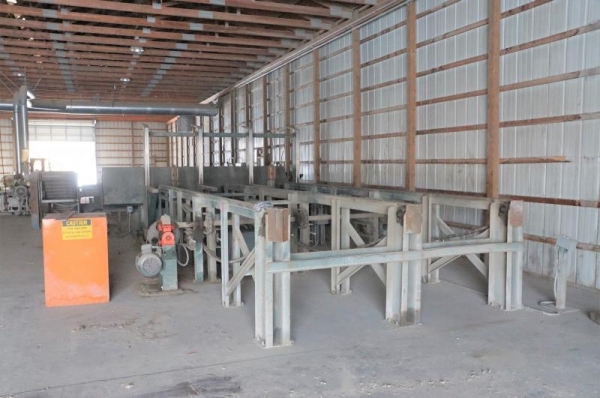

- ALH Lumber Break Down Tilt Hoist
- 151" Wide x 103" High
- Tilt Hoist Arms are 5" Wide x 48" Long
- Two (2) Hydraulic Cylinder to Lift Pack and Two(2) to Tilt Pack

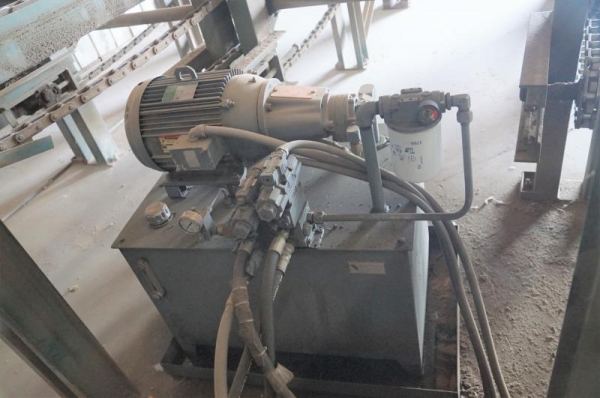

- Hydraulic Pump Motor 20 HP

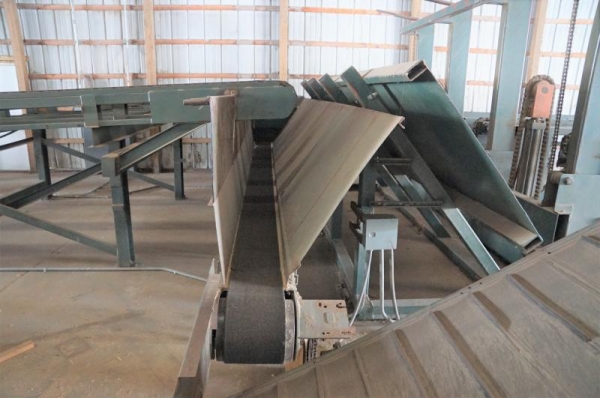

- Stick Removal Conveyor
- 11" Belt with 2HP Motor

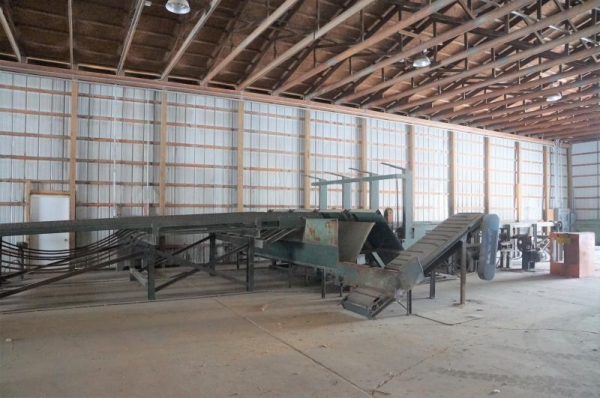

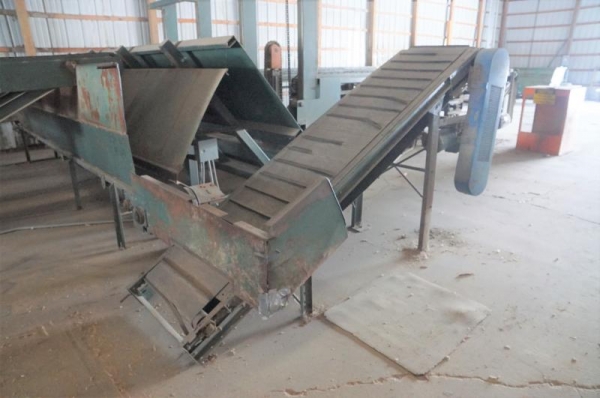

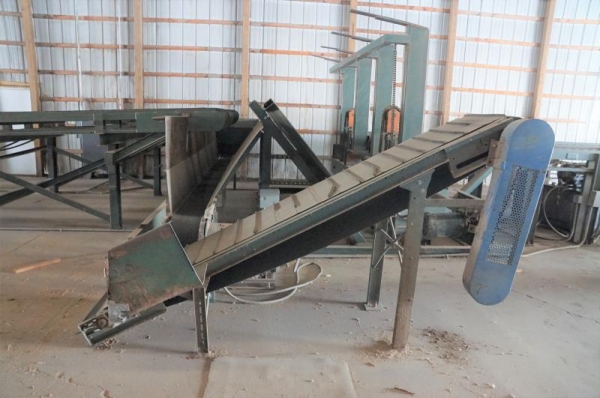

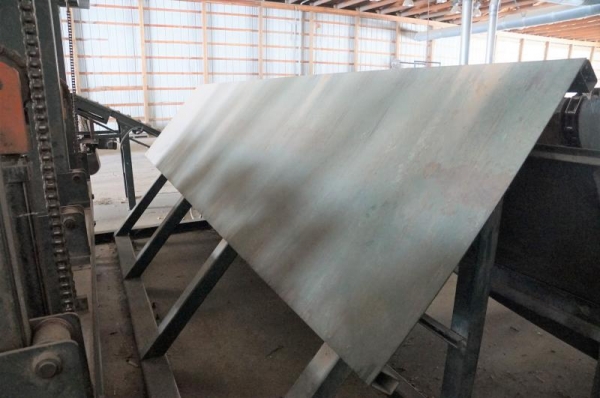

- Incline Sticker Unloading Conveyor Table 2 HP

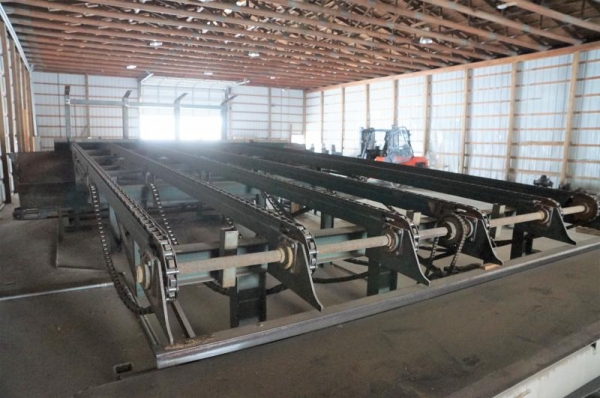

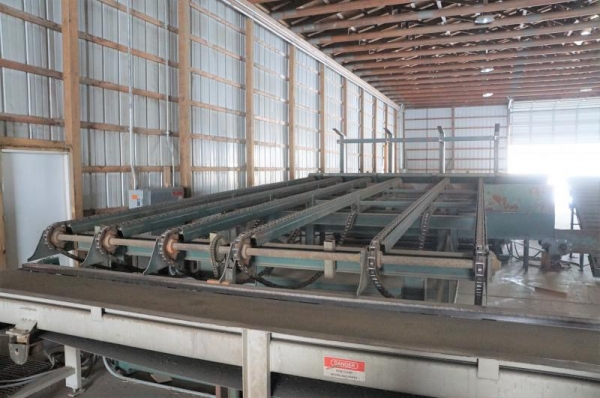

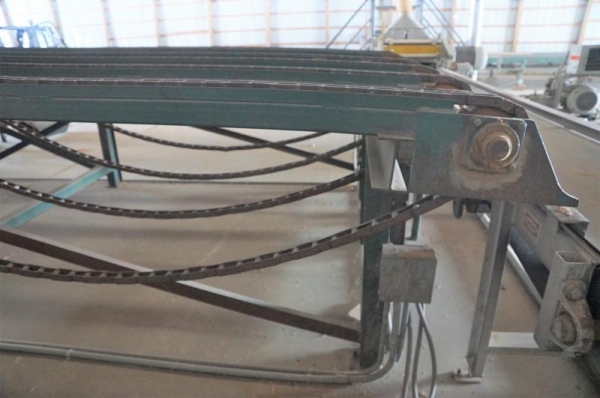

- Boards then feed onto an ALH Six Strand Chain Deck - 11' Wide x 22' Long with 5 HP Motor

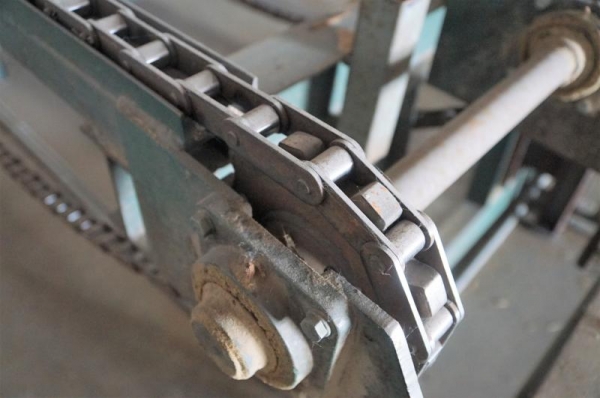

- 2-1/4" Wide Flat Table Deck Chains
- Chain Spacing (left to right) 24"/36"/24"/24"/21"

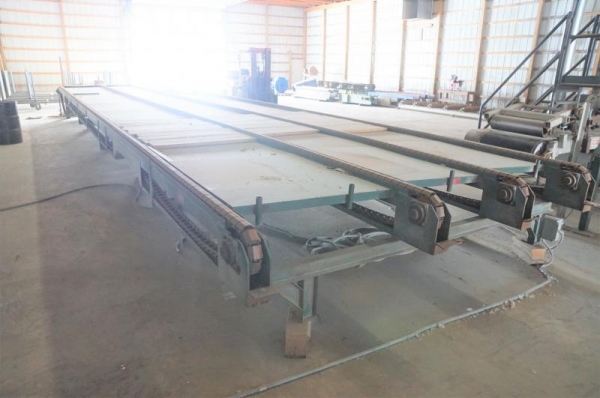

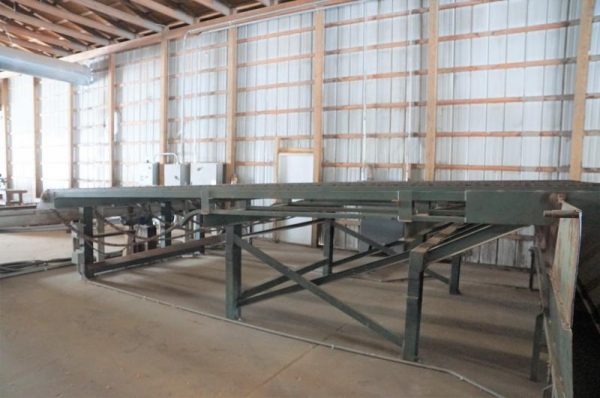

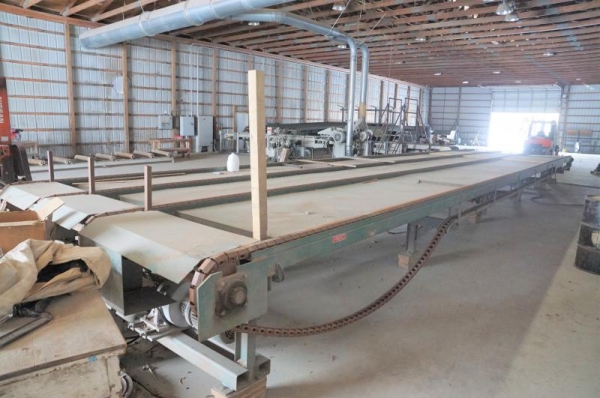

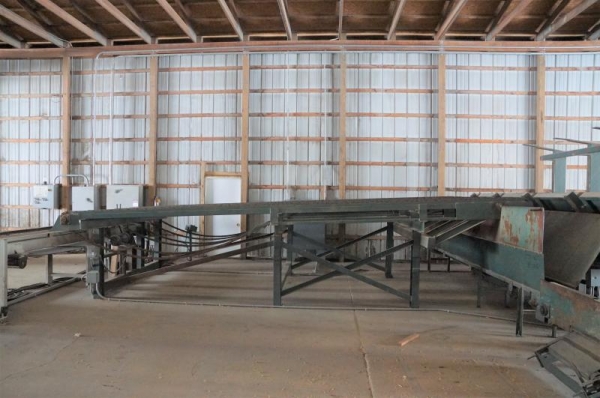

- After Planer or Rip Saw (not Included) ALH Four Strand Roof Top Chain Deck
- For Sorting 10'-6" wide x 47' long x 33" High

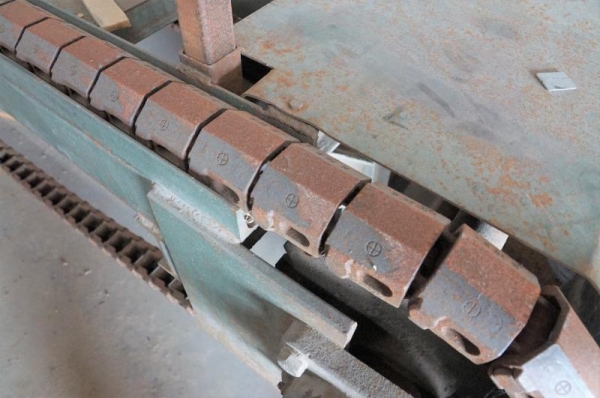

- Chains are 2-3/4" wide steel roof top, Spacing (left to right) 48"/36"/36"
- Steel Plates Decking Between Chains

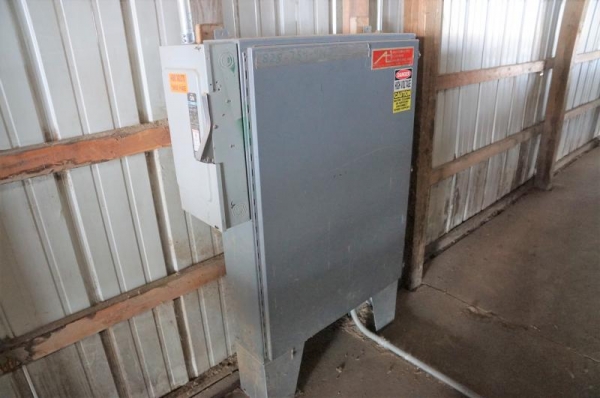

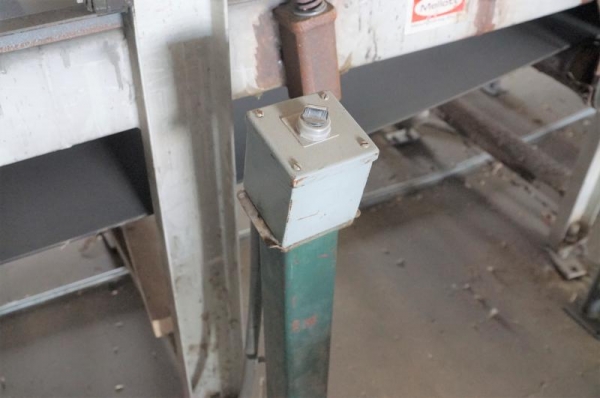

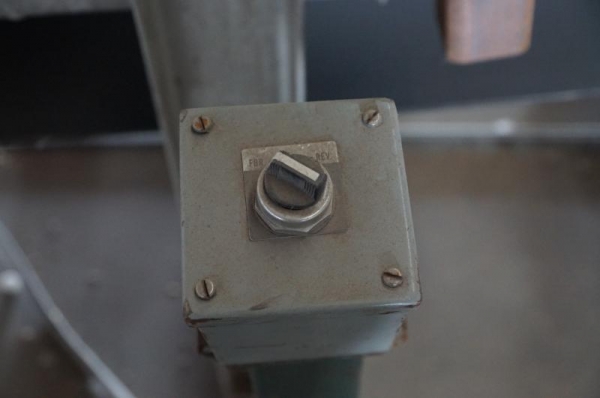

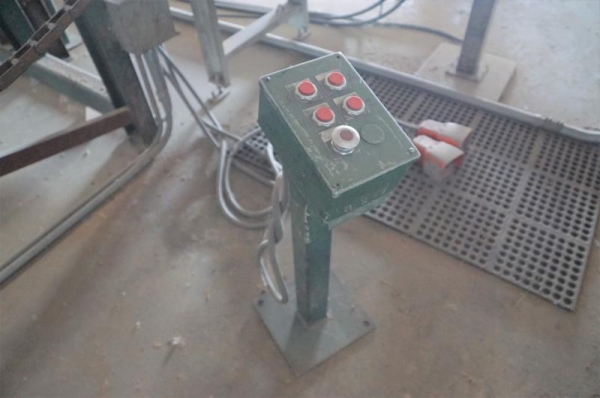

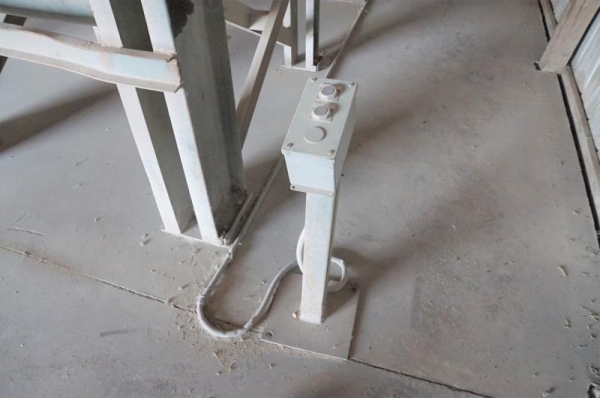

- Freestanding Infeed and Outfeed Operator Control Stations
