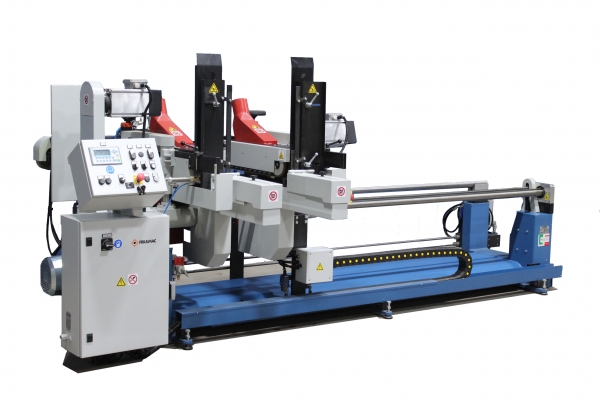

Friulmac Model Dualfeed 2.5 Automatic Double Crosscut saw & Moulder Feeder
Machine Available
Stock #471305N
New- Friulmac Model Dualfeed 2.5 Automatic Double Crosscut saw & Moulder Feeder
- Working Units on each side
- Trimming Unit:
- Motor Power: 4kW (5.36HP)
- Spindle RPM: 3750RPM
- Spindle Diameter: 30mm
- Max Blade Diameter: 250mm
- Adjustments:
- In/Out: Manual
- Up/Down: Manual
- Dust Extraction:
- 1+1 Dust Ports with 100mm outside Diameter
- 30-34 M/Sec Extraction Speed
- 1000 CFM Required
- Hydraulic Unit
- Unit Capacity: 75L
- Motor Power: 2.2kW (~3HP)
- Double Gear Pump Flow Rate: 23 + 16 L/Min
- Production Capacity
- Maximum Production Capacity: 40pcs/min
- Vertical Work Piece Magazine
- Working Dimensions: Min/Max
- Cutting Length: 200/2500mm (7.874"/98.452")
- Work Piece Width: 30/230mm (1.18"/9.05")
- Thickness: 15/45mm (.59"/1.77")
- Top Belt Pressure System
