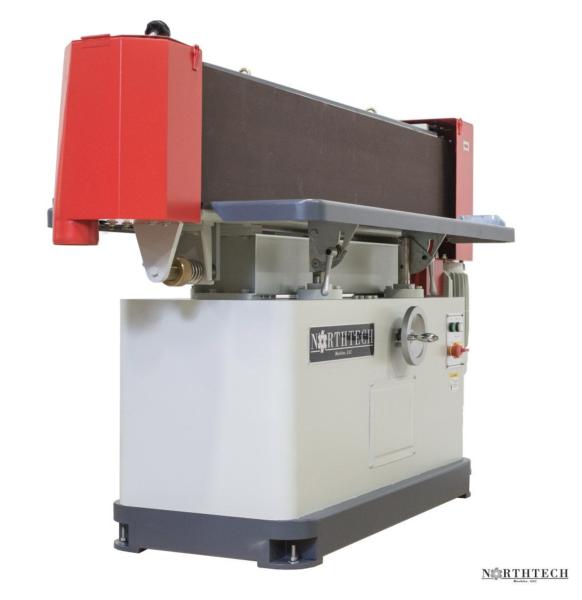

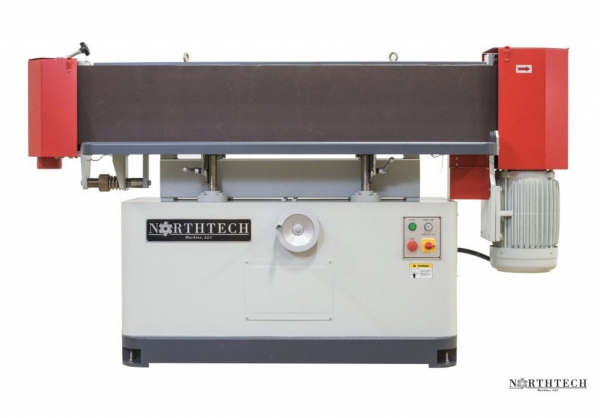

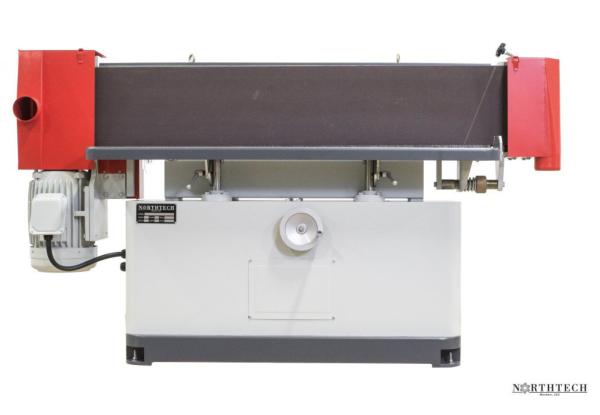

Northtech Model NT-ES960SE

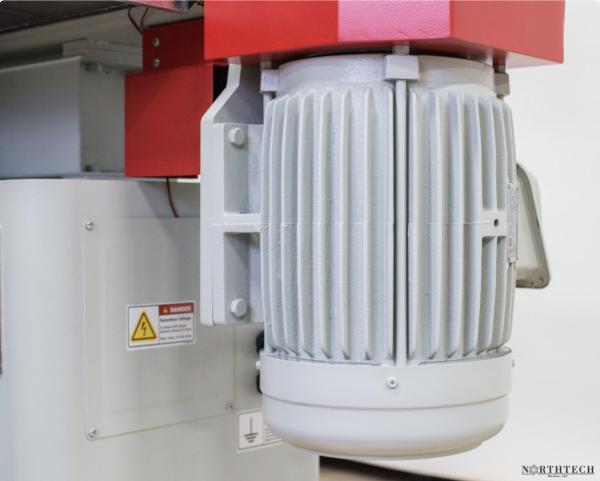

• 5HP main motor; 3PH, 230V/460V Dual Voltage
• 12mm (1/2") oscillating stroke
• Drive wheel: 7" x 9-5/8"
• Easy elevation control through manual worm gear
• Side table dimensions: (1) 10" x 59"
• Side table tilt: 0° - 45°
• End table dimensions: (1) 13" x 16-1/2"
• End table tilt: 0° - 45°
• Sanding belt size: 9" x 158" (Included)
• Sanding belt speed: 3100 FPM
• Platen size: 9.5" x 60"
• Dust ports: ( 2) 4" requiring 436 CFM @ point of extraction
• Easy jig fences are standard for squaring accuracy and part stability
• Adjustable working height: 32" - 37"
• Machine Dimensions: 88" x 26" x 27"
• Packaging Dimensions: 92" x 30" x 55"
• Net weight: 738lbs
• Gross weight: 988lbs
• (1) Tool box
• Amperage requirements: 230/460V 60HZ 3PH: 12.9A/6.45A
• Standard Northtech one year parts warranty
• Northtech offers a full line of dust collectors and flex hose for any application.
• All machines are tested stateside prior to shipment providing trouble free start up.
