Homag Model Optimat BAZ 322/40

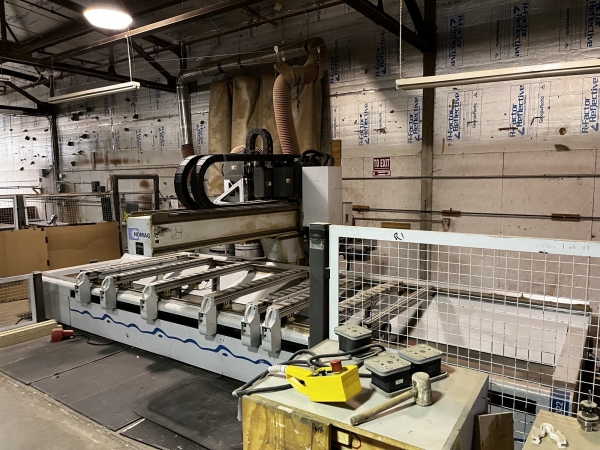

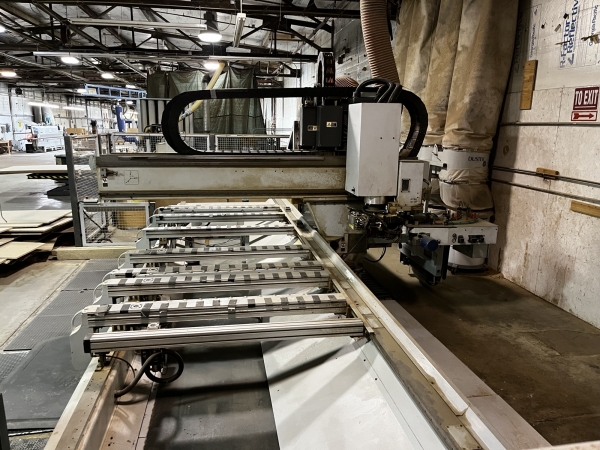

• Homag Model Optimat BAZ 322/40 CNC Router
• The BAZ is a machining center for routing, drilling, contour edgebanding and edge finishing. It is equipped with an electronic control for batch size production of curvilinear components for the flat panel industry.


• The machine features two (2) independent Y-axes for main spindle and gluing unit 360º with coil and strip feeding. These independent axes enable quick cycle times utilizing simultaneous tool changing while processing.


• Basic Equipment:
•

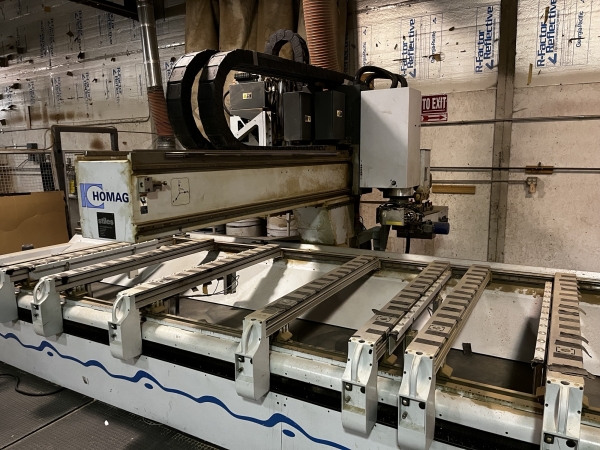

 K-type vacuum bench consoles with lifting rails and LED bench and vacuum cup setup aid
•

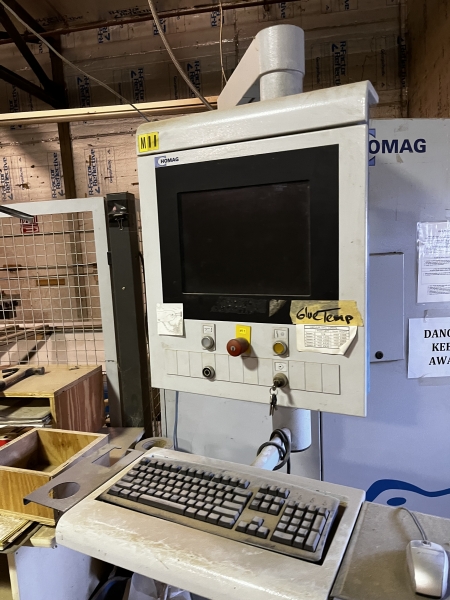

 Power control with PC85

• Main spindle 14.5 Kw (19.4 HP) vector regulated
• Plate-type tool changer for twelve (12) tools
interface for change-over of processing units with an integrated pneumatic supply and drive of C-axis

• Vertical boring head with twelve (12) spindles

• End trim saw unit

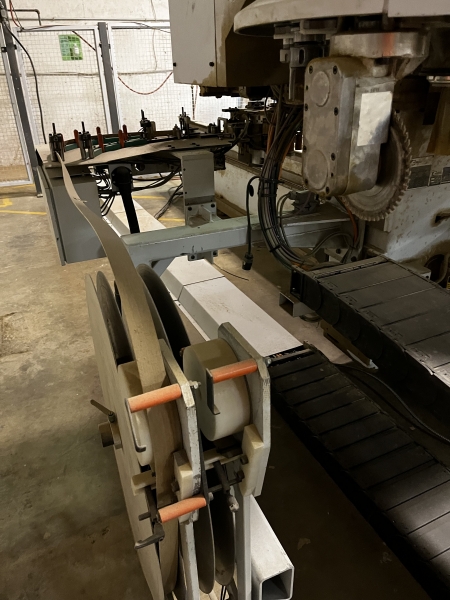

gluing unit for 360º edge band application with strip feed function
2 coil magazine
• Combination flush trimming scraping unit for thick edge, 3 mm (1/8) typical

• WoodWOP office PC software


• Basic Machine
:
• Machine bed in heavy, sturdy construction with a compact linear THK-type guide system

• Pre-tensioned rack and pinion gears and digital AC-servo motors in
X and Y-axis

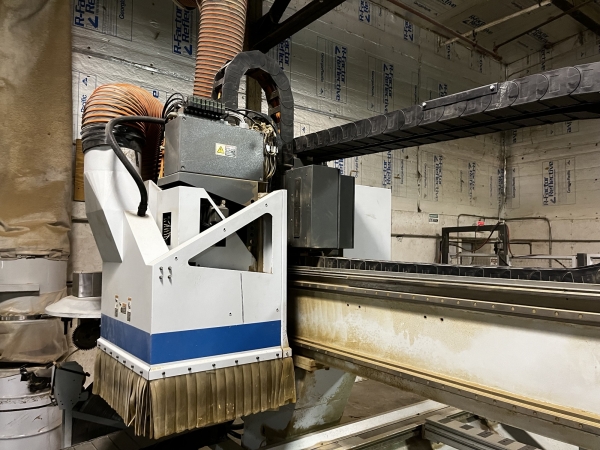

• Cantilever carrier beam with linear THK-type guide system, re-circulating
ball screw and digital AC-servo motor for positioning of the Z-axis,
travel 535 mm (21-1/16)
• Automatic centralized lubrication for all drives and the linear Thk guides
