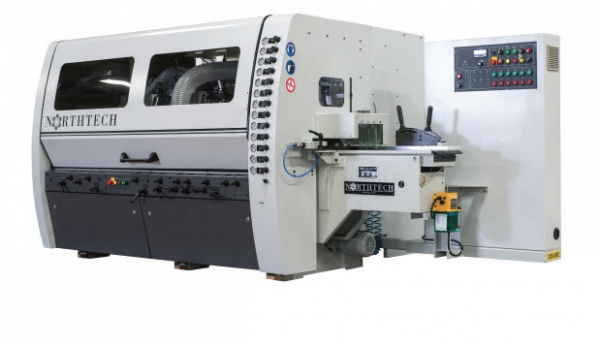

Northtech Model NT-L6300 12" Six Spindle Moulder

• Northtech Model NT-L6300 12" Six Spindle Moulder SPINDLE ARRANGEMENT
• 1st Bottom horizontal: 10HP, 8000 RPM, 1-13/16"
• 2nd Right vertical: 15HP, 8000 RPM, 1-13/16"
• 3rd Left vertical: 15HP, 8000 RPM, 1-13/16"
• 4th Top horizontal: 30HP, 8000 RPM, 1-13/16"
• 5th Top horizontal: 25HP, 8000 RPM, 1-13/16"
• 6th Bottom Horizontal: 20HP, 8000 RPM, 1-13/16"
• FEED SYSTEM
• Feeding motor: 10HP with inverter
• Elevation motor: 1HP
• Feeding speed: 6-36m/min (19 - 115 FPM)
• PRODUCT DIMENSIONS
• Width: 10mm - 300mm (3/8" - 12")
• Thickness: 7mm - 160mm (.28" - 6.3")
• Minimum length: 37" Single piece feed
• FEATURES
• Infeed table length: 1800mm (72")
• Siko counters for sensitive movements
• Automatic lubrication system
• Horizontal spindles with outboard bearing support
• Table is hard chrome plated
• (5) Powered bed rollers
• No tooling included
• Tool box and Manual included
• Standard 1 year Northtech parts warranty
• 1 Day Start Up & Training Included
