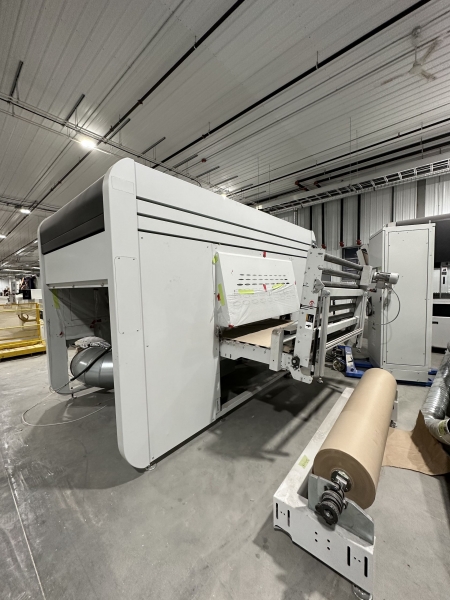

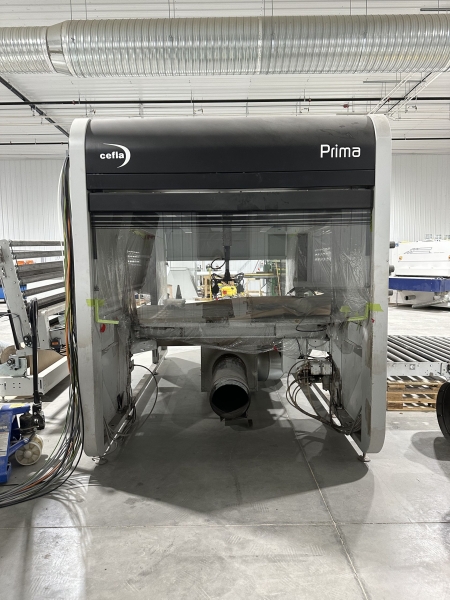

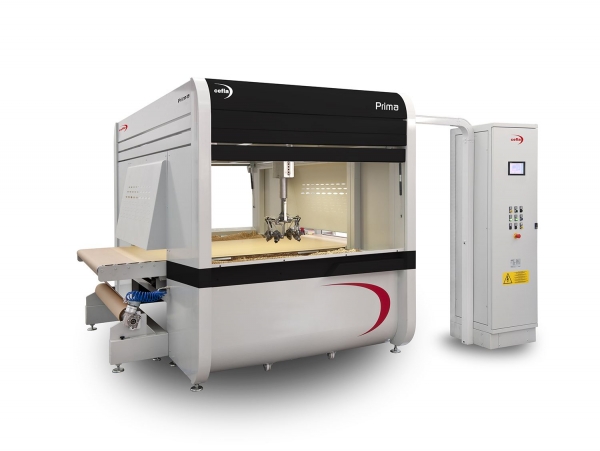

Cefla Prima Flat Oscillating Spray Machine - 2019!

• Cefla Model Prima Flat Spray Machine - Like-new condition, meticulously maintained, and has exclusively run water-based products
• The PRIMA is the ideal machine for the following working conditions:
• Product Sector: Furniture
• Trade product: Kitchen, Furniture, millwork
• Material: Wood, engineered wood materials
• Shape: Raised Panel
• Finishing: Stain, Clear & Pigmented
• This Oscillating Spraying Machine with One Arm Model: PRIMA is designed with a solid structure ­LASER 3D complete with wide glass access doors. Infeed reading system optimizing the spraying width. The machine has a working width of 1300mm.
• STANDARD FEATURES:
• Vacuum belt conveying system with continuous, disposable paper belt. Paper tension controlled by pneumatic system.

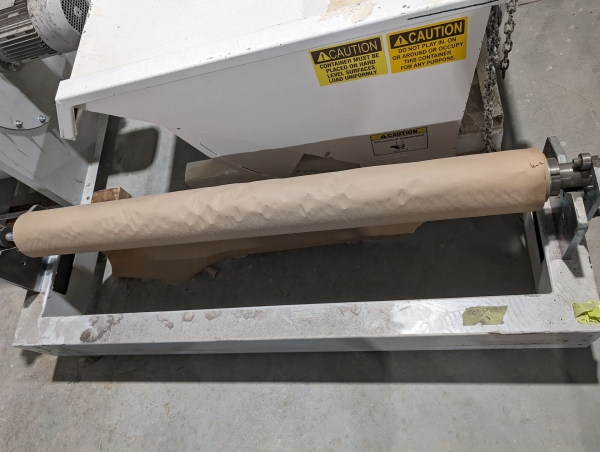

• Easy removable paper spools with 2400 to 2800 meter development.
• Ambient air inlet from the machine roof.

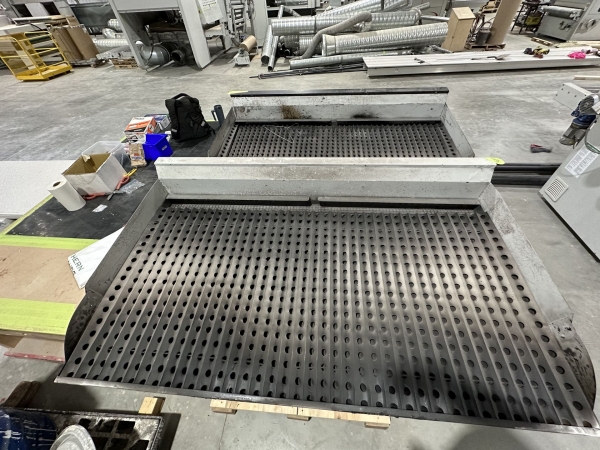

• Overspray exhaust through double downdraft filtration dry filters, placed at conveyor sides and mounted on extractable tank.
• Spraying axis driven by brushless motor and timing belt with ball bearings.

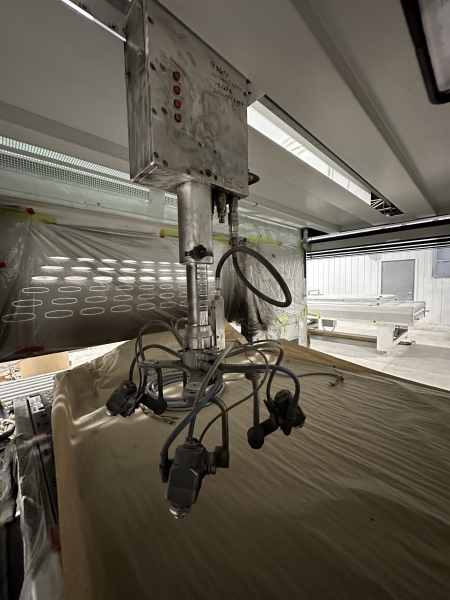

• The central axis carries one fixed guns support arm complete of height adjustment manual set up. Predisposition for a maximum of 4 guns mounts (Guns and pump are not included)
• Four high pressure coating feeding circuits with recirculation and coating filter with stainless steel fittings. (3 Colors + 1 Solvent)

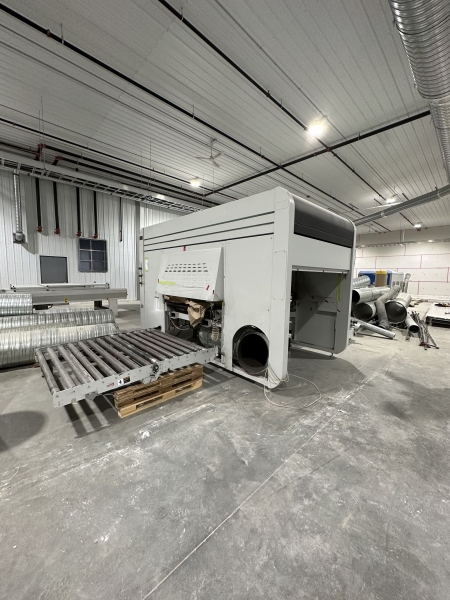

• Manual valve for color change. Driven infeed / outfeed tiltable roller section
• TECHNICAL FEATURES: Machine total length: 4100 mm Machine total width: 4750 mm Machine structure height: 2400 mm Minimum / Maximum workpiece length: 250 mm / 3500 mm Minimum / Maximum workpiece width: 305 mm / 1300 mm Minimum / Maximum workpiece thickness: 4 mm / 60 mm Maximum bow: 10 mm Conveyor speed adjustable by inverter: 1­3 m/min Maximum speed of gun holding unit: 140 m/min Drive motor power (flameproof execution) 0,37 kW Guns handling system motor power 2,1 kW Suction motor power 4 kW Air compressed consumption (pumps and gun: excluded): 300 Nl/min Air mixed up with solvents exhausted outside: 8000 mc/h Air to be made up in the room: 8000 mc/h Paper width: 1520 mm Paper spool max diameter: 550 mm Installed electric power (complementary equip.: excluded): 6,5kW Voltage 480V / 60HZ Compressed air requirements 6 bar Machine color RAL 7035 Line of service side Left
• The CFM units indicated above are by way of information only, units may vary depending on your machine configuration and or specific application.
• CONTROLLER FEATURES: Electronic control unit with PLC and software for machine managing.

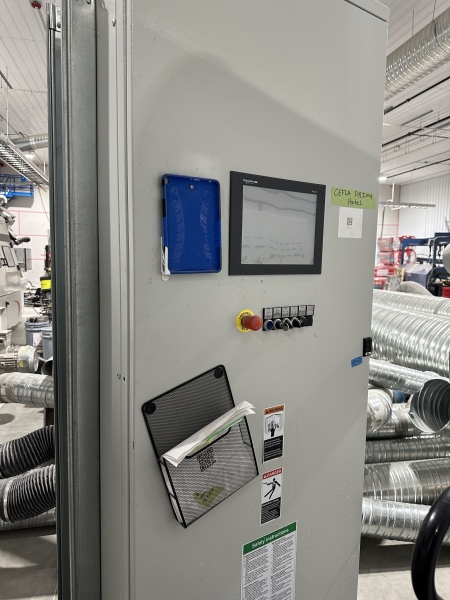

• Main control cabinet, placed at the machine infeed, along the service side, cable and wiring system for connection to all users.
• Spraying parameters managing is operated by PLC with:
• Working programs set up
• Black/white "touch" display for diagnostic and control l Possibility to exchange data via USB memory stick l Service on left side
• ATEX 2G execution, with explosion­ proof motors
• Electrical voltage 480 Volts
• Note that items are located in Canada and will have associated duty/import fees
• Customer to provide customs broker information
