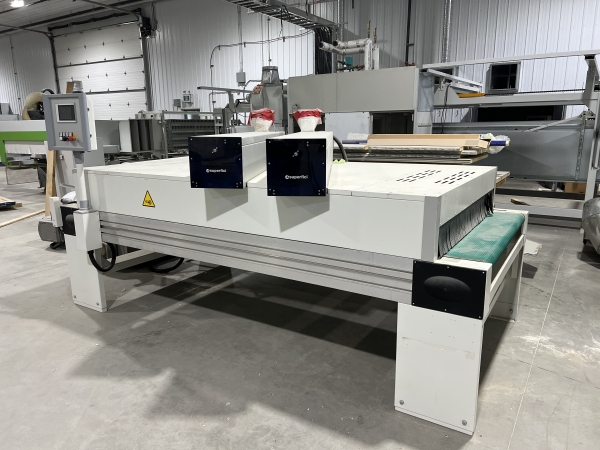

Superfici Model Poliedra SuperCure 2-Lamp 3D UV Curing Oven
Machine Available
Stock #29149
Used- Superfici Poliedra Supercure 2-Lamp 3D UV Curing Oven - Low hours, virtually new machine. Used for less than 1 year total on a low volume product development line.
- Pass line Height: 900 mm
- Operating side: RH, as viewed from inlet of line. LH available.
- Workpiece Dimensions (Approx.):
- Min. - max. length: 300 mm - 4880 mm (12" - 16')
- Min. - max. width: 25 mm - 1300 mm (1" - 51”)
- Min. - max. thickness: 3 mm - 90 mm (1/8" - 3-1/2")
- Speeds:
- Mechanical speed: 2-6 m/min
- Avg. production speed: 4 m/min
- Connections:
- Voltage: 480 V / 3 Ph + Ground / 60 Hz
- Standard distribution system: TN-S
- Compressed air: 6 bars
- Thermal connection NOT required
- 3D UV DRYER MOD. POLIEDRA "SUPERCURE"
- The dryer, to be placed on crossbar or belt conveyor with modular hood made of anodized Al, is expressly studied for three-dimensional curing.
- The hinged covering allows an easy access to reflector and lamps.
- The POLIEDRA unit consists of:
- Mercury or gallium lamp, characteristic emission peak at 360 nm for mercury and 420 for gallium.
- Reflector in Al with interchangeable high-reflecting sheet.

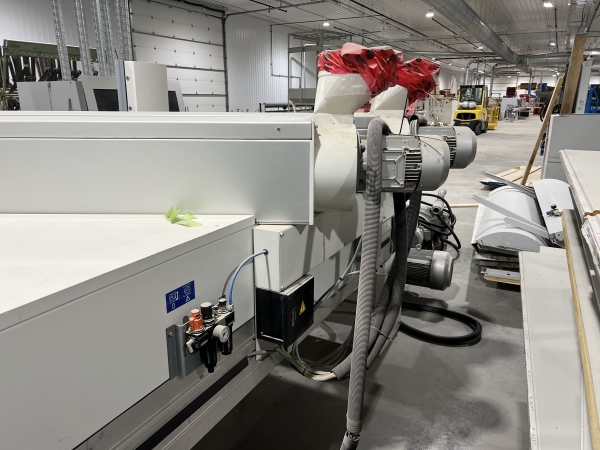

- Centrifugal fan for each UV unit.
- Compact electronic power supply unit for each UV unit with stepless power adjustment from 40 W/cm to 120 W/cm.

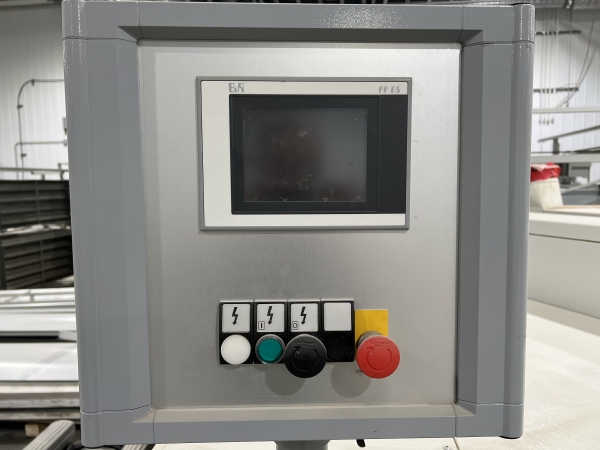

- Operator interface through PLC with Touch Panel for lamp control and display of working parameters.
- Swivelling system in case of conveyor stop.
- Swiveling control and safety devices for each UVM unit.
- Support unit, height 300 mm with lamp shade shielding and junction boxes (for high tension and auxiliary voltage).
- Skew positioning of UV unit on conveyor Machine executed according to the European norms, suitable to be used with non-flammable and non-explosive lacquers and to be positioned in a safe environment (not classified as an area with risk of explosion).
- ENERGY SAVING DEVICE Energy saving device, suitable for flat panels with minimum thickness of 3mm. It automatically switches the lamps at half power if, after a prearranged time, no pieces reach the conveyor. The device includes a photocell to be installed on the conveyor infeed.
- Note that items are located in Canada and will have associated duty/import fees
- Customer to provide customs broker information
