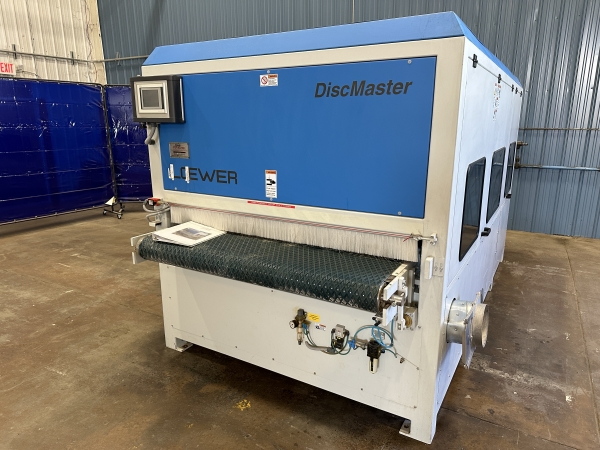

Loewer Model 3DBBP Discmaster Brush Sanding Machine
Machine Available
Stock #62181

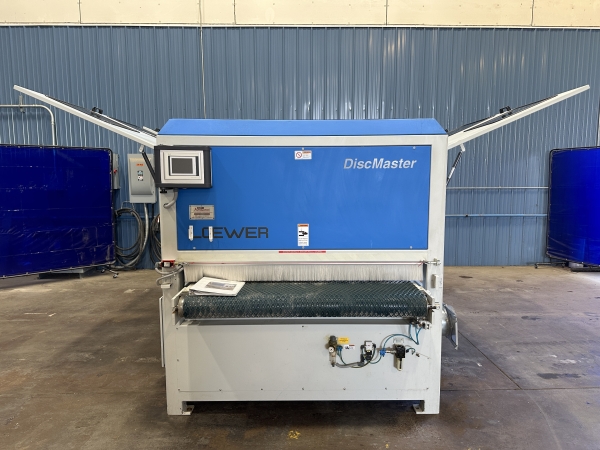

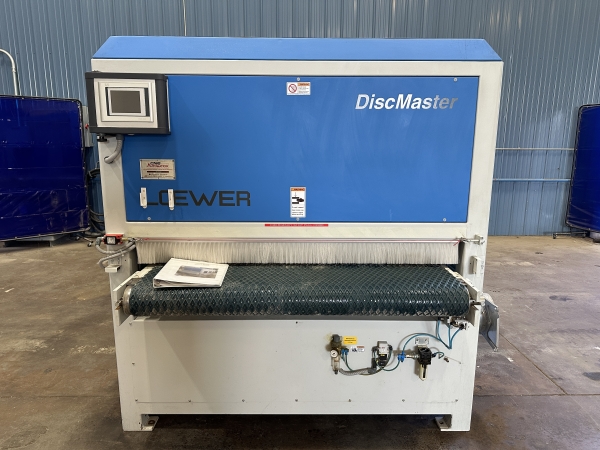

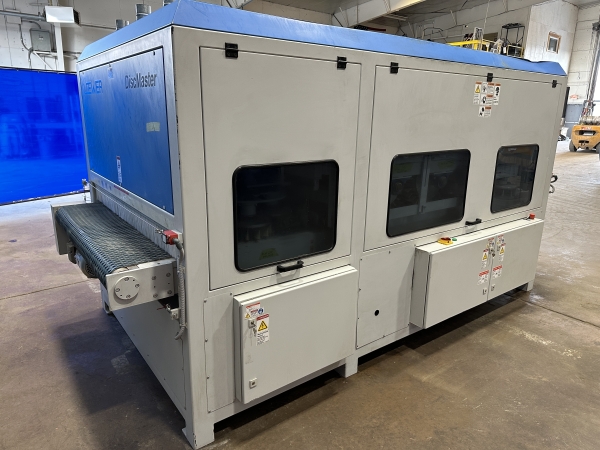

Used- Loewer Model 3DBBP Discmaster Brush Sanding Machine

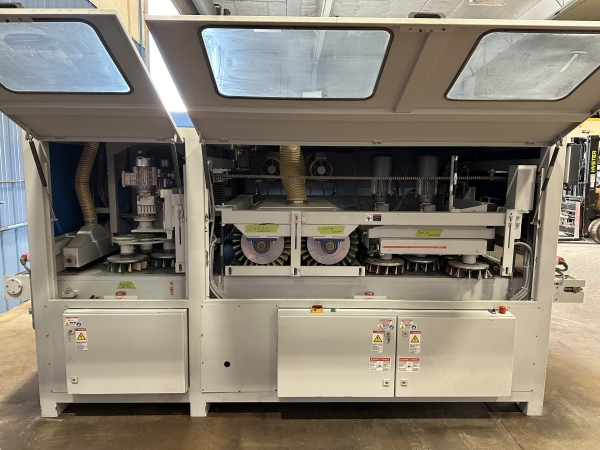

- Consistent brush sanding machine with 3 row disc station, followed by two counter rotating spiral brush rollers and a planetary station with 1350mm (53") working width.
- PLC control with programs / set-up storage, coloured touch panel for setting all machine parameters (storable programs, manual mode, display mode), connection point for external line control, easy to use

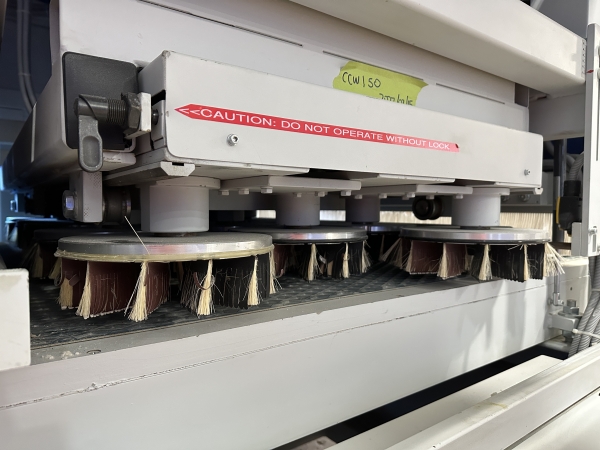

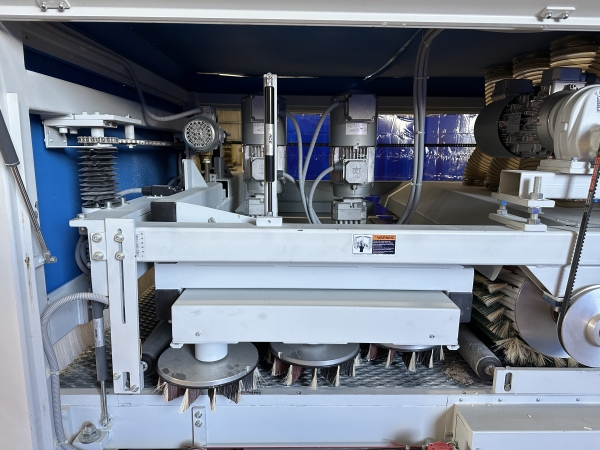

- DISCSTATION:
- 16 sanding discs 250mm diameter, each with 24 keyways 75mm long l Gear motor 2 x 1,5kW
- Variable disc speed 50rpm to 400rpm using frequency converter
- Excentric orbital disc movement
- Selection switch for direction of discs clockwise/counterclockwise (finer grit size/coarser grit size)
- Separate motorized height adjustment of the discstation (for running discs only or rollers only or everything together)

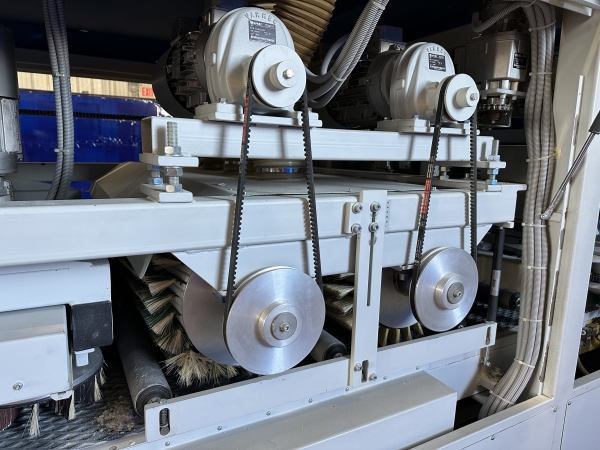

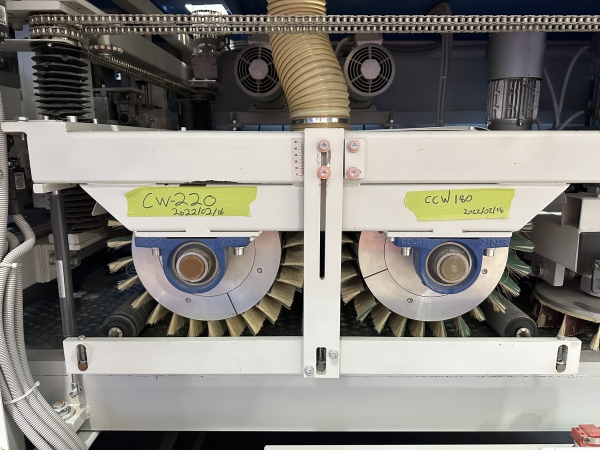

- ROTATING ROLLER SPINDLES:
- Two spindles 90° to the feed, spindle diameter 50mm, for max. brush diameter 400mm
- Strong gear motor each 2,2kW with external coolers
- Variable spindle speed 14rpm to 350rpm by frequency converter each spindle, separately adjustable two rotation directions cw/ccw both spindles

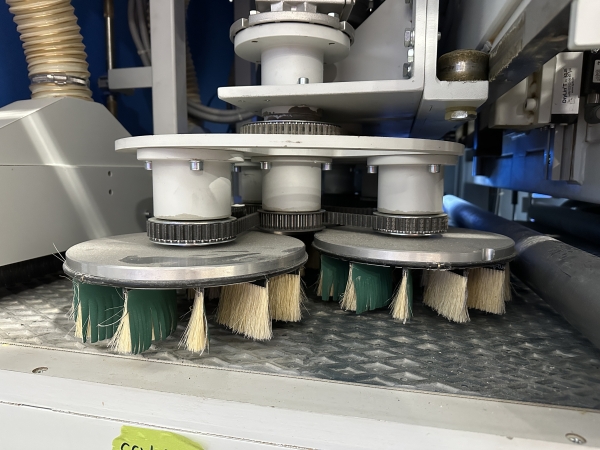

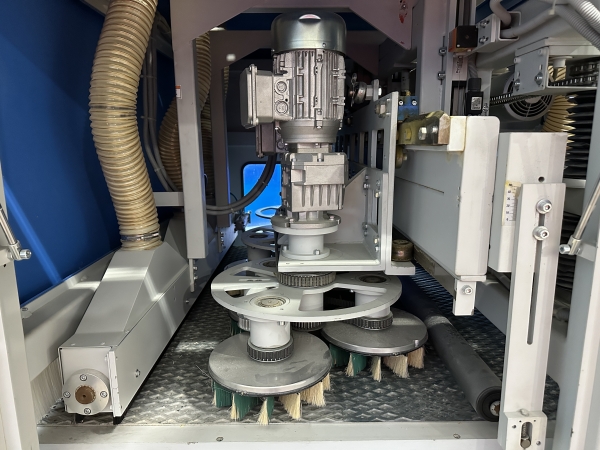

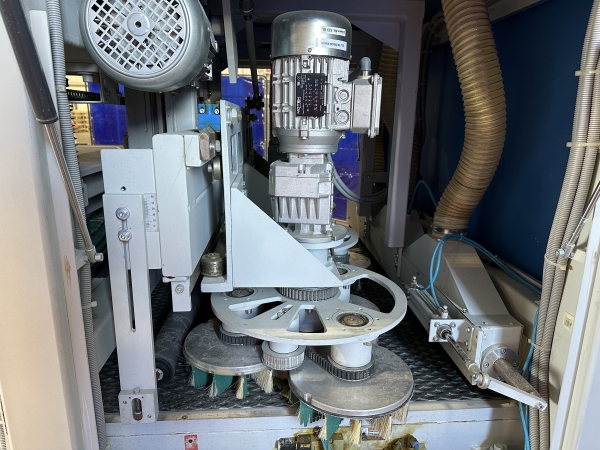

- PLANETARY STATION:
- Planetary station with 3 rotating heads, each head with 3 rotating discs
- Centre head rotating clockwise, outside heads rotating counter clockwise
- One 0,75kW gear motor with tooth belt drives for head rotation, variable head rotation by frequency converter 20rpm to 50rpm
- Three 0,75kW gear motors with tooth belt drives, each for 3 discs, variable disc rotation 50rpm to 400rpm by frequency converter
- 9 discs 250mm diameter with sanding strips
- Oscillation of complete planetary station 90° to the feed by gear motor 1.1kW with variable rpm by frequency converter 15rpm to 30rpm
- Motorized height adjustment of planetary station by gear motor 0,25kw
- Station can be pulled out sideways for easy change of abrasives
- MACHINE INFORMATION:

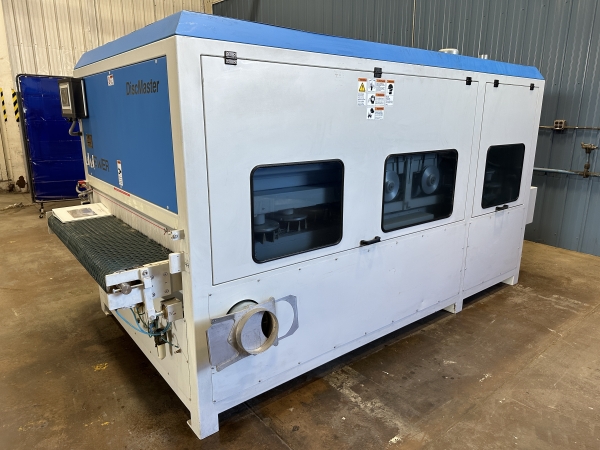

- Closed machine frame
- Spring-loaded hold down rollers for holding down narrow workpieces, preadjustable in height, linked to height adjustment of spindles

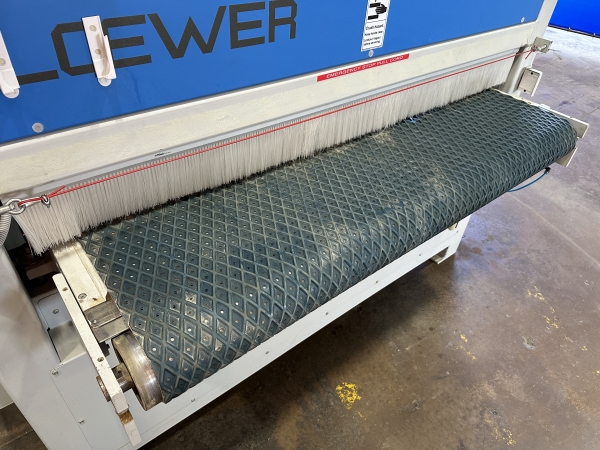

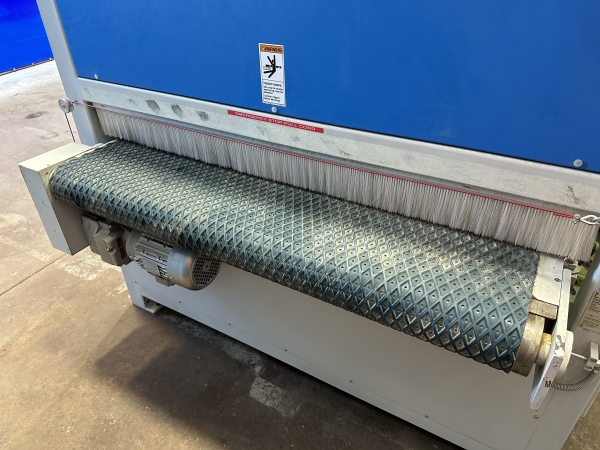

- Throughfeed by feed belt with variable speed 3 to 15m/min by gear motor 1,5kW
- Automatic centering of feed belt, pneumatically controlled
- Constant height of throughfeed, possibility to put machine in finishing line
- Maximum height of workpiece 100mm
- Motorized height adjustment of sanding units by gear motor 0,37kW

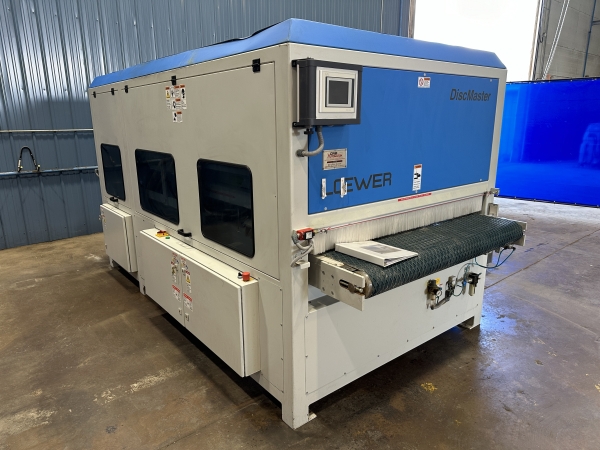

- Control panel at left side
- Emergency Off pull line at infeed and outfeed
- Infeed control with emergency stop if workpiece is too thick
- Emergency off by opening doors
- Switch manual/automatic (start machine from control panel or from finishing line)
- Dust extraction 4 x 140mm dia. for rollers
- Vacuum device for holding down short workpieces including connection for dust extraction 200mm dia., with strong 7,5kW ventilator
- Blowing device for cleaning workpiece, oscillating blowing device, sensor activated, including dust extraction cover with outlets 3 x 80mm dia., outside of main machine body, connected to main height adjustment

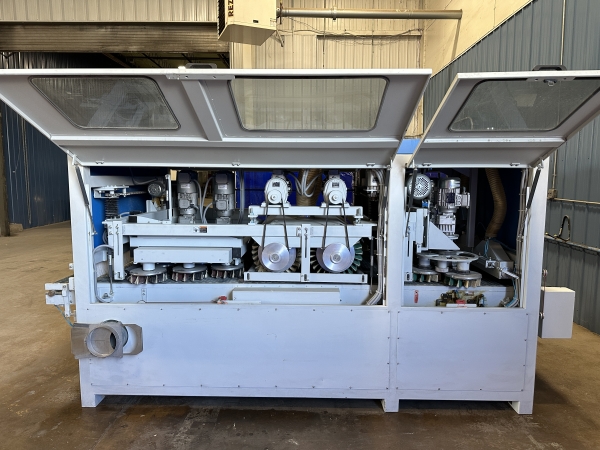

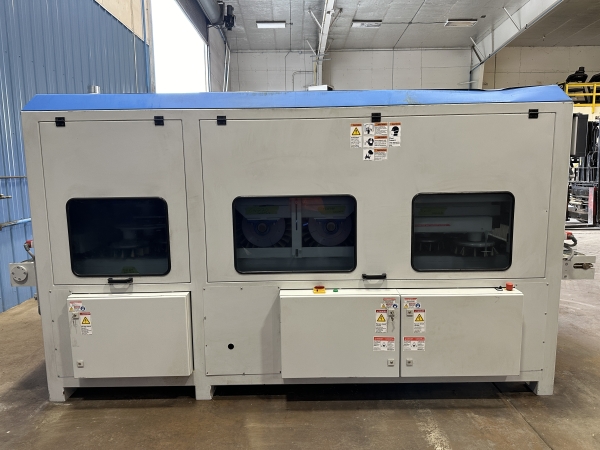

- 4 doors with emergency off door switches

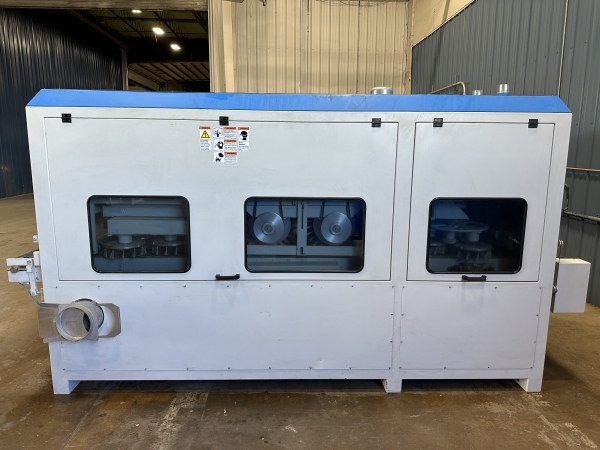

- Plexiglass windows on both sides
- Operating voltage 400 Volt, 60Hz, 3phase, air connection 68 bar
- Compressed air supply 1bar for cooling
- Electric cabinet box, with water and oil separator
- Length x width x height (mm): 3700x2150x1950
- Approx. weight 2800kg
- Includes sanding strips for discs, grooved sanding hubs with 285mm diameter and sanding strips for hubs (total diameter 400mm)
- This is part of a total plant liquidation, please call for details.
