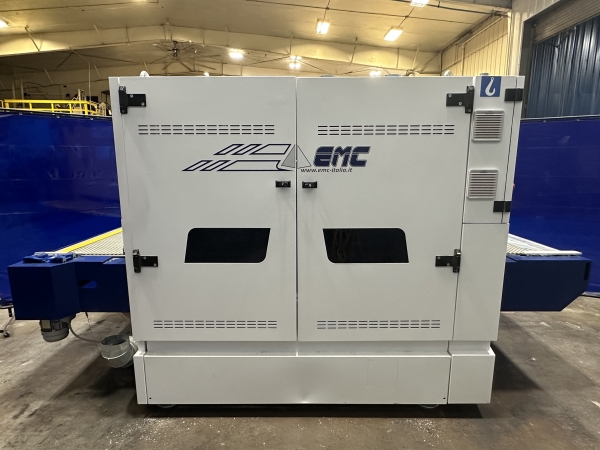

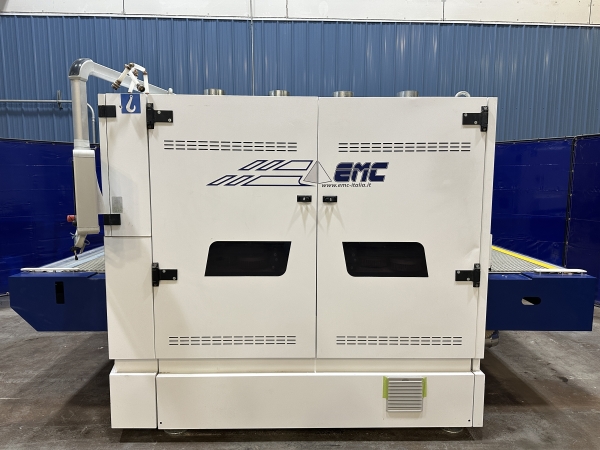

EMC Model 1350 HHH Giant Brush Sanding Machine - Never Used
Machine Available
Stock #62182

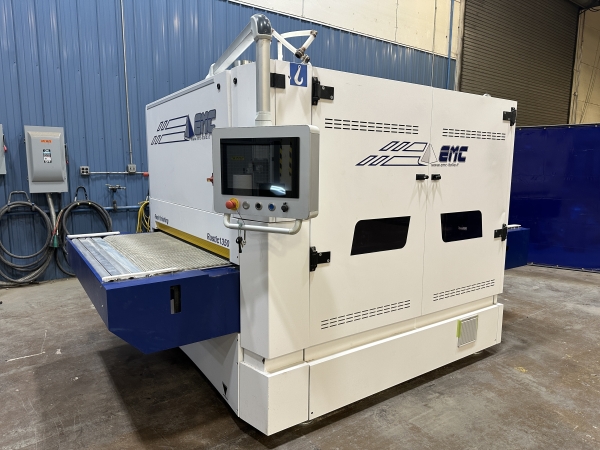

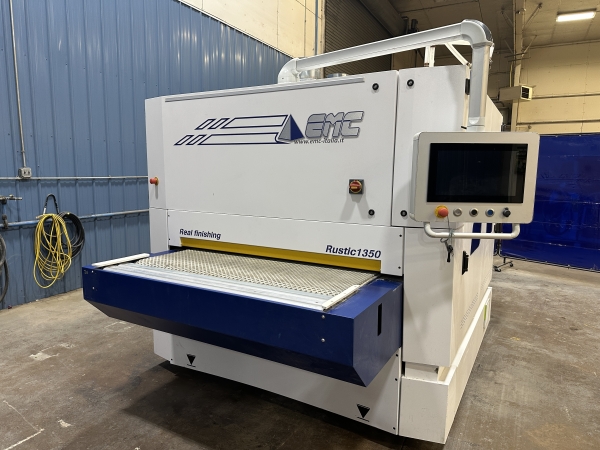

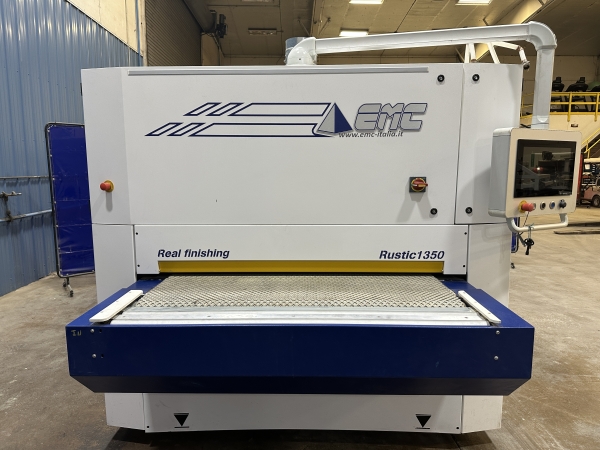

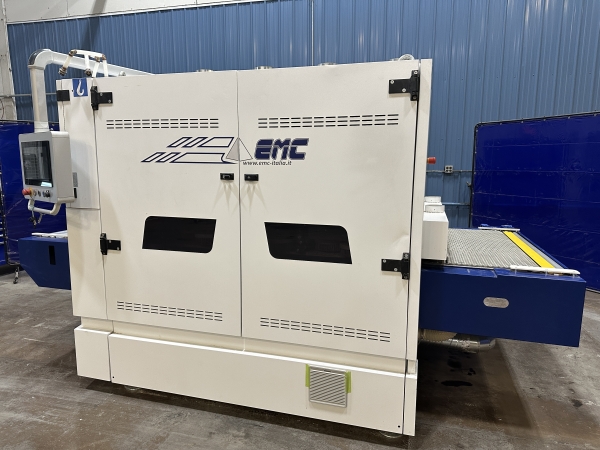

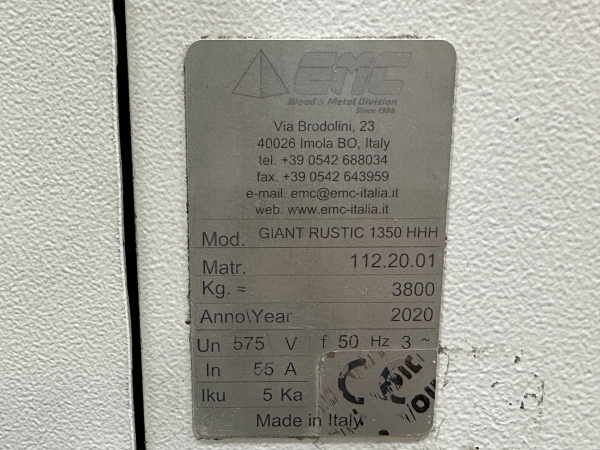

Used- EMC Model 1350 HHH Giant Brush Sanding Machine - Never Used
- Premium high volume sanding machine made in Italy. Installed and tested, but was never implemented into production.
- Working width: 1.35m
- Working thickness: 3mm to 150mm
- CE and CSA Standards
- Line machine: 900mm from floor.

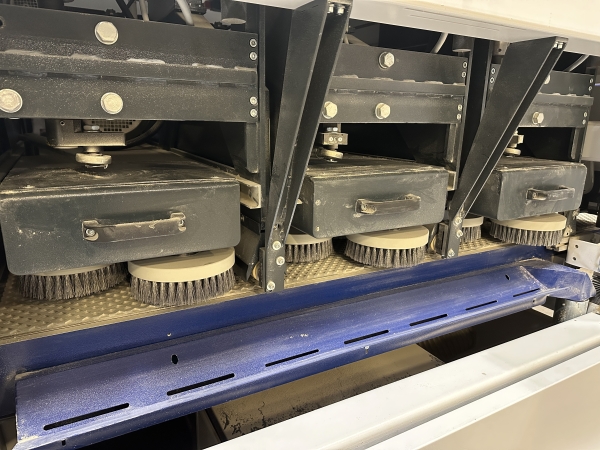

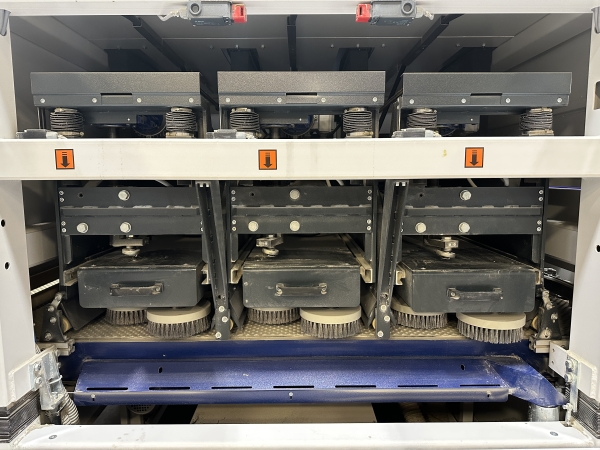

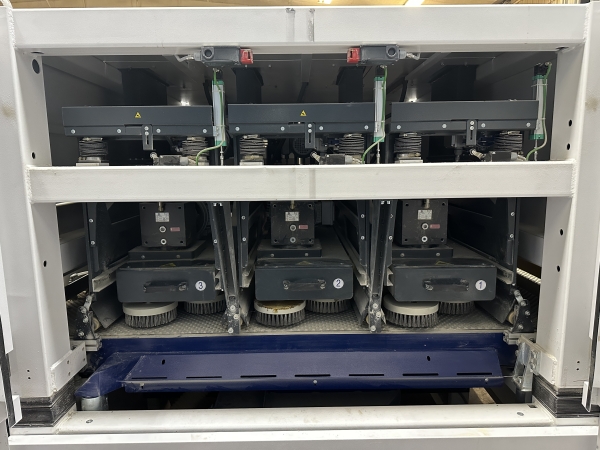

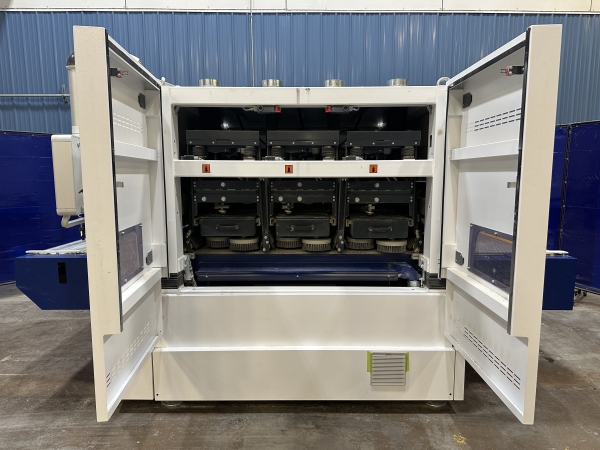

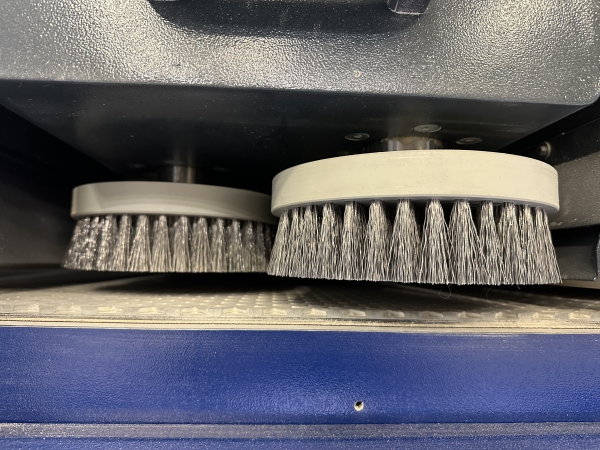

- 3 sanding brush groups 3 zones x 11 brush heads = 33 brush heads
- 200mm Disc diameter
- 3 x 15hp gear driven motors independently housed inside the machine’s basement.
- Welded monocoque type frame, made in heavy duty carbon steel construction for production setting.
- Inverter controlled oscillation 70 to 140mm
- Inverter controlled rotation speed 280 to 1100 rpm Inverter controlled feed belt for variable feed speeds 0.5 to 8 m/min
- Adjustable vertical pressure stroke 50mm

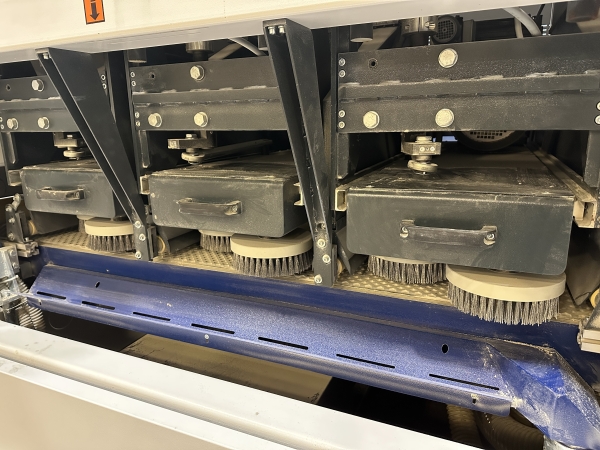

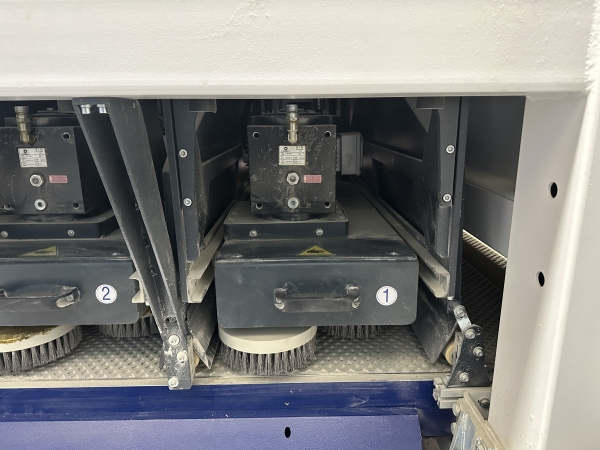

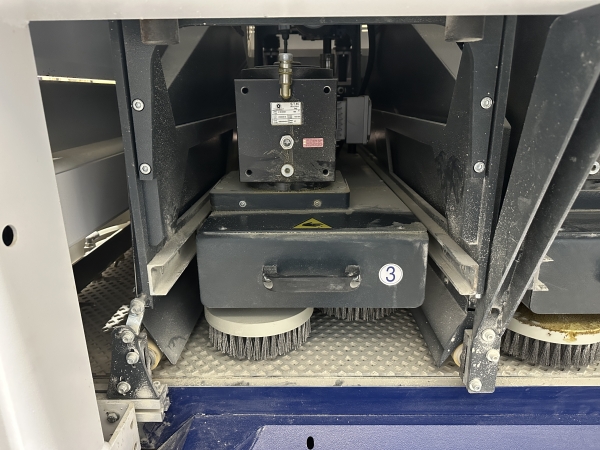

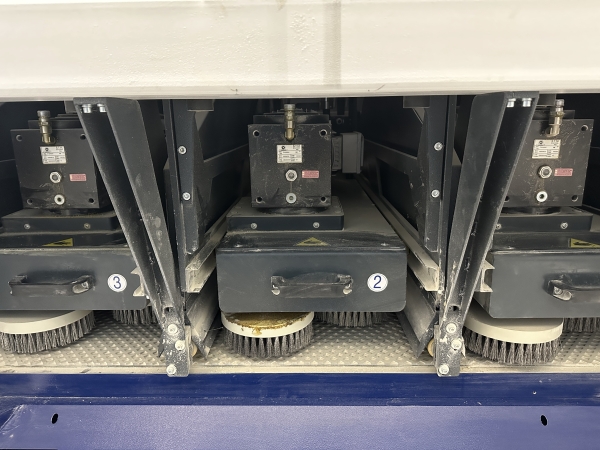

- Each zone of brushes have discs on 2 staggered rows (6 and 5)

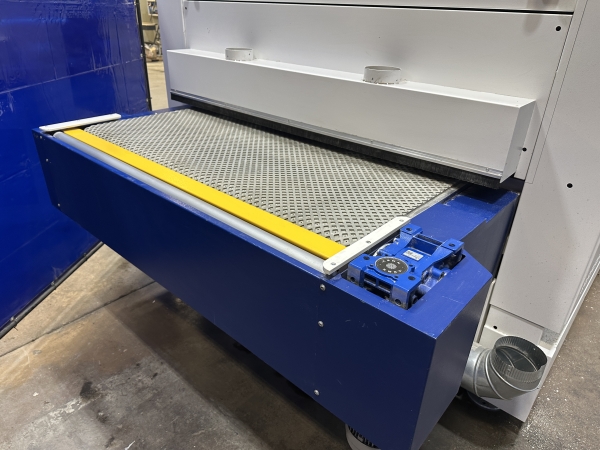

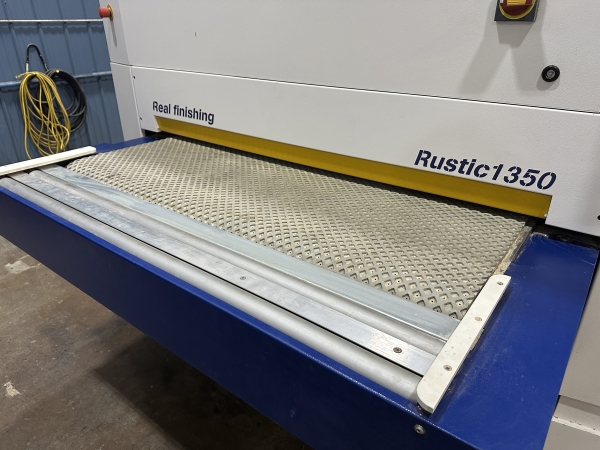

- Automatic feed belt centering device.
- Soundproof protection on all doors.
- Premium components - ball screws, rubber parts, electronics, pneumatics, etc.
- Quick tool changer locking device for all 33 spindles

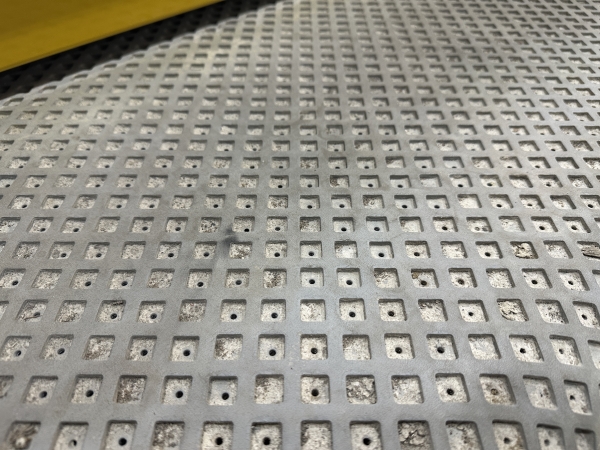

- Vacuum holding system (5.5hp) under machine with short pipes and no curves.
- Turbo blowers for piece and feed belt cleaning. Programmable and active by the working piece.

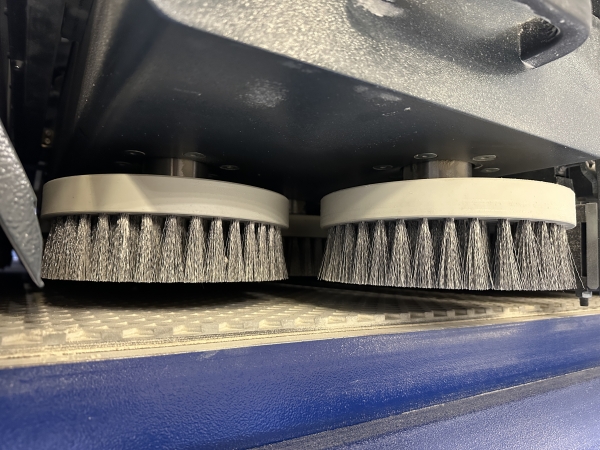

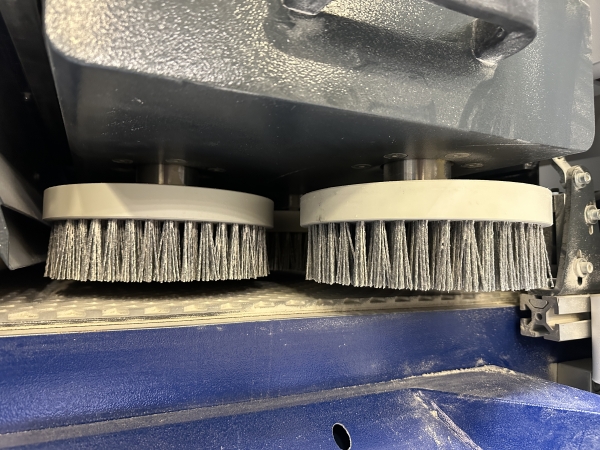

- Extra sanding brushes: two full sets of wire stock removal brushes for rustic finishing, one set of sanding heads for finish sanding, and one set of Tynex brushes for contoured / raised sanding.

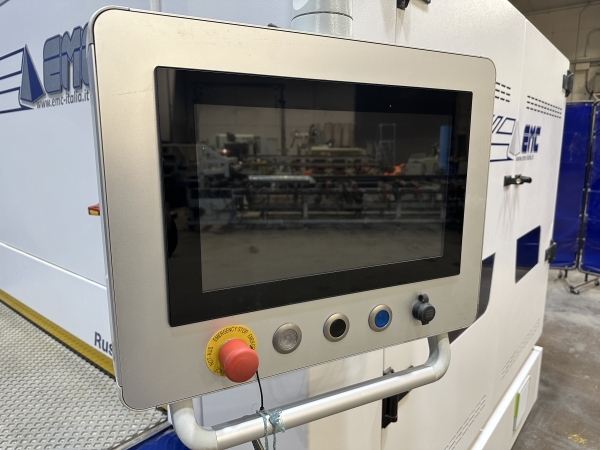

- All controlled and programmed by touch screen - fully computerized machine with customizable programs.
- This is part of a total plant liquidation, please call for details.
