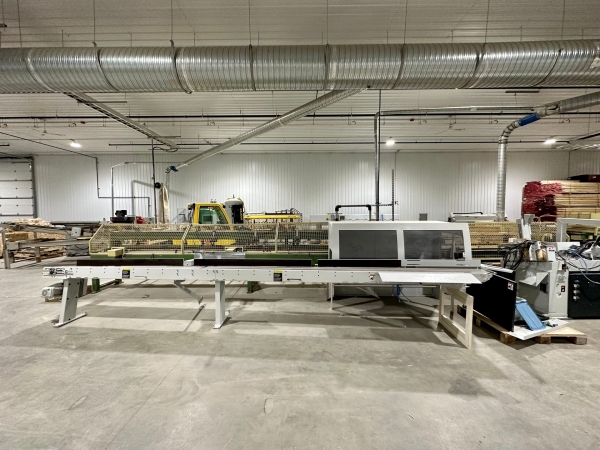

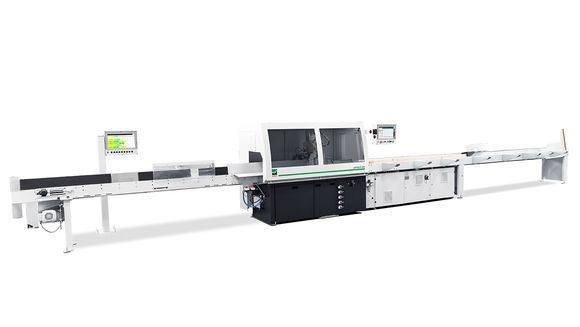

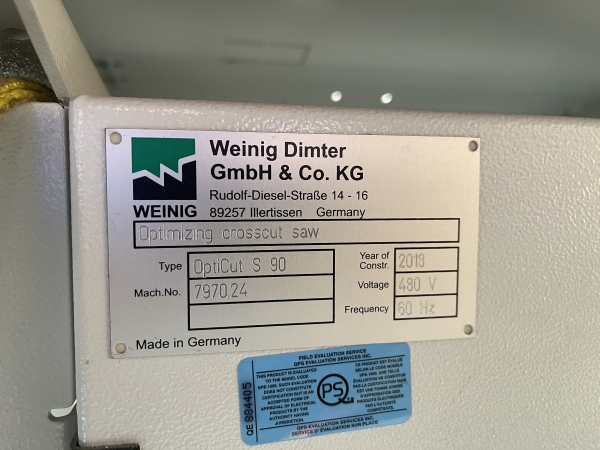

Weinig Model Opticut S90 Optimizing Crosscut Saw

• Weinig Model Opticus S90 Optimizing Crosscut Saw
• Saw motor: 7.5 kW (10HP)
• Pusher motor performance: 2.1 kW (3HP)
• Saw blade: 500 mm (19.68")
• Saw blade bore: 30 mm (1.18")
• Min. cut height: 10 mm (.39")
• Max. cut height: 100 mm (3.94")
• Min. cut width: 20 mm (.79)
• Max. cut width: 300 mm (11.81")
• Max. workpiece weight:150 kg (330 Lbs)
• Pusher forward stroke speed: 60 m/min. (196FPM)
• Pusher return stroke speed: 60 m/min. (196FPM)
• Working height: 1000 mm (39.37")
• Electrical connected load: approx. 14-18 kW
• Air consumption approx.: 225 NL/min.
• Operating pressure min: 6-8 bars
• Extraction speed: approx. 30 m/s (98 f/s)
• Extraction volume: approx. 1300 m3/h (765CFM)
• Dust extraction diameter: 125 mm (5")
• Noise emission at idling speed: approx. 85 dB(A)
• Current Voltage 480; 3PH
