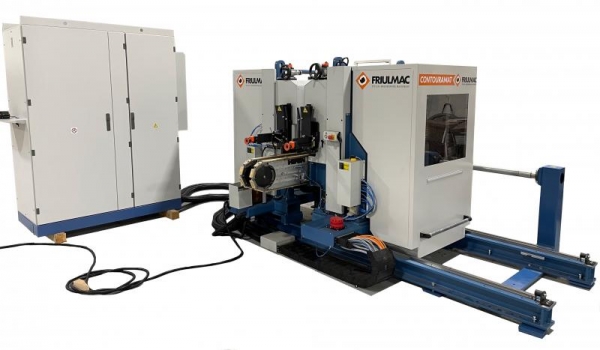

Friulmac Model Contouramat-HS 1.5 Automatic Double End Cut and Profiling Machine.
Machine Available
Stock #101304N
New- Friulmac Model Contouramat HS 1.5 Automatic Double End Cut & Profiling Machine.
- Max. Capacity: 40 Pieces/Minute, Depending on Element Measures, Extra Material, Tooling, Etc.
- Working Length: 5” – 59.05”
- Working Width: 1.96” – 7.87”
- Working Thickness: 0.47” – 1.37”
- Moveable Shoulder Open/Close via Rack & Pinion with Inverter-Controlled Electric Motor
- Magnetic Strip w/ Sensor to Indicate Position of Moveable Shoulder
- Vertical Hopper/Magazine
- Precision Feed Chains with Cast Steel Components
- Non-Marking Top Pressure Feed Belts
- Operator Control Offers Automatic Adjustment of Machine Opening, Feed Speed, In/Out & Up/Down Working Unit Positions, and On/Off of Working Units
- Variable Speed Feed from 6 – 25 m/min
- Station #1: Left & Right Jump Profiling Units, 40mm Diameter, 6kW Motor Power
- Station #2: Left & Right Profiling Units, 40mm Diameter, 6kW Motor Power
- Working Units Accept HSK63F Tool Holders
