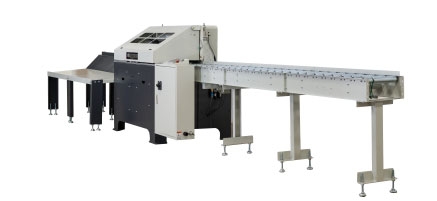

Northtech NT-EM300 Linear End-Matcher
Machine Available
Stock #104269N
New- Dual 10HP spindle motors 460V, 3PH, 60 HZ
- 12 CFM @ 90 PSI required
- (1) 6” dust ports requiring 981 CFM @ point of extraction
- Width: 40mm - 300mm (1-1/2” - 12”
- Thickness: 8mm - 35mm (3/8” - 1-3/8”)
- Length: 280mm (11”) - unlimited
- Maximum Weight of Lumber: 32 lbs
- 40mm spindles inside precision bearing
- 1HP PLC controlled feed system manages spindles position, part location and both infeed and outfeed holddowns
- 1/2HP variable feed, 90-300 FPM
- Pancake style T & G heads, utilize carbide insert replacements for exacting repeatability (Included)
- Dual lineal shaft guides for head movement
- Touchscreen interface with production tracking
- Chrome plated table
- 134” Powered infeed and 88” outfeed
- Infeed and outfeed with dual action clamping system with (5) powered urethane rollers
- (3) Spring loaded bed rollers
- FLR included
- Fully automatic cycle operation
- Processing speed: 75’ / minute *Based on 6’ material length
