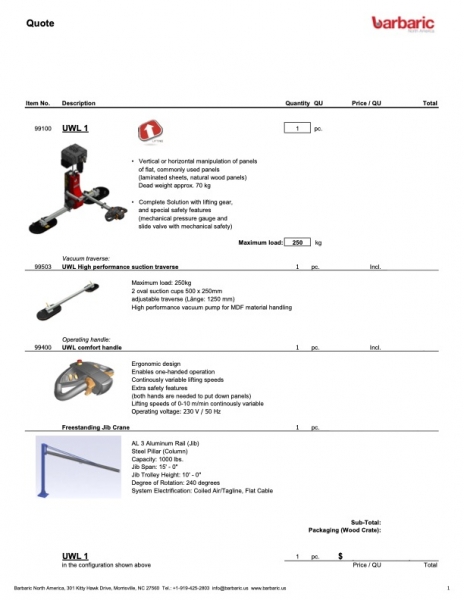

Barbaric Model UWL 1 Vacuum Lift (2022 - Never Used)

• Barbaric Model UWL 1 Vacuum Lift (New in 2022 - Never Used)

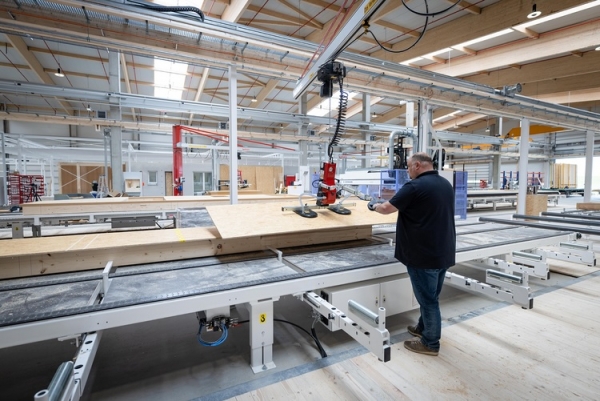

• Vertical or horizontal manipulation of panels of flat, commonly used panels (laminated sheets, natural wood panels)
• Complete Solution with lifting gear, and special safety features (mechanical pressure gauge and slide valve with mechanical safety)
• 2 oval suction cups 500 x 250mm
• adjustable traverse (Länge: 1250 mm)
• High performance vacuum pump for MDF material handling
• UWL comfort handle
• Ergonomic design
• Enables one-handed operation
• Continously variable lifting speeds
• Extra safety features
• (both hands are needed to put down panels)
• Lifting speeds of 0-10 m/min continously variable
• Operating voltage: 230 V / 50 Hz
• Freestanding Jib Crane
• AL 3 Aluminum Rail (Jib)
• Steel Pillar (Column)
• Capacity: 1000 lbs.
• Jib Span: 15' - 0"
• Jib Trolley Height: 10' - 0"
• Degree of Rotation: 240 degrees
• System Electrification: Coiled Air/Tagline, Flat Cable
