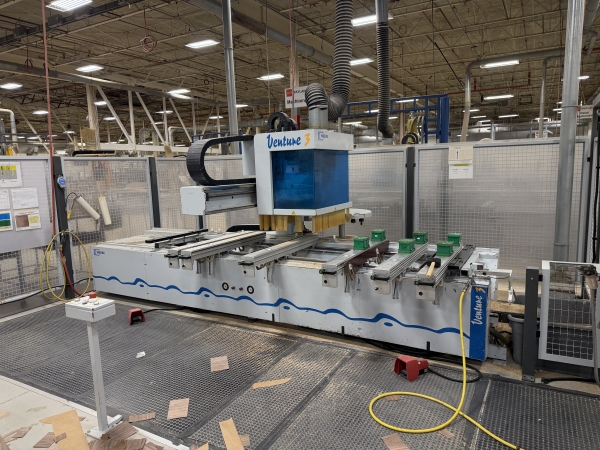

Homag Model BMG311 Venture316L 5-Axis CNC Machining Center
Machine Available
Stock #57235
Used- Homag BMG 311 Venture 316L 5-Axis CNC Machining Center
- 13.4 HP Liquid-Cooled 5-Axis Router Spindle
- Router Spindle Accepts HSK-63F Tool Holders
- 14-Position Rotary Carousel Style Automatic Tool-Changer
- 16-Spindle Boring Unit (7 x 6 Verticle Drills and 2 x 2 Horizontal Drills)
- Eight Moveable Fixture Rails, 1330mm Each in Length
- Working Area: 1340mm x 4200mm, Suitable for Pendulum Processing
- Maximum Part Height to Top of Standard Vacuum Pods: 6.7” (170mm)
- Two Left & Two Right Lateral Locating Pop-up Pins
- Two Vacuum Units
- Front & Rear Locating Pop-up Pins
- LED Position Indication System for Vacuum Rails
- Homag PowerTouch User-Interface
- WoodWOP 7
- Chip Conveyor
- 480v, 3ph
- Year: 2015
- Serial #: 0-201-09-9401
