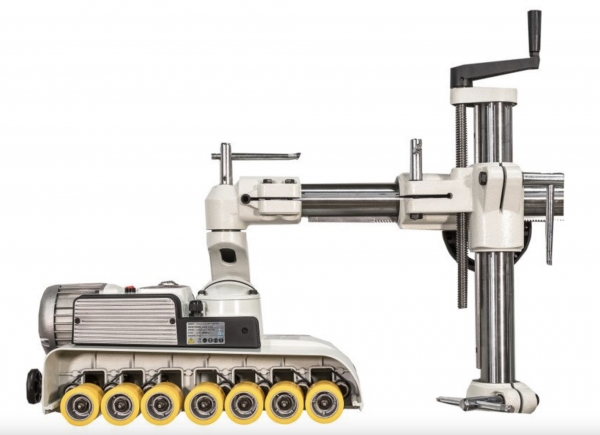

Northtech Model NT-SF70 Stock Feeder 7 Rollers with Universal Stand
Machine Available
Stock #27610N
New- NT-SF70 STOCK FEEDER 7 ROLLERS WITH UNIVERSAL STAND
- Northtech Stock Feeders are some of the strongest and longest lasting feeders available. Stock feeders, sometimes called power feeders, are typically used as an overhead drive system to power product across a surface or roll case. In many applications, it can also be used on the edge of materials. While most commonly paired with a process such as profiling, sawing or shaping, o!en the stock feeder is merely used as a drive to move or advance materials. The NT SF70 utilizes a low profile (7) spring loaded roller design, making it ideal for smaller part feeding. This machine comes standard with a universal stand that has rack and pinon positioning, head pivoting rotation, and a cast iron locking system. The 2/3HP forward/reversing feed with infinitely variable transmission speed allows for precise feed rate control. The non marking rollers make it ideal for most any type of material.
- MACHINE HP: 1/2 HP
- REVERSIBLE MOTOR: Yes
- VOLTAGE, FREQUENCY: 230/460 Volt 60Hz
- PHASE: 3 Phase
- AMP REQUIREMENT: .7/1.4 Amps
- FEED SYSTEM: (7) Feed Wheels
- DRIVE SYSTEM: Geared Chain Drive
- FEED SPEED RANGE: 8-85 FPM
- VARIABLE FEED SPEED: Inverter Controlled
- REVERSIBLE FEED: Yes
- TOTAL MACHINE HP: 1/2 HP
- APPROVED ELECTRICAL PARTS: CE Approved Components DUAL VOLTAGE MOTORS: 230/460 Volt
- CONTROL VOLTAGE: Line Voltage
- MIN. WORKING LENGTH: 2-3/4''
- MAX. WORKING WIDTH: 17'' Horizontal Travel
- MAX. WORKING THICKNESS: 7-1/8'' Vertical Travel
- DIGITAL DISPLAY: Feed Speed
- HOLD DOWN STYLE: (7) Rubber Rollers
- FRAME CONSTRUCTION: Cast Aluminum
- DECIBEL RATING: 52 dB
- NET WEIGHT: 117 Lbs.
- GROSS WEIGHT: 124 Lbs.
- MACHINE DIMENSIONS: Feeder 20'' x 11'' x 8'' Stand 32'' x 10'' x 30''
- PACKAGING DIMENSIONS: Feeder 25'' x 14'' x 12'' 56 Lbs. Stand 30'' x 13'' x 12'' 68 Lbs.
