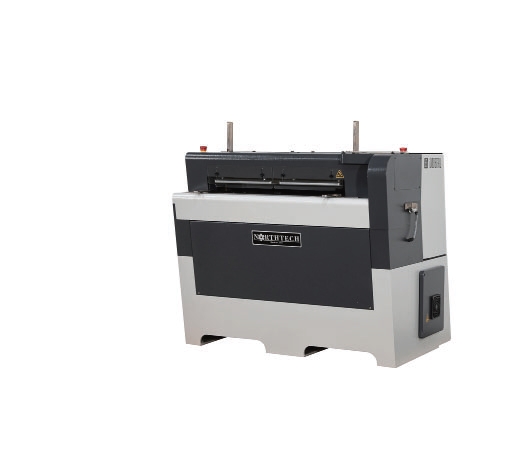

Northtech Model iDovetail30 CNC Dovetailer
Machine Available
Stock #21829N
New- Northtech Model iDovetail30 CNC Dovetailer
- 4.2kw (6HP) powered spindle
- Programmable spindle controls with a maximum 18,000RPM
- Maximum processing width: 750mm (30")
- Tenon dimensions: See following profile mode specific details
- Workable part dimensions: See following profile mode specific details
- Spindle vertical adjustment: 100mm (4") servo positioned
- Usable bits: See following detail
- Recommend working pneumatics: 90PSI on a 3/8" air line
- Dust port: (1) 4" requiring 436CFM @ point of extraction
- 195in/min dovetail bit acceleration
- Bit sharpening compensation adjustments via touchscreen interface
- Automatic bit recognition
- Horizontal & Vertical pneumatic clamping allows individual part release and mitered profiles
- Easy to understand error detection and display
